Answer
Jun 02, 2025 - 05:46 AM
Thanks for reaching out!

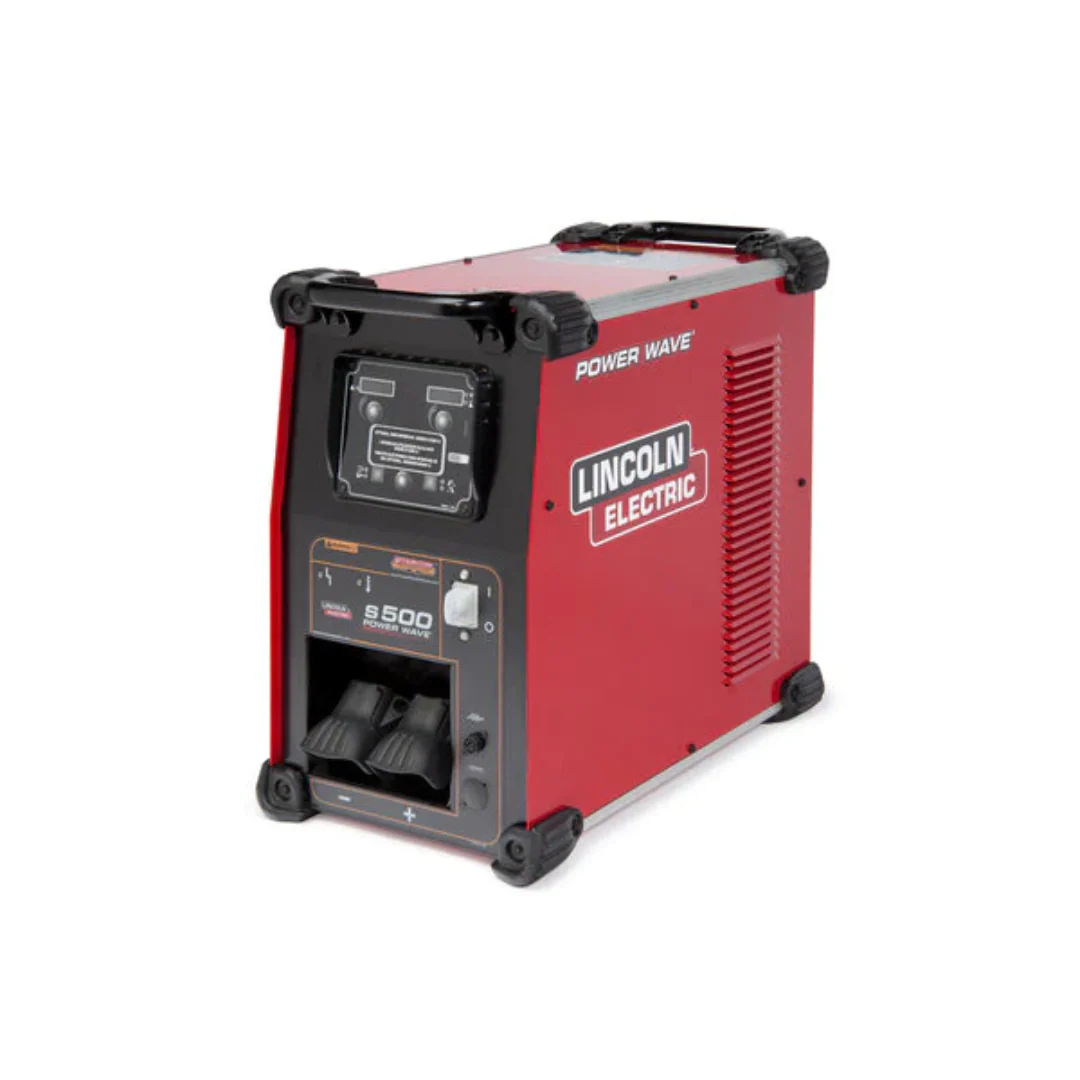

For your Power Wave® S500 MIG welding power supply, here’s how feedback cabling works depending on your setup:
✅ Using a Lincoln Digital Wire Feeder (e.g., Power Feed® 84):
-
Use the ArcLink™ control cable between the S500 and the wire feeder.
-
This single cable provides:
-
Trigger control
-
Weld commands
-
Voltage feedback
-
Communication for process settings
-
-
No extra feedback or voltage sensing cable is needed in this setup.
🧰 Using Long Weld Cables or Remote Setup?
-
If the wire feeder is far from the weld, or if you're not using ArcLink™, you may need a Work Voltage Sense Lead Kit (e.g., K940-25, K1811-50, or K1811-100).
-
This lead connects from the workpiece back to the S500 to ensure the machine measures actual voltage at the arc, not just at the machine terminal.
✅ Quick Advice:
-
ArcLink feeder, mounted near weld? 👉 No extra cabling needed.
-
Remote feeder or analog setup? 👉 Use a voltage sense lead for accurate readings.
