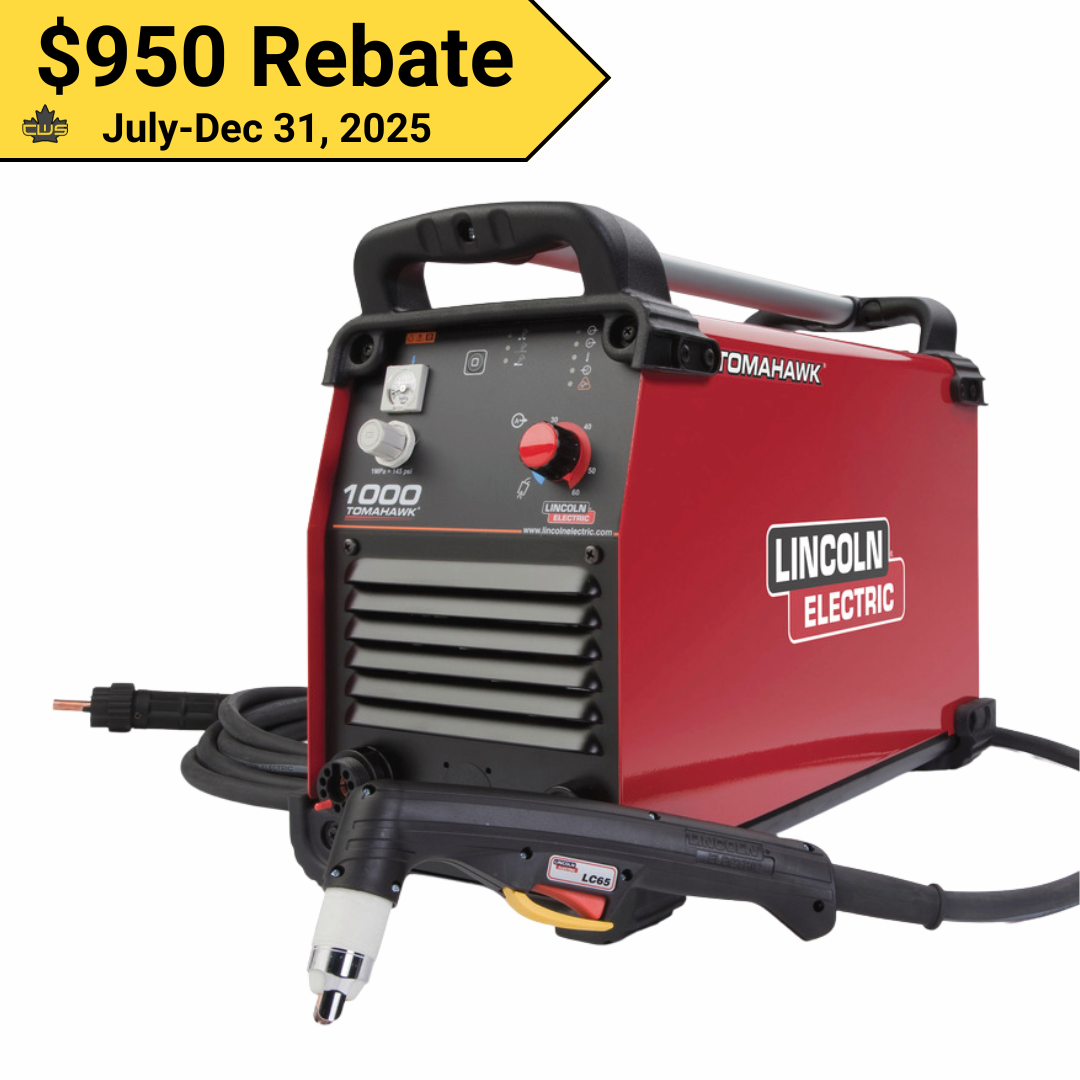

Lincoln Electric Tomahawk 1000

60 Amp Plasma Cutter


The Tomahawk 1000 plasma cutting system is portable enough to use on the jobsite and rugged enough to use on up to one inch material in a production environment. Hook up the compressed air, grab the torch and start cutting.

Features:

  • PowerConnect® Technology - Automatically senses and adjusts to input power for a range of 200 up to 600 volts, single or three phase, 50 or 60 hertz. Cutting output remains constant throughout the entire input voltage range.
  • Continuous Output Control - Focus the arc for different material thicknesses.
  • Touch Start™ System - Reliable plasma arc initiation without high frequency.
  • Front Panel Purge Control - Makes it easy to set the air flow rate without initiating the plasma arc.
  • Cool Operation, Long Consumable Life- New electrode and nozzle design save you money in the long run
  • Added Safety - Our Parts-in-Place™ - System detects correct installation of consumables and torch.
  • Engine Drive Compatible - Select a Lincoln Electric Ranger® or Vantage® to power your Tomahawk® in remote locations.
  • Optional Machine Torch - Available for use on CNC plasma cutting table


Technical Specifications

Input Power
208/230V-575V 50/60Hz, Single or Three Phase
Output Power 20-60A
Duty Cycle
100% 40A@96V
50% 60A@104V
Compressed Air Consumption
87-109 psi @ 275 SCFH
Torch & Leads
LC65 hand torch and 25 ft. (8 m) cable



What's Included

  • LC65 hand torch w/ 25 ft. (7.5 m) cable
  • Air regulator and pressure gauge
  • Internal water separator
  • Work clamp and cable
  • Spare consumables
  • Input power cord
  • 3 Year Warranty on Power Source, 1 Year Warranty on Torch

Product Data Sheet
