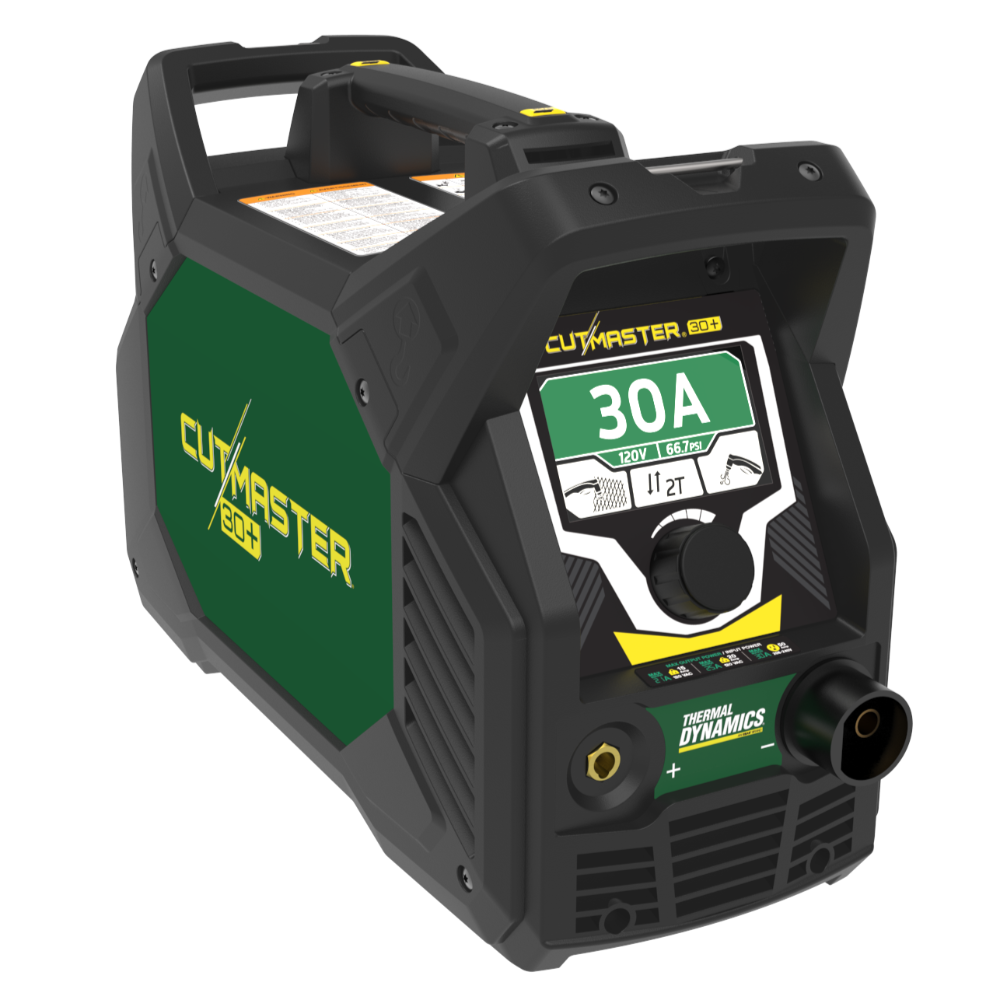

Thermal Dynamics TD CUTMASTER 30+ Plasma Cutting System



Save big with this lightly used demo model. Low hours machine with full warranty.


Cut up to 3/8", Sever up to 5/8"

Cutmaster 30+ is the perfect combination of power and portability for hand-held plasma cutting machine. Plus means more, so we’ve added a user-friendly 4.3 in. TFT LCD screen and upgraded features that give you even more control and flexibility to master any cut up to 10 mm (3/8 in.). Together with the SL60 1Torch, it all adds up to the total plasma cutting package.

Tackles Cuts in any Terrain with a Compact Design and Industrial Strength Housing

  • Pierce and cut capacity of 3/8 in. and a maximum edge cut capacity of 5/8 in.
  • 40% duty cycle at 30 A and 100% duty cycle at 20 A
  • Runs on both 110 and 240 V input with auto-voltage detection
  • Lightweight design with three handles for easy transportation
  • Durable, weather-protected IP23S housing

Dominate any Plasma Cutting Job with Built-In Functionality and Flexibility

  • Switch from normal plate to grate cutting mode to extend consumable life when working with expanded metal
  • Equipped with SL60TM 1Torch® and a full range of consumables for both shielded and unshielded cutting and gouging

Mastering Cuts is Simple with the User Friendly TFT LCD Display

  • Bright 4.3 in. screen is optimal for displaying settings and making adjustments
  • Adjustable 2T/4T trigger lock to achieve long cuts by hand or with MechPak
  • Automatic air pressure recognition and purging for proper cutting pressure and extended consumable life
  • Comes standard with long-lasting Cutmaster Black Series electrodes

    Specifications
    Recommended Generator 4.5 kW
    Input Ratings 110 – 240 VAC, 1 ph, 50/60 Hz
    Duty Cycle 30 A @ 40 % duty cycle
    20 A @ 100 % duty cycle
    Operating Temperature -10 – 50 °C ( 14 – 122 °F )
    Gas Requirements Compressed Air
    Gas Pressure 6.2–8.6 bar ( 90–125 psi )
    Gas Flow 80–150 l/min ( 170–350 cfh )
    Severs Manual 16 mm ( 5/8 in. )
    Pierces Up to 10 mm ( 3/8 in. )
    Enclosure Class IP23S
    Dimensions, L x W x H 465 x 200 x 315 mm ( 18.3 x 7.9 x 12.4 in. )
    Weight 11 kg ( 24.25 lbs )
    Recommended Cut Up to 10 mm ( 3/8 in. )

    Download Tech Sheet        Link To SL60 Torch Consumables

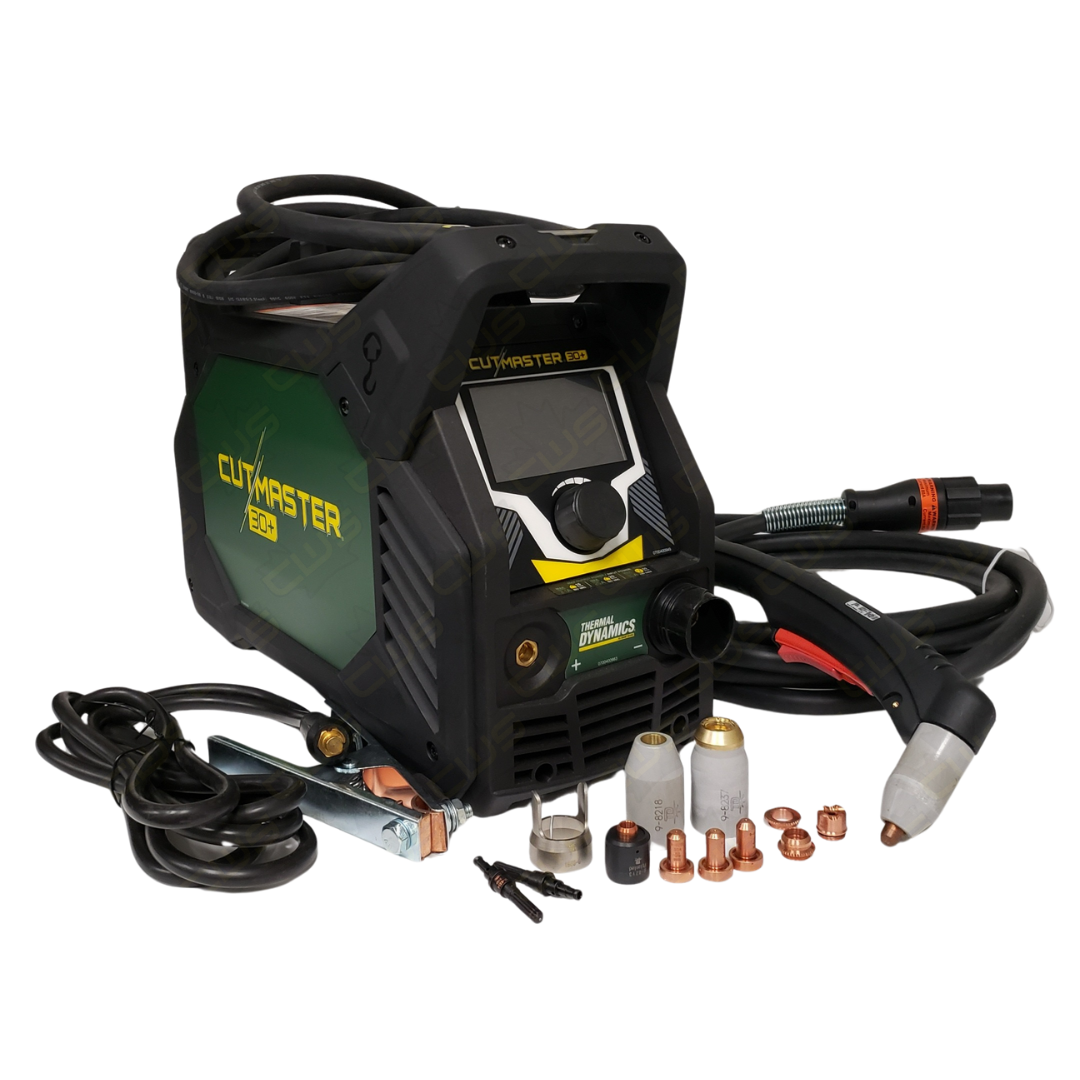

    What's Included

    • Cutmaster 30+ Plasma System (30 Amp)
    • SL60 Torch, 75 Deg Head, 10 ft. Lead
    • Ground Lead w/ Quick Disconnect
    • 1/4"NPT Fitting
    • 230V-120V Power Adapter
