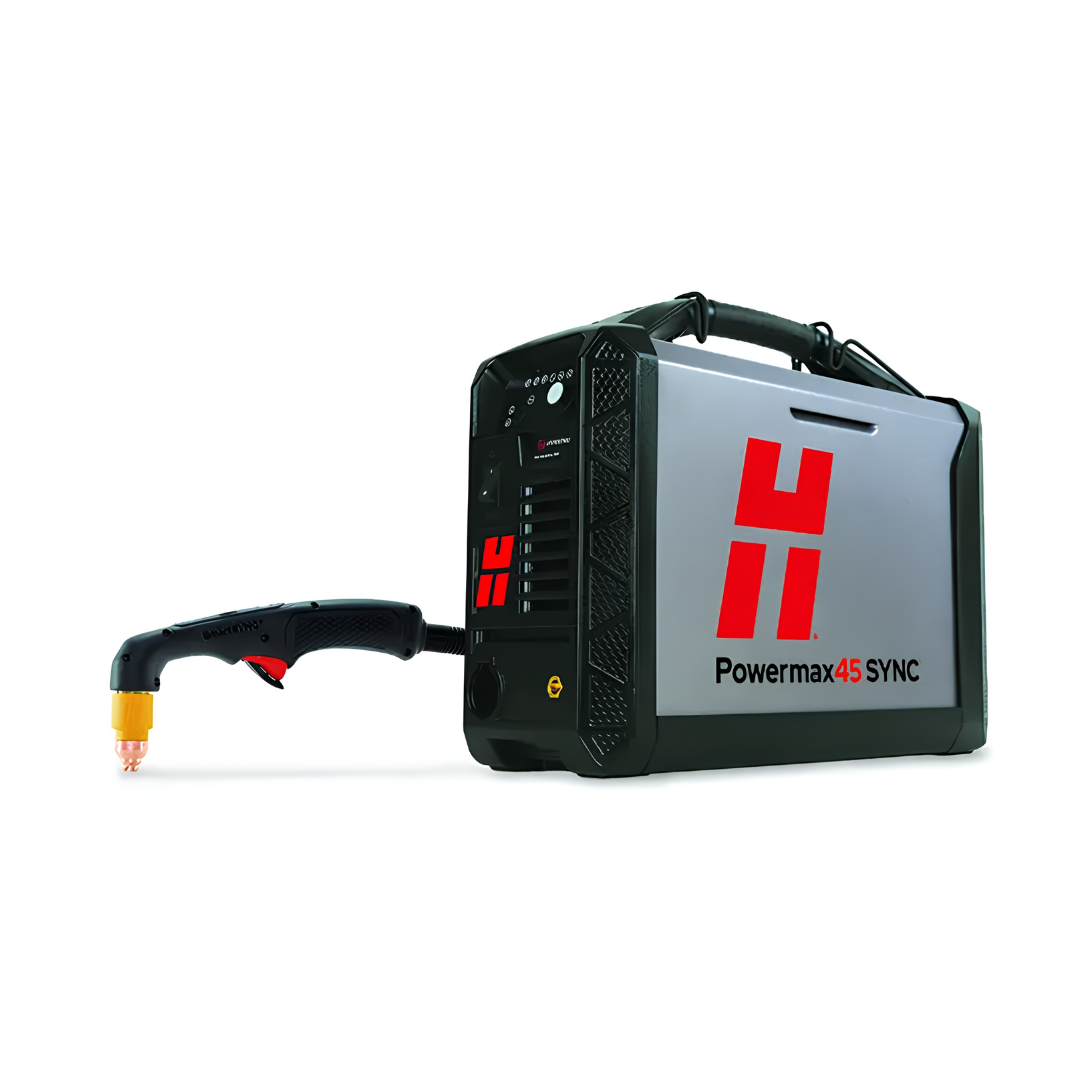

For metal workers who want the most versatile system available to gouge, cut, and mark, Powermax45 SYNC delivers the best return on investment with a patented single-piece cartridge, up to 5x longer consumable life, and greater cutting power than higher-amperage competitors.
| Specification | Details |
| Recommended Cut Capacity | 16 mm (5/8″) at 500 mm/min (20 ipm) |
| Severance Cut Capacity | 29 mm (1-1/8″) at 125 mm/min (5 ipm) |
| Pierce Capacity | 12 mm (1/2″) |
| Gouge Capacity (Removal Rate) | 3.4 kg (7.5 lbs.) per hour |
| Input Voltages | 200–240 V, 1-PH (CSA) / 480 V, 3-PH |
| Output Current | 9–45 A |
| Dimensions (with handles) | 442 mm D x 173 mm W x 357 mm H (17.4″ x 6.8″ x 14.1″) |
| Weight (with 6.1 m / 20′ torch) | 14 kg (31 lbs.) (CSA) / 15 kg (33 lbs.) (CE/CCC) |
| Required Gas | Air (clean, dry, and oil-free), Nitrogen, or F5 |
| Warranty | Power supply: 6-year; Torch: 1-year |
