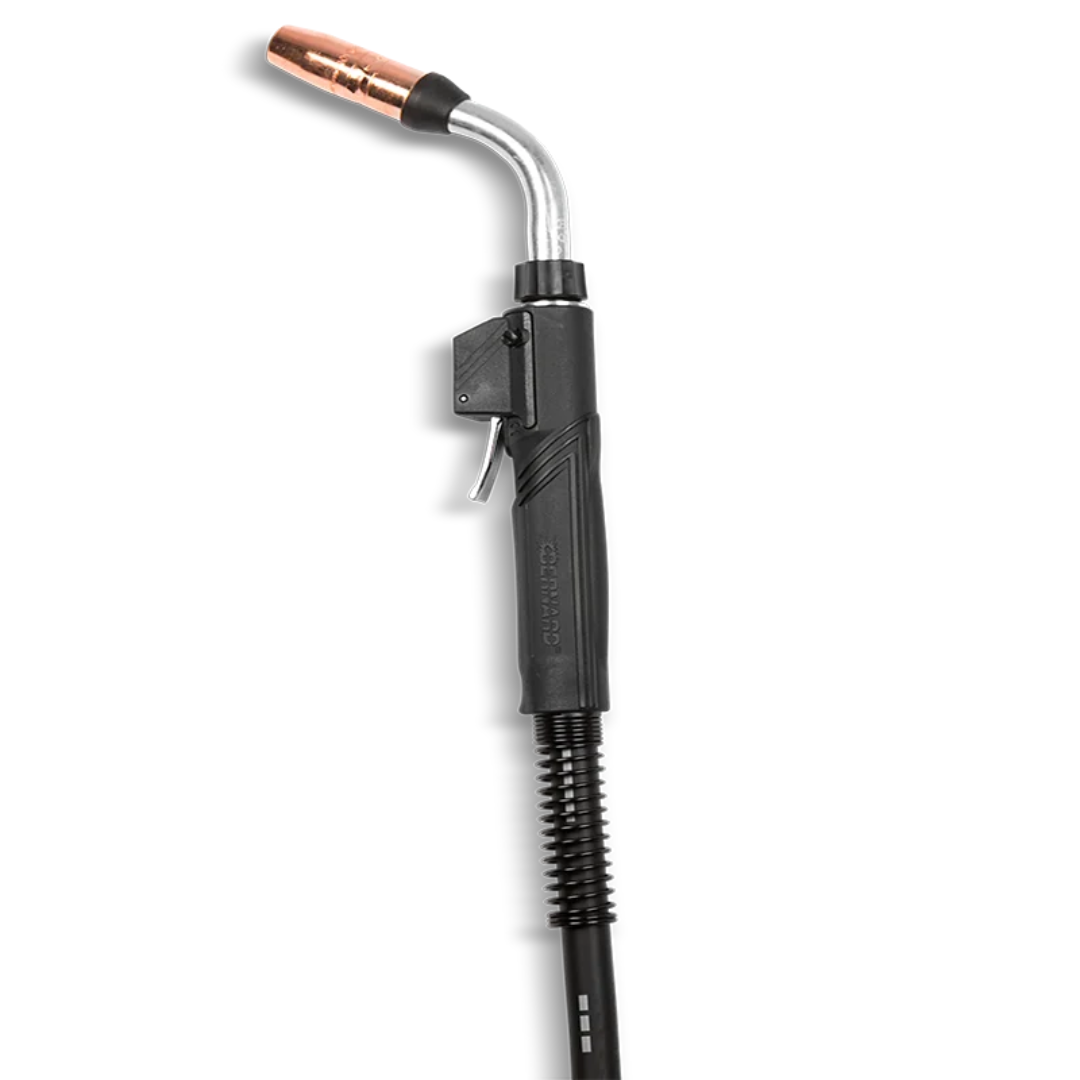

Bernard BTB Series 500A MIG Welding Gun 25 ft - Q5025MS3ESC
The Bernard BTB Series MIG Gun is a heavy-duty, air-cooled industrial MIG welding gun designed for maximum performance and durability. Operating at up to 500 amps, this highly configurable setup is built to handle demanding industrial welding applications while delivering comfortable handling and reliable wire feeding.
Features
- Industrial Duty Design: Rated for high-amperage applications with a 60% duty cycle to handle heavy fabrication work.
- T Series Straight Handle: Features an ergonomic straight handle paired with a standard trigger for straightforward control and reduce operator fatigue.
- Durable Hytrel® Cable: Equipped with a 25-foot polymer cable built to withstand tough shop environments and abrasion.
- TOUGH LOCK® Consumables: Utilizes heavy-duty (HD) front-end consumables designed to run cooler and extend component life.
- Reliable Power Connection: Fitted with a Tweco® #4 power pin with a Lincoln® lead connection for seamless power source compatibility.
Specifications
- Amperage: 500 A
- Cable Length: 25 ft (7.63 m)
- Cable Type: Hytrel® Polymer Cable
- Handle Type: T Series Straight Handle
- Trigger: Standard Trigger
- Neck: Fixed, 60-degree, medium length
- Consumables: TOUGH LOCK® Heavy Duty (HD)
- Liner: Bernard® Conventional Liner
- Wire Size: 0.045" (1.2 mm)
- Power Pin: Tweco® #4 (Lincoln® lead)
- Part Number: Q5025MS3ESC
