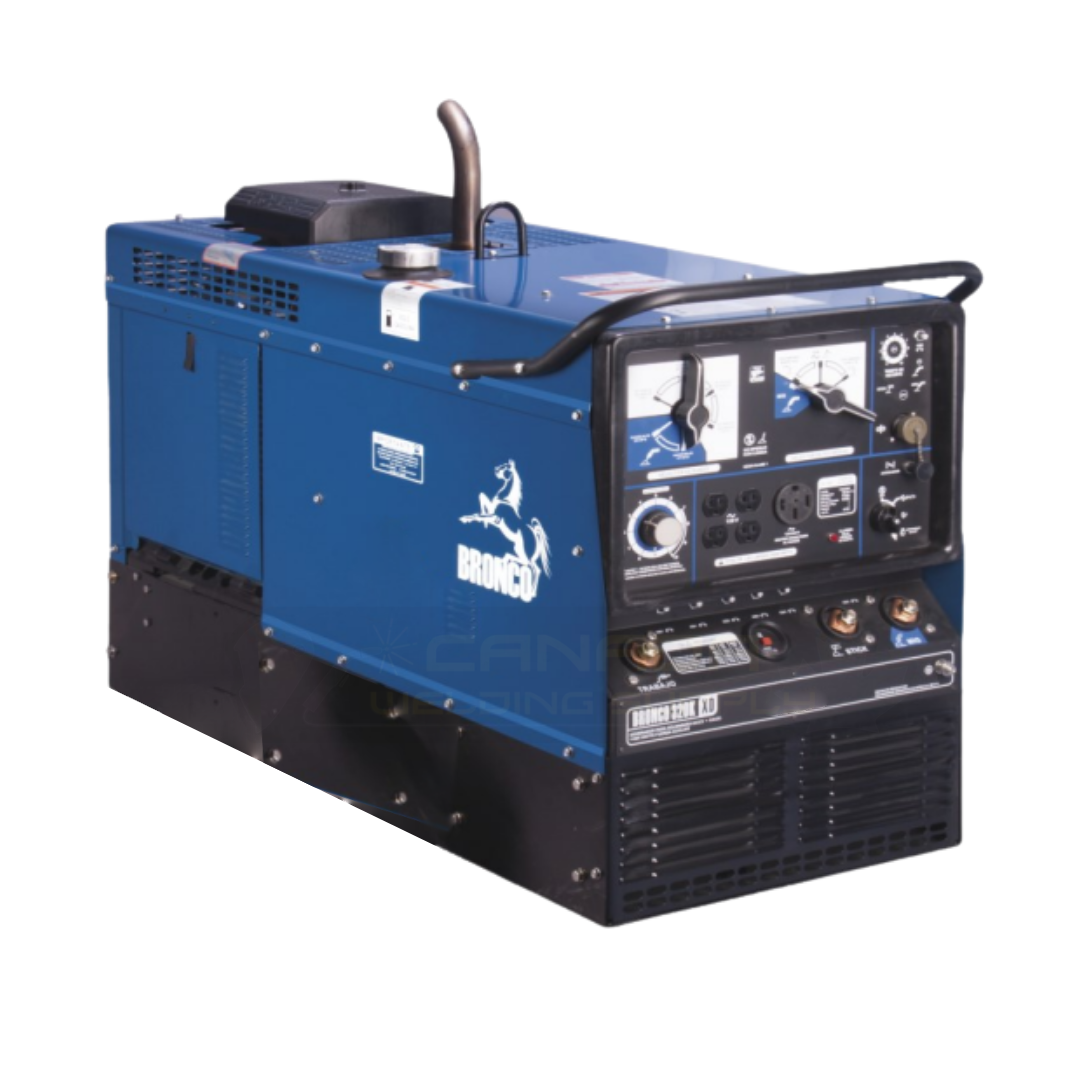

Comparc Bronco 320K XD Engine Driven Welder



Mobile Engine Driven Welder Generator

The Comparc Bronco 320 is a 320 A rated output welder/generator capable of taking on tough jobs on the go. Powered by a Kohler Command Pro 27HP gas engine, the Bonco 320 K XD will keep you welding throughout the day.

  • 320A @ 60% Duty Cycle across all modes
  • 12V Electric Start
  • 10.5 kW continuous output
  • 40L Fuel Capacity


Maximum Rated Output @ 60% Duty Cycle 320A @ 25 V, AC/CC
320A @ 25 V, DC/CC
320A @ 25 V, DC/CV
Rated Output @ 100% Duty Cycle 300 A @ 25 V, AC/CC
300 A @ 25 V, DC/CC
300 A @ 25 V, DC/CV
Output Range 50 - 320 A, AC/CC
50 - 320 A, DC/CC
17 - 28 V, DC/CV
Maximum OCV 80V AC
72V DC
41V CV
Auxiliary Power Output 120/240V, 60Hz
11,000w Peak
10,000w Continuous
Auxiliary Outlets 1x NEMA 14-50P
2x 120V, 15A
2x 120V, 20A
Starter 12V Electric Start
Dry Weight 743lb
Shipping Weight 762lb
Overall DImensions (H x W x L) 44.5" x 28" x 46"

Powered by Kohler Command Pro CH750

  • Four-cycle, gasoline, OHV, cast-iron cylinder liners, aluminum block
  • 747cc, 27 peak Horsepower
  • Large-capacity air, fuel and oil filters; high-performance spark plugs;
    two-barrel carburetor; hydraulic valve lifters
  • Integrated oil coolers extend oil-change intervals and maintain low temperatures during the entire power range
  • High-efficiency, heavy-duty air filters provide protection from debris and ensure longer service intervals
  • Extra-large sleeve bearings support heavy loads in commercial and industrial environments

Important:

Oversized item, does not qualify for free shipping.  Contact us for shipping quote - support@canadaweldingsupply.ca

Running gear and handle are not included
