Miller Maxstar® 161STH Stick Package - 907711
Miller Maxstar® 161STH
Miller Maxstar® 161STH Stick Package - 907711

Miller Maxstar® 161STH Stick Package - 907711

$3,486.00
$3,486.00
Sold Out
Only 1 left!

Miller Maxstar® 161 STH 120-240 V, Stick Package



Best-of-class - provides maximum portability and performance in the most compact Stick package in the industry. Packs dependability and performance all in one machine.

Top Features

  • Auto-Line Power Management Technology
    Allows for any input voltage hookup (120–240 V) with no manual linking, providing convenience in any job setting. Ideal solution for dirty or
    unreliable power.

  • High Frequency and Pulse TIG Welding
    High-frequency for non-contact arc initiation that reduces tungsten
    and material contamination. Pulsing can increase puddle agitation, arc stability and travel speeds while reducing heat input and distortion.
  • Portable
    in the shop or at the jobsite — at 13 pounds, the handle/shoulder strap allows
    the end user to easily move from location to location.

  • No More "Sticky" Electrodes
    With Miller's Adaptive Hot Start™ technology, you no longer have to worry about those difficult-to-strike electrodes

Technical Specs

Product Name // Part Number Miller Maxstar 161 STH // 907711
Input Voltage 120V thru 240V, 1Ph, 50/60 Hz
Input Current (120V) 60 A at 22.4 VDC, 100% duty cycle - 14.68A
90 A at 23.6 VDC, 30% duty cycle - 23.16A
Input Current (240V) 110 A at 24.4 VDC, 100% duty cycle - 14.31A
160 A at 26.4 VDC, 20% duty cycle - 22.55A
Dimensions
 H: 10.3 in. (262 mm)
W: 5.6 in. (142 mm)
D: 13.5 in. (343 mm)
Weight 13 lb

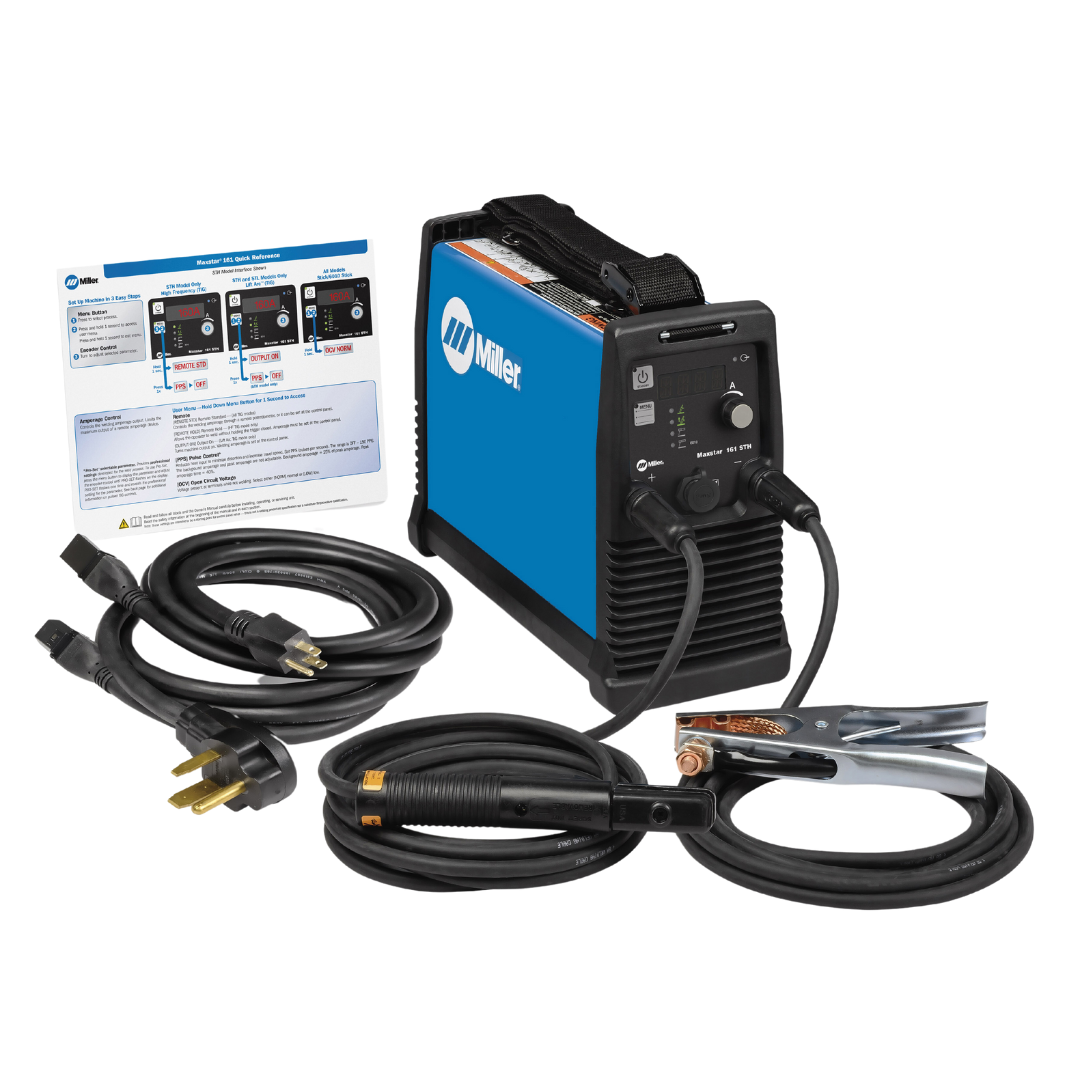

What's Included

  • Maxstar 161 power source
  • 6.5 ft. (2 m) 120-volt and 240-volt power cords
  • Stick electrode holder with 13 ft. (4 m) cable and 25 mm Dinse-style connector
  • Work clamp with 10 ft. (3 m) cable and 25 mm Dinse-style connector
  • One air-cooled TIG torch connector (195234)
  • Handle/shoulder strap
  • Quick-reference guide

Full Product Spec Sheet
