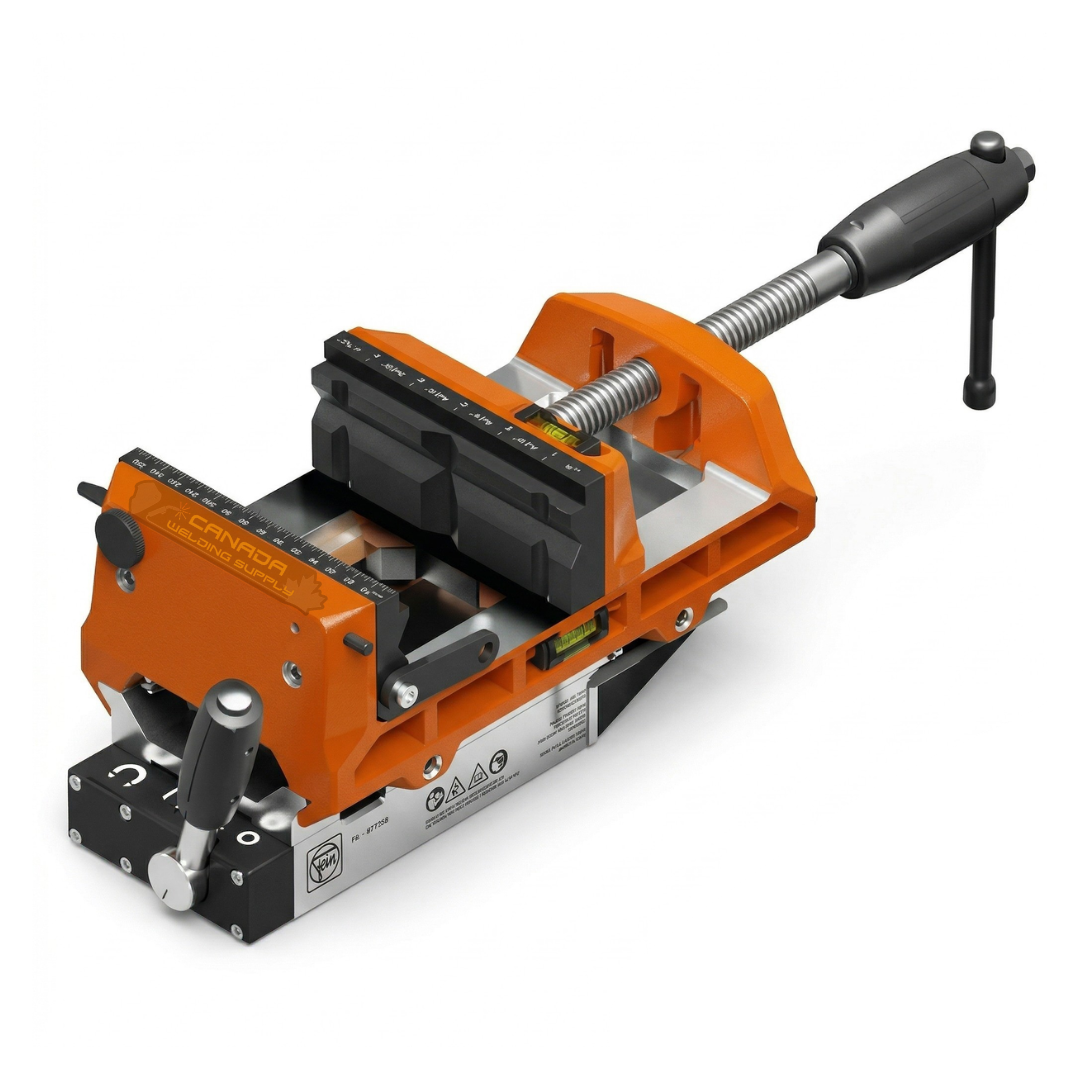

FEIN VersaMAG Vise 160L Magnetic Vise Set
FEIN VersaMAG Vise 160L Magnetic Vise Set

FEIN VersaMAG Vise 160L Magnetic Vise Set

$1,099.00
$1,099.00
0% OFF Sold Out
Available to Ship Typically ships in 5–10 business days
Upsell Product Image-1

FEIN Compact 4-1/2" Angle Grinder, 760W - WSG7-115

$149.00
Upsell Product Image-2

FEIN VersaMAG Magnetic Vise Set

$612.00
Upsell Product Image-3

FEIN 14" Slugger Metal Cutting Saw

$739.00
Upsell Product Image-4

FEIN JMC MAGFORCE 90 Low Profile Mag Drill

$1,925.00
Upsell Product Image-5

FEIN VersaMAG Jaw Extensions

$110.16
Upsell Product Image-6

FEIN 1-1/4" ShortSlugger II MAG Drill

$1,006.00
Upsell Product Image-7

FEIN VersaMAG 16mm Plate Attachment

$468.00
Upsell Product Image-8

FEIN 9" Slugger Metal Cutting Circular Saw

$875.00

FEIN VersaMAG Magnetic Vise Set


Compact, powerful permanent magnet with vise, for tool-free clamping of various components on magnetic surfaces.


The FEIN VersaMAG VISE 160 L is the latest innovation in mobile clamping technology, specifically engineered to meet the rigorous demands of professional metalworking. Following the success of the compact VersaMAG S, this "Large" variant provides an expanded 160 mm (6.3 in) clamping range, making it the ideal solution for securing large, complex components with unrivaled stability.

Combining a powerful permanent magnet with a modular design, the VersaMAG 160 L allows for tool-free setup on any magnetizable surface. Whether in the workshop or directly on a construction site, it delivers the productivity of a stationary vise with the total freedom of a mobile tool.

Features

  • Maximum Versatility: Boasts an expanded 160 mm (6.3 in) clamping span and 60 mm (2.4 in) jaw height, specifically designed for large sheets, pipes, and heavy profiles.
  • Unrivaled Holding Force: Equipped with a 12,500 N (2,810 lbf) magnetic holding force and a massive 19,000 N (4,271 lbf) jaw clamping force for maximum security during hands-free operation.
  • Rapid Productivity: Experience setup times up to 10 times faster than conventional systems, ensuring minimal downtime and maximum efficiency.
  • Precision Engineering: Features finely adjustable permanent magnets and integrated spirit levels for accurate alignment on both X and Y axes.
  • Modular Excellence: Quickly converts into a mobile welding table or adapts to various requirements using a wide range of extension and protective jaws.
  • Optimized Safety: Minimizes risk of injury from incorrectly clamped workpieces, providing a stable foundation for demanding drilling and cutting tasks.

FEIN VersaMAG 160L Specs
Specification Metric Imperial (Approx.)
Clamping Span (Max.) 160 mm 6.3 in
Jaw Width 150 mm 5.9 in
Jaw Height 60 mm 2.4 in
Jaw Clamping Force 19,000 N 4,271 lbf
Magnetic Holding Force 12,500 N 2,810 lbf
Magnet Size 180 x 105 mm 7.1 x 4.1 in
Weight (EPTA) 16.7 kg 36.8 lbs
Max. Drilling Depth 100 mm 3.9 in
Twist Drilling (Max. Ø at Magnetic Force) 30 mm 1.2 in
Core Drilling (Max. Ø at Magnetic Force) 40 mm 1.6 in
Overall Length (Extended) 637 mm 25.1 in
Accessory Interface VersaMAG L

The Safe Problem Solver

  • Safe and clean work directly on construction sites and in workshops.
  • Optimizes every workplace: Clean and safe work with a wide range of application options.
  • Safe clamping even in the thin sheet area from 4 mm and upward.

Flexible use

  • Mobile, flexible and quick to use.
  • Fits into every workplace thanks to its compact design and extra-slim permanent magnet.

Productivity increase

  • Adapts to any workplace
  • Set-up times are reduced by the VersaMAG.


Modular system

  • The unique modular system ensures a secure hold in a wide variety of working situations and can be continuously expanded with suitable accessories.
  • Interchangeable clamping jaws in different heights for clamping larger materials such as sheet metal and tubes.
