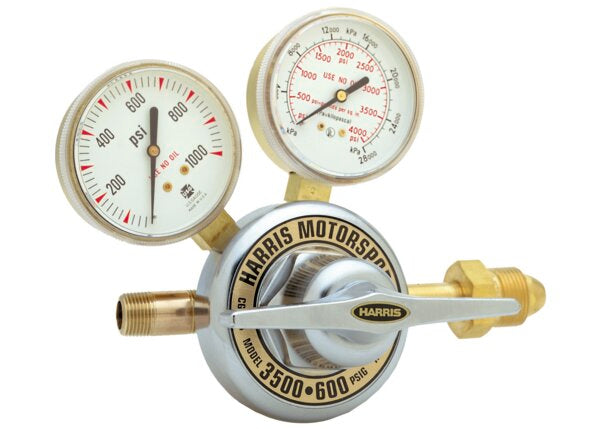

Harris Model 3500-600-580 HP Single-Stage Pressure Regulator



Features

  • Operates on high pressure cylinders up to 3000 PSIG
  • Designed for integral pit jack systems common in IRL® and CART® vehicles and ideal for wheel guns used in NASCAR®, IRL® and CART® racing.
  • Easy-to-operate electroless nickel-plated brass T-screw bar adjusting handle
  • Electroless nickel-plated brass bonnet and brass body for longer service life
  • Large 2.75 in. neoprene diaphragm for improved pressure control
  • 2.5 in. Brass dual scale easy-to-read gauges
  • One-piece encapsulated seat design with internal filter to protect the CTFE Kel-F® seat from particulate contamination
  • Equipped with a tamper-proof, self-reseating, internal high pressure safety relief valve
  • Equipped with dual outlet ports
  • Features 1/4 in. NPT (F) auxiliary delivery port

Technical Specifications

Adjusting Screw Electroless nickel-plated brass T-screw bar
Body Brass
Bonnet Electroless nickel-plated brass
Capacity High pressure
high flow
Certification CGA E-4
Cv 0.55
Delivery Pressure Gauge (PSIG) 1000
Delivery Pressure Range (PSIG) 0 - 600
Diaphragm Neoprene
Equipped With 1/4 in. NPT(F) auxiliary delivery port
Gas / Gas Service Argon
Helium
Nitrogen
Gauges 2.5 in. Brass dual scale (psi/bar)
Inlet Connection CGA 580
Maximum Inlet Pressure (PSIG) 3000
Outlet Connection 3/8 in. NPT (M)
Pressure Regulation PSIG/100 PSIG 1.6
Recommended Items/Accessories
Plug - Model 967 1/4 in. - PN 9000306
Plug - Model 967 3/8 in. NPT Hex Socket - PN 9000373
Seat CTFE (Kel-F®)
Supply Pressure Gauge (PSIG) 4000
Warranty 1 Year
