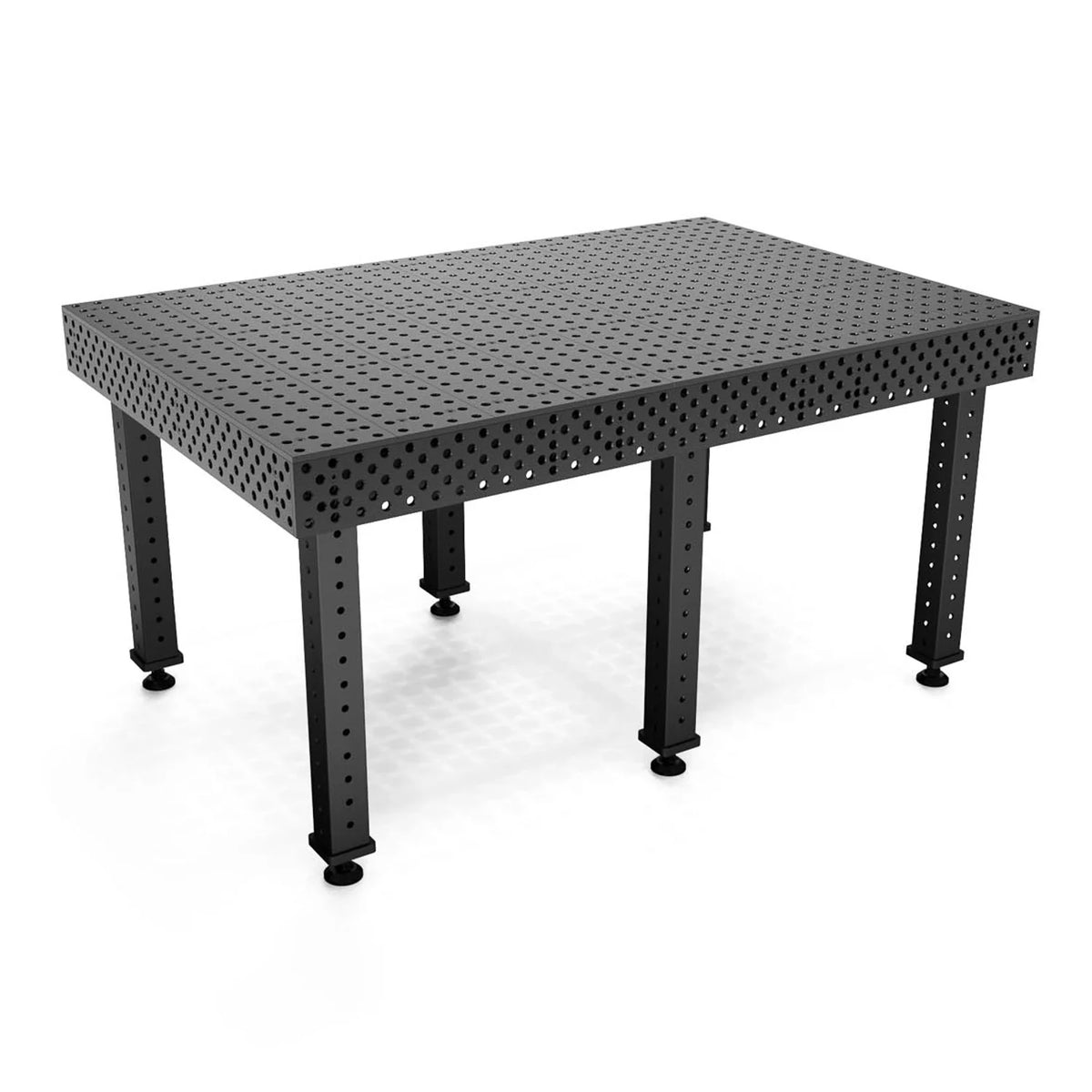

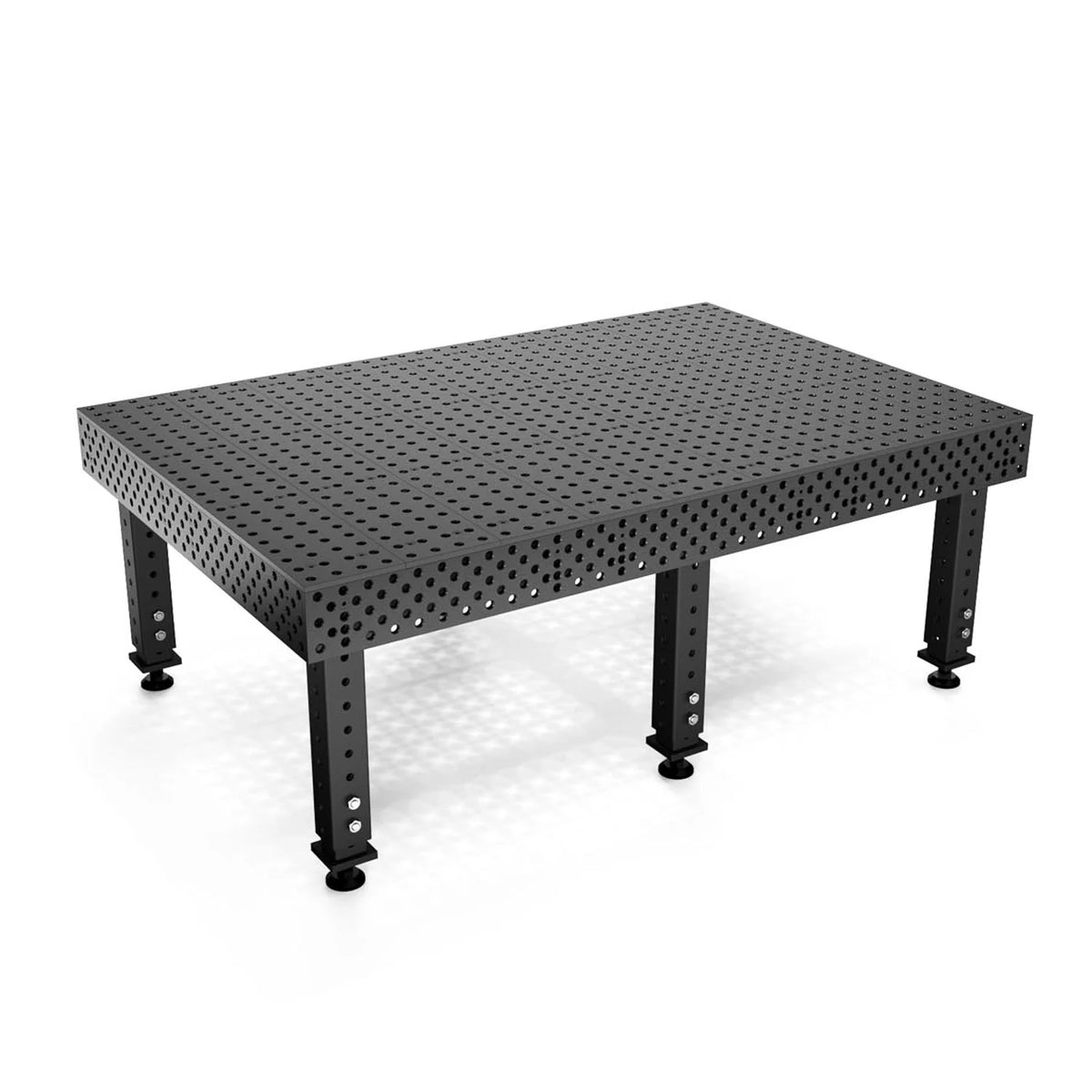

BuildPro Alpha 5/8 Welding Fixture Table



6' x 4' Nitrided - 5/8" Bore Diameter Fixturing Holes

This product ships free of charge to USA (lower 48) and Canada. No import fees or duties are applied. Forklift or Loading Dock are required.

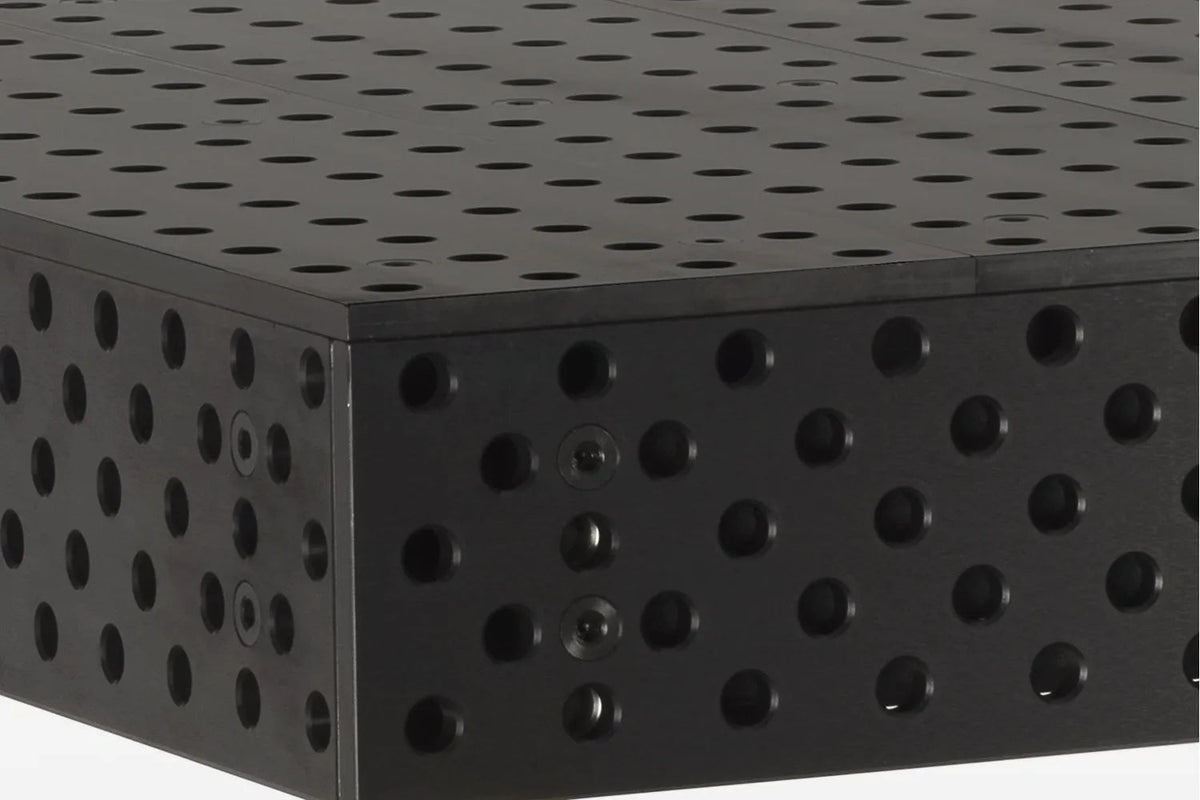

The new heavy-duty table line from BuildPro; it features 5 sides fitted with 5/8″ diameter boreholes for more versatility and expandability than before. Maintaining industry-leading requirements for flatness, squareness, and dimensional accuracy.

Specifications

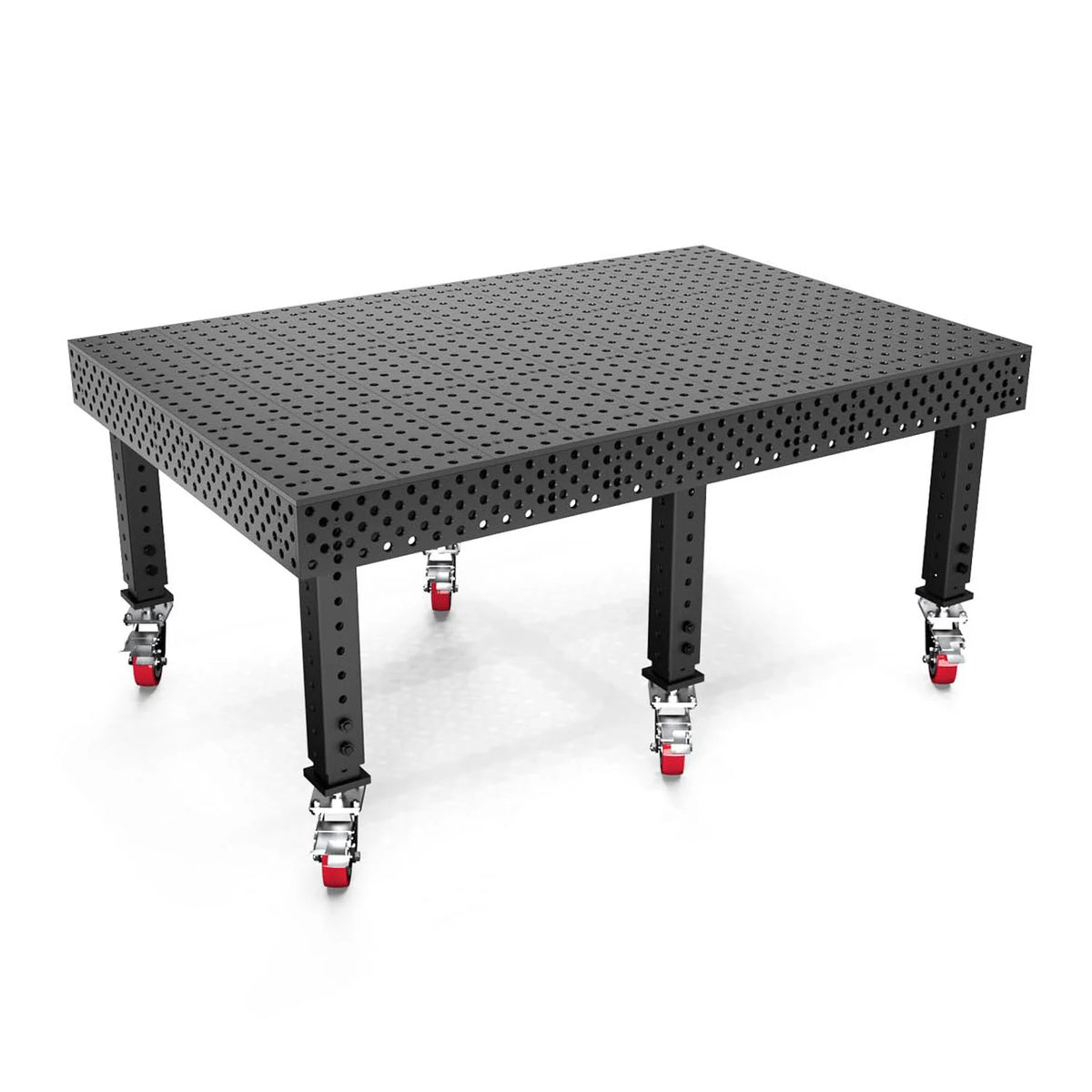

  • Capacity: 7,900 lbs (2,800 lbs with casters)
  • Size: 72 x 48 inches
  • Flatness: +/- .005 inches per 24 x 24 inches
  • Finish: Nitrided

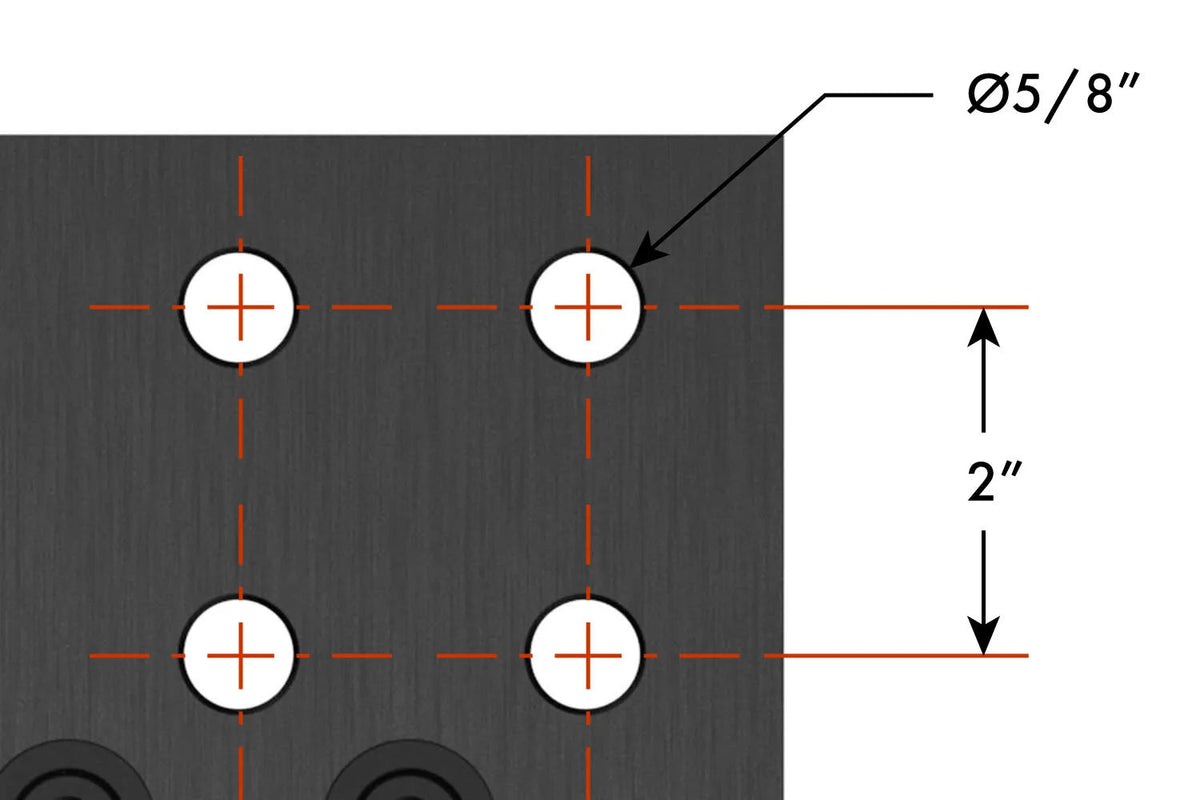

  • Hole diameter: .625 +.002/-.000 inches
  • Hole spacing: 2.000 +/- .001 inches
  • Plate thickness: .47 +/- .004 inches
  • Weight (pounds): 1133

Table Accuracy

Hole Diameter 0.625" + .002 / -.000
Hole Spacing 2.000" ±0.001
Table Flatness ±0.005 per 24" x 24"
Plate Thickness 0.47" ±0.004
Tabletop Finish Nitrided (Heat Treated)
Surface Hardness 58-62 HRC
Coefficient of Friction 0.37

Top Plate

Material P20
Hardness 58-62 HRC

Side Plate

Material Q345B
Hardness 50-55 HRC





Please allow a 5 business day processing time.  Orders are shipped direct from the manufacturer and do not incur import fees.
