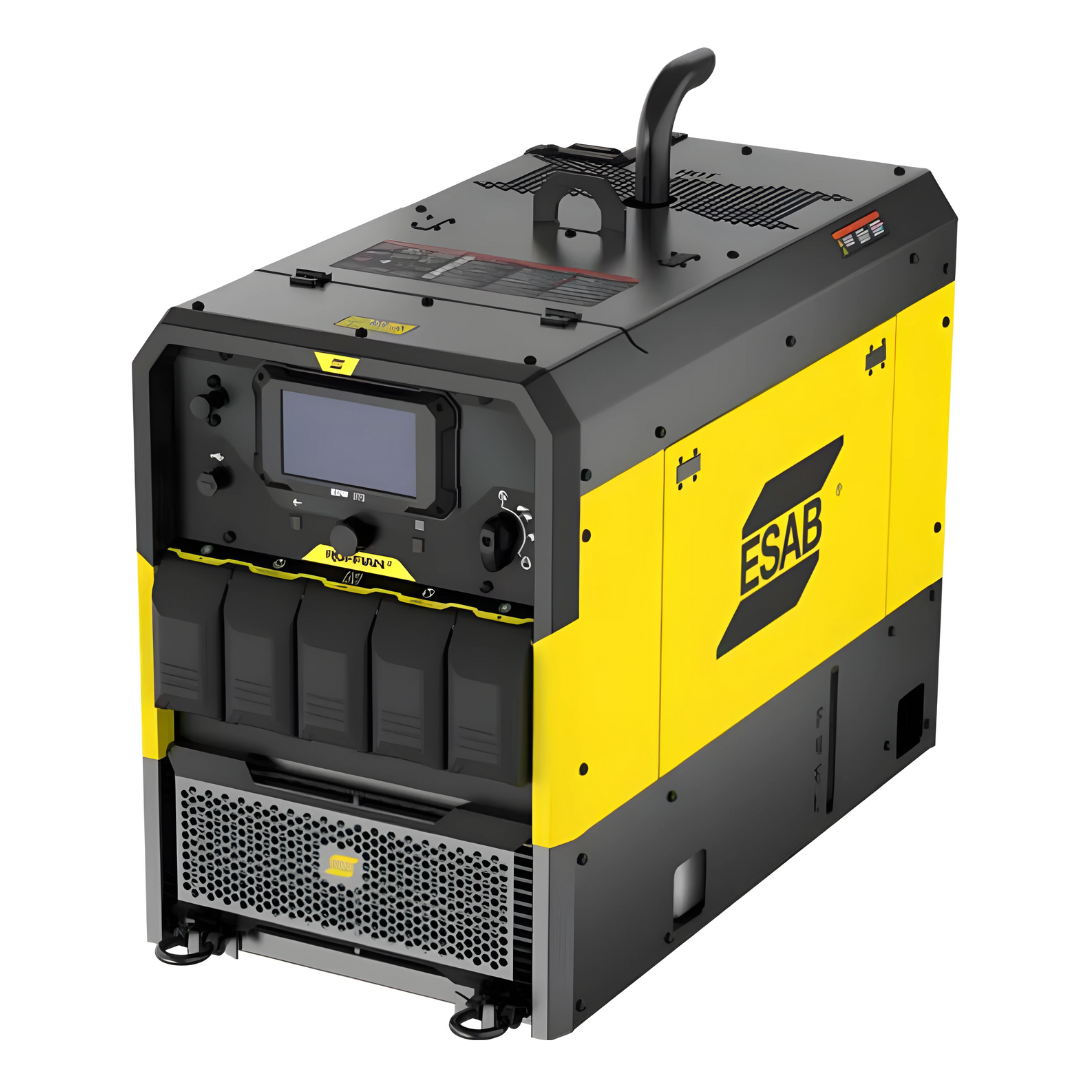

The Ruffian EMP 270G is the next generation of ESAB engine driven welders. A lightweight, compact and powerful combination of generator and multi process welder. This Ruffian comes with a unique inverter full of features to bring welding quality to the next level.
Delivers up to 270A with 100% duty cycle and its inbuilt generator can deliver up to 11kW throughout 120VAC and 240VAC auxiliary outlets, thanks to the reliable 23.5HP Kohler® gasoline engine. colorful digital display, which not only allows user to easily select
welding parameters through intuitive menus but also drives settings to deliver optimized welds through accurate software.
Strong focus on simplified usage and maintenance. The user has full visibility of each component and precise information about parts replacement timing, to extend the overall equipment lifespan.
| Category | Specification |
| Technology | Inverter |
| Welding Processes | SMAW / GTAW / GMAW / FCAW / CAC-A |
| Output Setting Range | |
| Process |
Current / Voltage Range
|
| Stick (SMAW) |
20.0–270A (20.8–30.8V)
|
| TIG (GTAW) |
20.0–270A (10.8–20.8V)
|
| MIG (GMAW) |
15.5–27.5V (30.0–270A)
|
| Flux Cored (FCAW) |
15.5–27.5V (30.0–270A)
|
| Gouging (CAC-A) |
10.0–270A (20.4–29.4V)
|
| Rated Duty Cycle (100%) | |
| Process |
Output Rating
|
| Stick (SMAW) |
235A / 29.4V
|
| TIG (GTAW) |
270A / 20.8V
|
| MIG (GMAW) |
260A / 27.0V
|
| Flux Cored (FCAW) |
260A / 27.0V
|
| Gouging (CAC-A) |
235A / 29.4V
|
| Electrical & Operating Parameters | |
| Parameter | Value |
| Open Circuit Voltage (OCV) | 94 V |
| Operating Temperature |
-13°F to 104°F (-25°C to +40°C)
|
| Generator Specifications | |
| Parameter | Value |
| Phases | 1 Phase |
| Voltages |
120 / 240 VAC
|
| Frequency | 60 Hz |
| Peak Power | 11 kW |
| Continuous Power | 10.5 kW |
| Engine Specifications | |
| Parameter | Value |
| Brand / Model |
Kohler Command PRO CH730
|
| Warranty |
3-Year Manufacturer Warranty
|
| Power | 23.5 HP |
| Fuel Type | Gasoline |
| Cooling Type | Air-Cooled |
| Cylinders | 2 |
| Rated Speed | 3600 RPM |
| General Specifications | |
| Parameter | Value |
| Fuel Tank Capacity |
11 gal (43 L)
|
| Enclosure Class | IP23S |
| Dimensions (L × W × H) – Without Exhaust |
37.6 × 19.9 × 27.2 in (955.3 × 505.0 × 690.9 mm)
|
| Dimensions (L × W × H) – With Exhaust |
37.6 × 19.9 × 32.9 in (955.3 × 505.0 × 836.2 mm)
|
| Net Weight – Without Gas |
425.0 lbs (192.8 kg)
|
| Net Weight – With Gas |
493.2 lbs (223.7 kg)
|
| Gross Weight – With Pallet |
450.0 lbs (204.2 kg)
|
| Gross Weight – With Pallet & Lid |
503.0 lbs (228.2 kg)
|
Part Number - 0707070270
