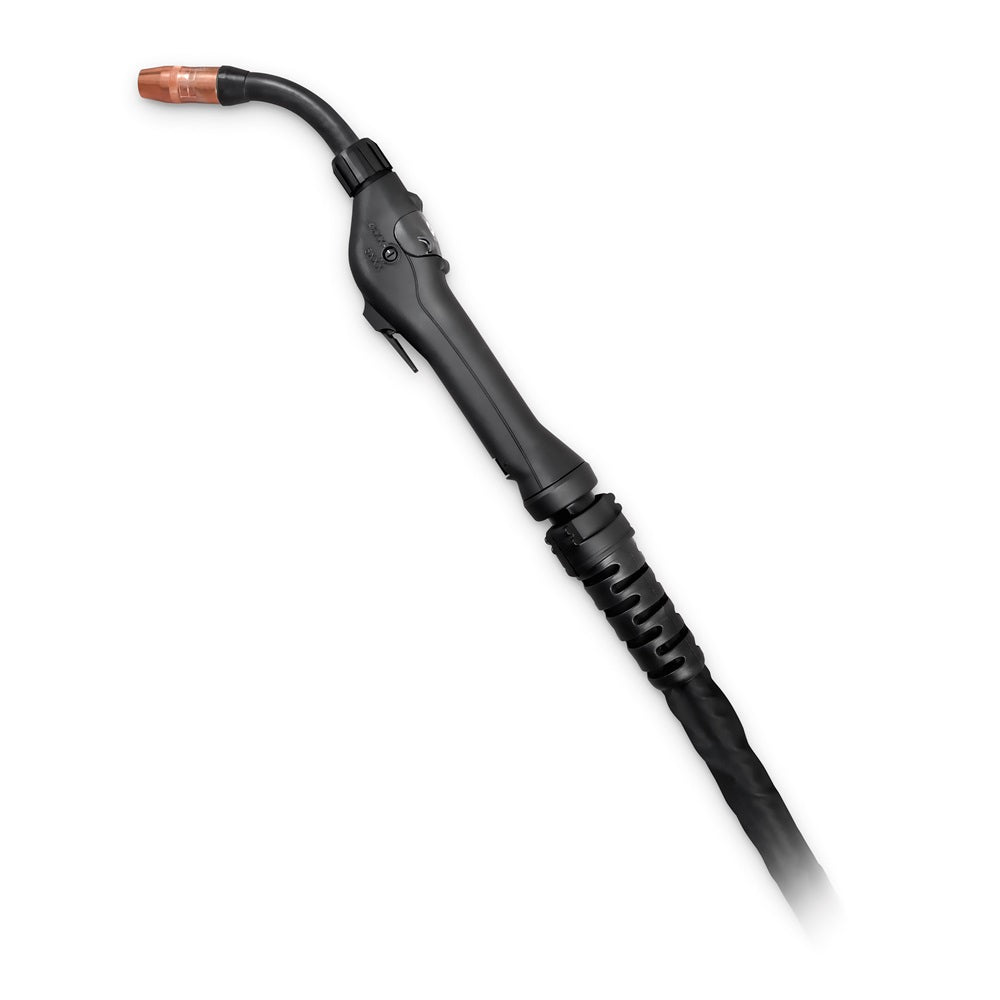

Miller XR-A Aluma-Pro Plus Push Pull Gun


New lighter XR-Aluma-Pro guns reduce fatigue, improve output and are rugged to withstand industrial environments.



Features

  • Aluminum-Specific Tension Settings: Optimized to provide smooth wire feeding performance specifically for 4000 or 5000 series aluminum wires.

  • Ergonomic Balanced Design: Reduces operator fatigue, improves access to tight joints, and allows better control over gun angles and travel speeds.

  • Premium Wire Feed Control: Features a 3-3/4 turn potentiometer for precise wire speed adjustments on the fly, with a recessed knob easy to operate while wearing heavy welding gloves.

  • Isolated Knurled Drive Roll: Toolless drive roll system feeds .030 to 3/64-inch wire straight out of the box.

  • Easy Maintenance & Serviceability: Designed with a full-length hook-and-loop cable cover closure and quick-connectors between control cables and electrical components.

  • Replaceable Feed Cable Liner: Minimizes service costs by allowing you to swap out just the liner rather than replacing the entire cable bundle.

Specification Details
Welding Current Rating 300 A at 100% Duty Cycle
Wire Feed Speed Range 70–780 ipm (1.8–19.8 m/min)
Wire Type & Capacity Aluminum: .030–1/16 in. (0.8–1.6 mm)*
Gun Dimensions

H: 5 in. (127 mm)

W: 2.5 in. (64 mm)

D: 17 in. (432 mm)
Net Weight (Gun Only) 2.5 lb. (1.1 kg)

    Drive Rolls, Idler Rolls, & Inlet Guides

    • Drive Rolls (All wire sizes): Part No. 227434
    • Idler Rolls:

      • For .030, .035, .040, and 3/64 in. wires: Part No. 227439

      • For 1/16 in. wires: Part No. 230710

    • Inlet Guides:
    • For .030, .035, .040, and 3/64 in. wires: Part No. 227408
    • For 1/16 in. wires: Part No. 230711

    Cable & Head Tube Liners

    • Main Cable Liner (15 ft. length): Part No. 229887
    • Short Head Tube Liners (4 in.):
    • For .030, .035, and .040 in. wires: Part No. 227161
    • For 3/64 in. and 1/16 in. wires: Part No. 230239
    • Long Head Tube Liners (6 in.):
    • For .030, .035, and .040 in. wires: Part No. 229674
    • For 3/64 in. and 1/16 in. wires: Part No. 229431

    Contact Tips (Aluminum-Specific T-Series)

    • .035 in. (0.9 mm) wire: Part No. T-035AL
    • .047 in. (1.2 mm) wire: Part No. T-047AL
    • 1/16 in. (1.6 mm) wire: Part No. T-062AL

    Nozzle Insulators & Diffusers

    • Large Configuration Insulator: Part No. 10012
    • Large Configuration Diffuser: Part No. D-1AP
    • Small Configuration Insulator: Part No. 4323R
    • Small Configuration Diffuser: Part No. DS-1AP

    Large Nozzles

    • Part No. N-3414C (Copper, 3/4 in. I.D., 1/4 in. tip recess)
    • Part No. N-3418B (Brass, 3/4 in. I.D., 1/8 in. tip recess)
    • Part No. N-3414B (Brass, 3/4 in. I.D., 1/4 in. tip recess)
    • Part No. N-5814C (Copper, 5/8 in. I.D., 1/4 in. tip recess)
    • Part No. N-5818B (Brass, 5/8 in. I.D., 1/8 in. tip recess)
    • Part No. N-5814B (Brass, 5/8 in. I.D., 1/4 in. tip recess)

    Small Nozzles

    • Part No. NS-5818B (Brass, 5/8 in. I.D., 1/8 in. tip recess)
    • Part No. NS-1218B (Brass, 1/2 in. I.D., 1/8 in. tip recess)
    • Part No. NS-1200B (Brass, 1/2 in. I.D., flush tip)
    • Part No. NST-3818B (Brass, 3/8 in. I.D., 1/8 in. tip recess)
