Miller Venture™ 150 T with Battery, Charger and TIG Kit Package



Package includes the Venture 150 T, 400Wh Battery Pack, Charger and TIG Kit. The Venture 150 T is a lightweight and compact battery powered TIG/Stick welder with swappable battery packs engineered specifically for welding.

Features

  • Portable in the shop or at the jobsite at only 27 pounds (with battery)
  • Inverter technology combines best-in-class arc characteristics
  • Thermal overload protection helps prevent machine damage if the duty cycle is exceeded or airflow is blocked.
  • DC stick and DC TIG processes capabilities
  • Simple-to-use operator interface providing only the necessary controls in a compact machine.
  • Fan-On-Demand™ power source cooling system operates only when needed, reducing noise, energy use and the amount of contaminants pulled though the machine.
  • Lift-Arc™ provides TIG arc initiation without the use of high frequency. Pro-Set™ eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience and confidence of preset controls. Simply select the feature and adjust until Pro-Set appears on the display.
  • Low OCV stick is a simple design that reduces the open-circuit voltage to 12–16 volts when the welding power source is not in use. This circuit design is now built into the Venture 150 S eliminating the need for add-on voltage reducers.
  • Hot Start™ adaptive control provides positive arc starts without sticking.
  • Stick-Stuck detects if the electrode is stuck to the part and turns the welding output off to safely and easily remove the electrode.
  • Long life. Over 1,000 charge cycles under typical-use cases and with proper care.
E6010 E7018
Electrodes Consumed Amps Electrodes Consumed Amps
3/32 x 12 in 14.49 60 13.35 90
1/8 x 14 in 8.14 90 8.02 120
5/32 x 14 in 5.52 120 5.57 140
        Title Venture™ 150 T with Battery, Charger and TIG Kit Package
        Applications Field Welding
        Mobile Fabrication & MRO
        Off-Road
        Process Pipe
        Refineries and Power Plants
        Stainless Steel
        Tube and Pipe Fabrication
        Industries Aerospace
        Construction & Fabrication
        Farm & Ranch
        Mining
        Racing, Customizing & Restoring
        Railcar
        Shipbuilding
        Transportation
        Portability Handle(s)
        Strap
        Max Open-Circuit Voltage 80 VDC
        Battery Charging Options Fast: 0-95% in < 30 mins.
        Standard: 0-95% in < 60 mins.
        Weldable Metals Stainless Steel
        Steel
        Current Type DC
        Weld Output CC
        Amperage Range Stick: 20 - 150 A
        TIG: 10 - 160 A
        Material Thickness Steel 0.020 in. (0.5 mm) - 3/16 in. (4.8 mm)
        Battery Lifespan Over 1,000 charge cycles under typical use cases and with proper care
        TIG Arc Time Per Charge 15.54 minutes at 100A
        8.33 minutes at 160A
        Stick Electrode Consumption Per Charge 8.021 1/8 in. 7018 at 110A
        8.14 1/8 in. 6010 at 90A
        13.45 3/32 in. 7018 at 80A
        14.49 3/32 in. 6010 at 60A
        5.79 5/32 in. 7018 at 150A
        5.57 5/32 in. 6010 at 120A
        Input Voltage - Machine 57.6 VDC
        Input Voltage - Charger 120 V
        Input Hz 50/60 Hz
        Input Phase 1-Phase

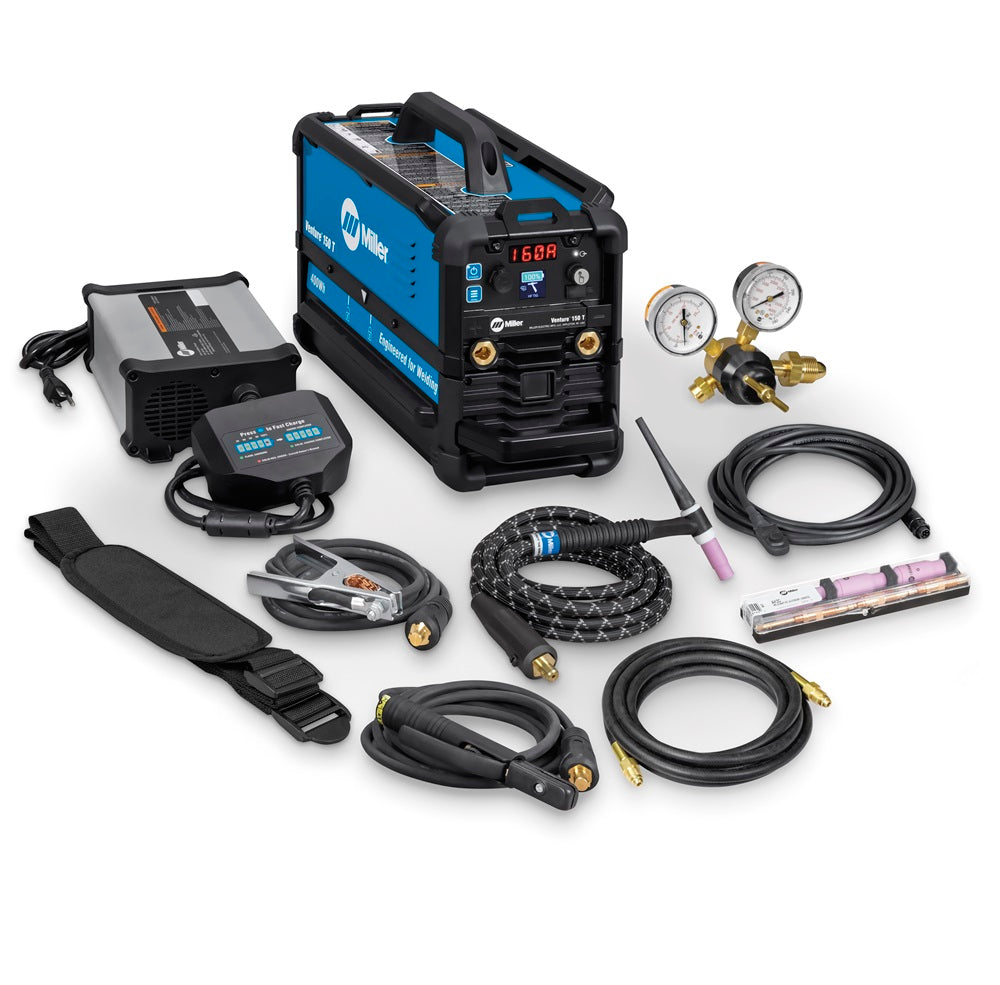

        TIG Package Includes:

        • Venture 150 T Power Source
        • 400 Wh Battery
        • Battery Charger
        • Shoulder Strap with Pad
        • Rubber Bumpers/Feet10 ft. (3 m) work cable w/clamp & 50 mm Dinse-style connector
        • 10 ft. (3 m) stick electrode holder with 50 mm Dinse-style connector
        • TIG Kit for TIG welding

        Full Product Data Sheet
