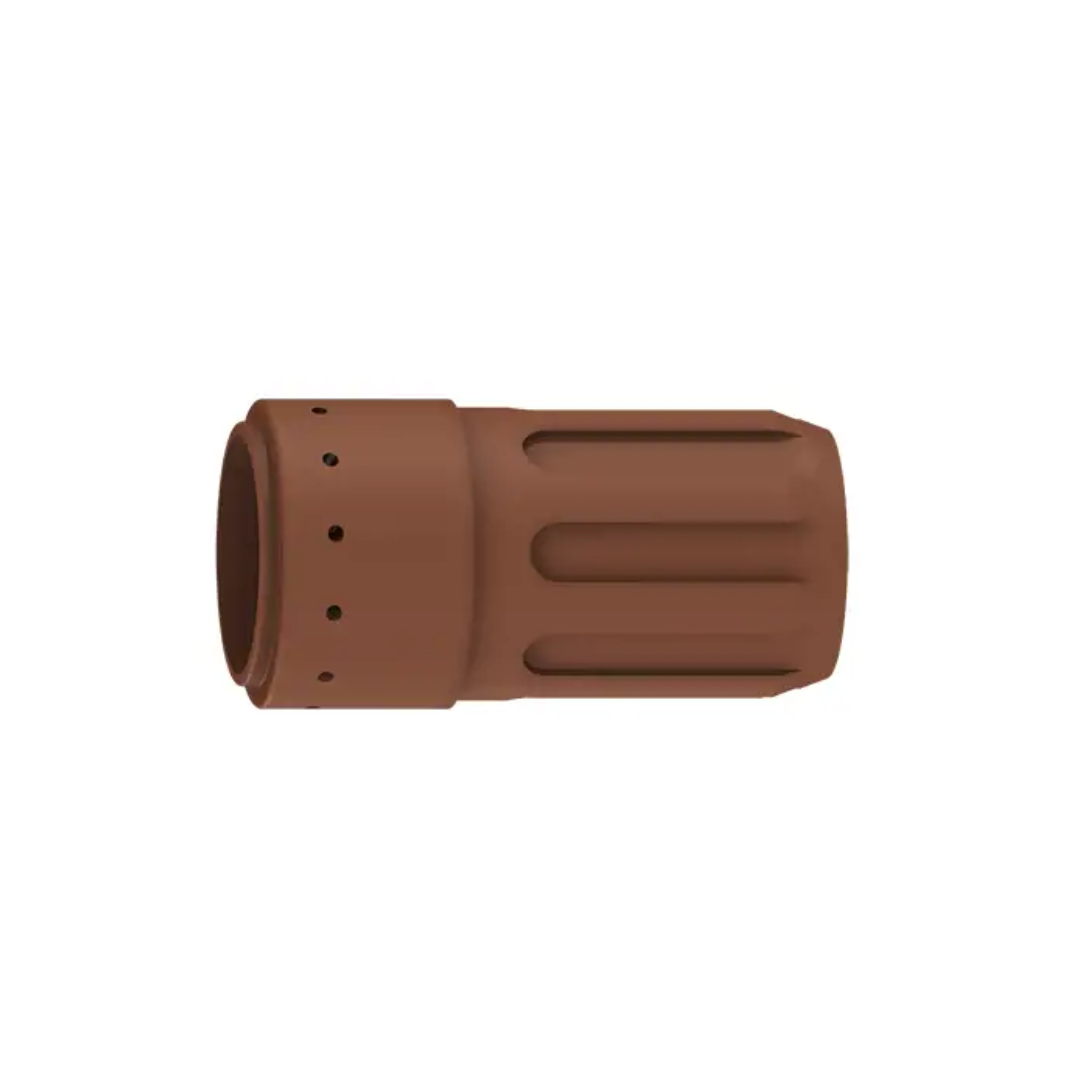

Hypertherm 220947, FineCut Swirl Ring



Swirl Ring for Hypertherm Lock torch found on Powermax plasma cutters.

  • Genuine Hypertherm Consumable
  • 30 - 45 Amp Optimized
  • Part Number: 220947 (1/Pack)

Compatible with Torches:

  • Duramax Torches: Found on the Powermax 65, 85, and 105 systems.
  • Duramax Lock Torches: The standard handheld and machine torches for the Powermax45 XP.
  • Duramax Retrofit Torches:
  • Powermax1000 / 1250 / 1650
  • Powermax600 / 800 / 900
  • MAX42 / 43

Compatible with Systems:

  • Powermax 45 XP
  • Powermax 65
  • Powermax 85
  • Powermax 105

Available Parts for Duramax and Duramax Lock Torches
Part Number Part Type Application / Process Amperage Description / Notes
220818 Shield Standard Drag-Cutting 45A, 65A, 85A Standard shield for drag cutting.
220992 Shield Standard Drag-Cutting 105A High amperage standard shield.
220798 Shield Max Control Gouging 10A – 105A Shield specifically for washing/gouging.
220931 Deflector FineCut 30A – 45A Used in place of a shield for precision cuts.
220854 Retaining Cap All Processes All (30A – 105A) Universal retaining cap for Duramax torches.
220941 Nozzle Standard Drag-Cutting 45A Standard cutting nozzle.
220819 Nozzle Standard Drag-Cutting 65A Standard cutting nozzle.
220816 Nozzle Standard Drag-Cutting 85A Standard cutting nozzle.
220990 Nozzle Standard Drag-Cutting 105A High amperage cutting nozzle.
220930 Nozzle FineCut 30A – 45A Precision nozzle for thin sheet metal.
220797 Nozzle Max Control Gouging 10A – 105A Wide nozzle designed for gouging.
220842 Electrode All Processes All (30A – 105A) Standard replacement electrode.
220777 Electrode All Processes All (30A – 105A) CopperPlus™ extended-life electrode.
220857 Swirl Ring Standard / Gouging 45A, 65A, 85A Standard swirl ring.
220994 Swirl Ring Standard Drag-Cutting 105A High amperage swirl ring.
220947 Swirl Ring FineCut 30A – 45A Swirl ring optimized for lower-amp FineCut.
