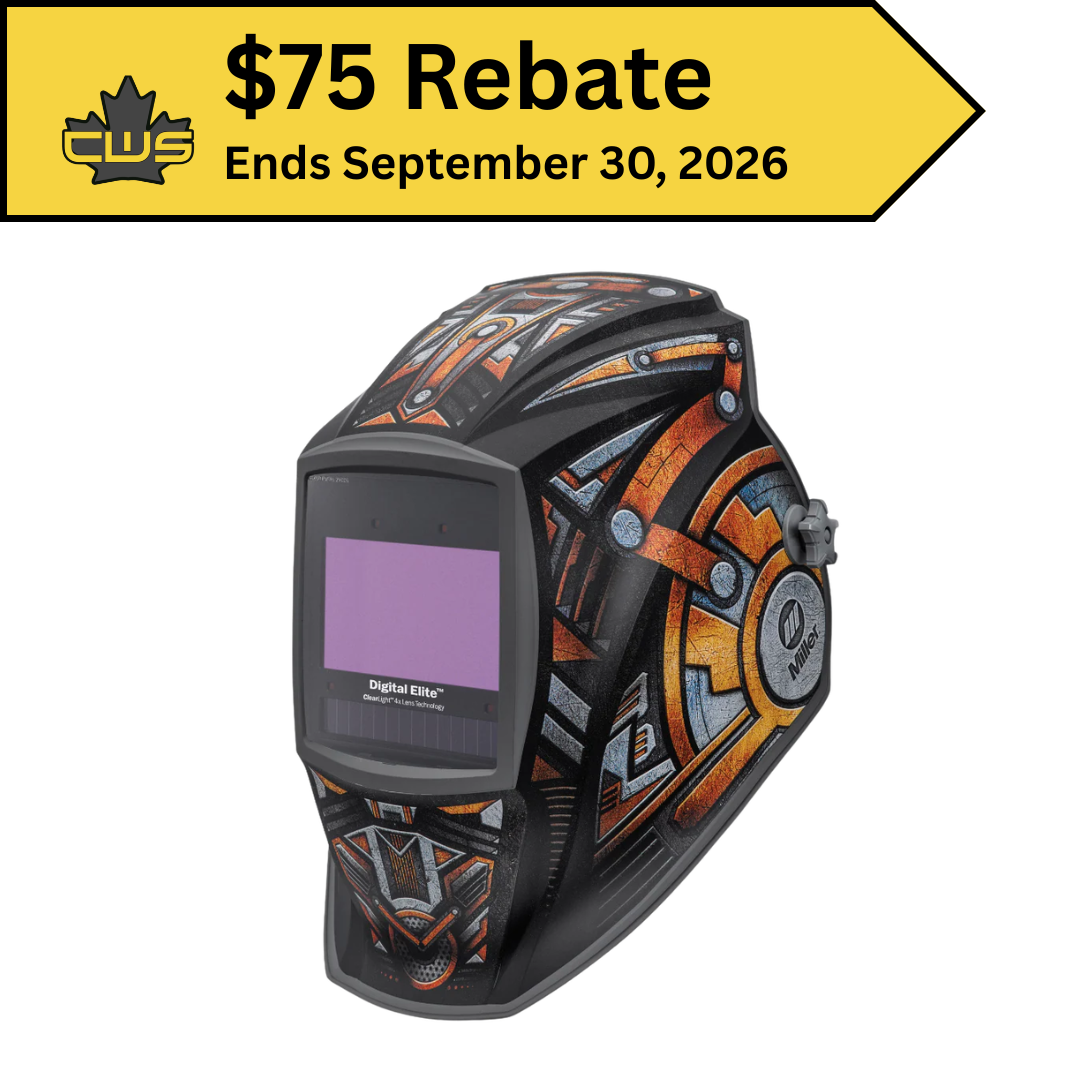

Miller Digital Elite, Gear Box Helmet

Clearlight 4x



This leading welding helmet provides high-performance versatility. Features ClearLight™ 4x Lens Technology and a large viewing area.

Part No. 296771

Features:

  • ClearLight™ 4x Lens Technology: Offers up to four times better clarity compared to standard welding helmets, with 1/1/1/2 optical clarity.
  • InfoTrack™ 2.0: Tracks and displays arc time and arc count to monitor welding performance.
  • AutoSense™ button: Automatically adjusts helmet sensitivity to suit the welding environment, reducing manual setup.
  • Four arc sensors and operating modes: Includes Weld, Cut, Grind, and X-Mode for versatile welding tasks.
  • X-Mode™: Electromagnetically senses the weld to reduce sunlight interference and detect the arc even if sensors are blocked.
  • Digital controls: Allows precise adjustment of lens settings for shade, delay, and sensitivity.
  • Memory function: Stores two customized presets for quick switching between different settings.
  • Half-shade settings: Provides finer control over lens adjustments for improved precision.
  • Legacy headgear: Features a comfort cushion designed for enhanced stability and comfort during long hours of wear.
  • Helmet lighting accessory kit: Optional kit includes two side-mounted lights for better visibility in low-light conditions.
Product Name // Part Number Digital Elite™, Clearlight 4x, Gear Box// 296771
Light State 2.5
Sensors 4
Optical Clarity (EN 379) 1/1/1/2
TIG Rating 5 amps and below
Switching Speed 1/25,000 second
Weight 17.5 oz. (495 g)
Battery CR2450 Lithium
Certifications ANSI Z87.1+, CSA
Viewing Area 9.2 sq. in. (59.48 sq. cm)
Operating Modes and Shades Weld (8 – 13), Cut (5 – 8), Grind (2.5), X-Mode™ (8 – 13)
Warranty Four years for the auto-darkening lens

What's Included

  • Helmet bag
  • 2 inside cover lenses
  • 5 outside cover lenses

Digital Elite Series Data Sheet | Digital Elite Series Manual | Replacement Parts
