Fireball Standard Duty Welding Fixture Table 8.5' x 4.5' (TCF)

Régulier
$14,475.00
Vente
$14,475.00
Régulier
0% OFF Épuisé
Prix ​​unitaire
par
0 In Stock More Coming Soon

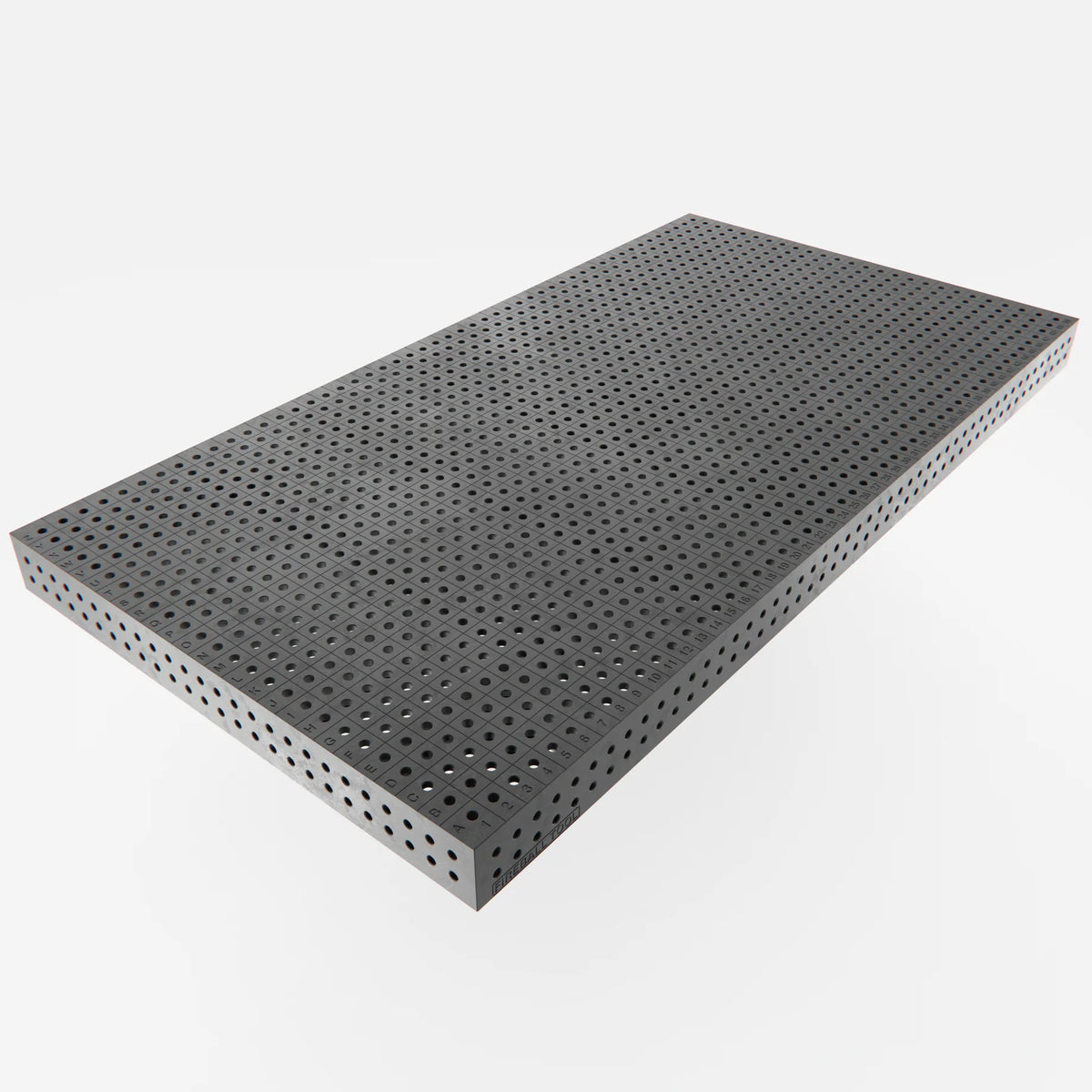

Standard Duty Welding Fixture Table 8.5' x 4.5' (102" x54" x 6") (TCF)


Standard Duty 8.5' x 4.5' (102" x54" x 6")

If the Pro table is a light-duty option, the Standard Duty is the table for everyone else. Think of it as the Honda Civic of fixture tables — reliable, capable, and built to handle virtually any job a professional fabricator will throw at it on a daily basis. It is the most popular choice across the Fireball lineup.

The Standard Duty features one-piece cast iron construction with heavy ribbing underneath, delivering exceptional stiffness and rigidity. Cast iron is naturally spatter-resistant, meaning weld spatter is far less likely to stick compared to regular plate steel. You can fully weld out directly on the Standard Duty fireballtool.com | Fireball Tool — Engineered for the Serious Fabricator — it’s built for it — and torch heat can be applied directly to the cast iron without causing damage.

Best Suited For:

  • Professional fabricators and small shop owners
  • Everyday production welding and fabrication
  • Users who want a serious, no-compromise table at an accessible price point
  • Second-floor shops where floor load capacity is a concern — the Standard Duty is significantly lighter than the Heavy Duty

Features

  • Coating- Corrosion, spatter, and scratch resistant Dragon Scale
  • Ribbing- Full height 6" ribbing engineered to torsional rigidity
  • Holes- All counterbore and chamfered on back sides
  • Side face on the tables are 6" tall with 1 row of holes.
  • The modular leg accessory system provides an extensive range of customization options.
  • 1/2" thick table that shares all the same fixtures as the 1" thick table.
  • Flatness (+/- .005) full length, corner to corner

Leg Option

Leg Height

Table Surface Height

Leveling Pad

Static Load Capacity

Weight

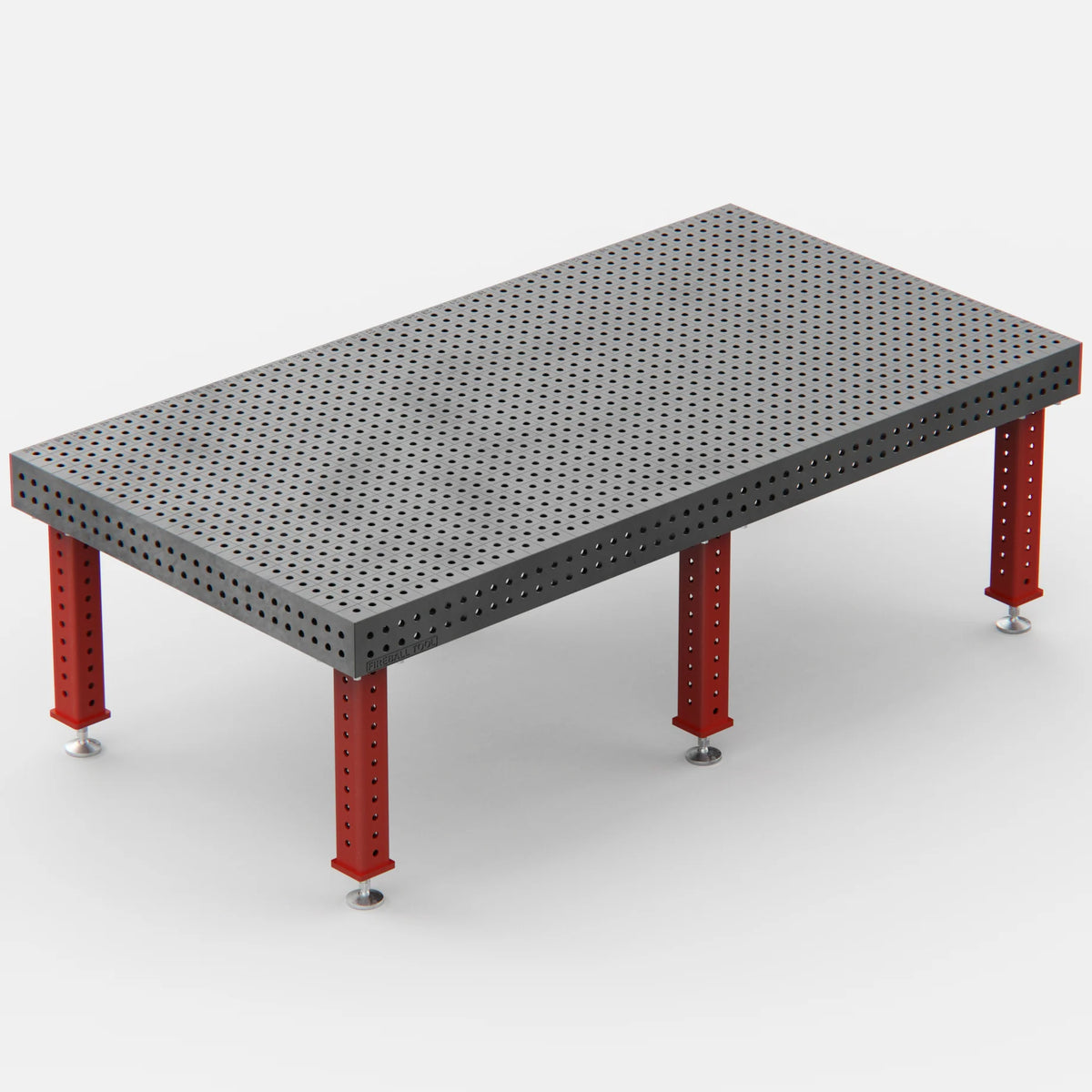

Fixed Height 26" 34" +/- 1" 2,000 lbs 30.8 lbs

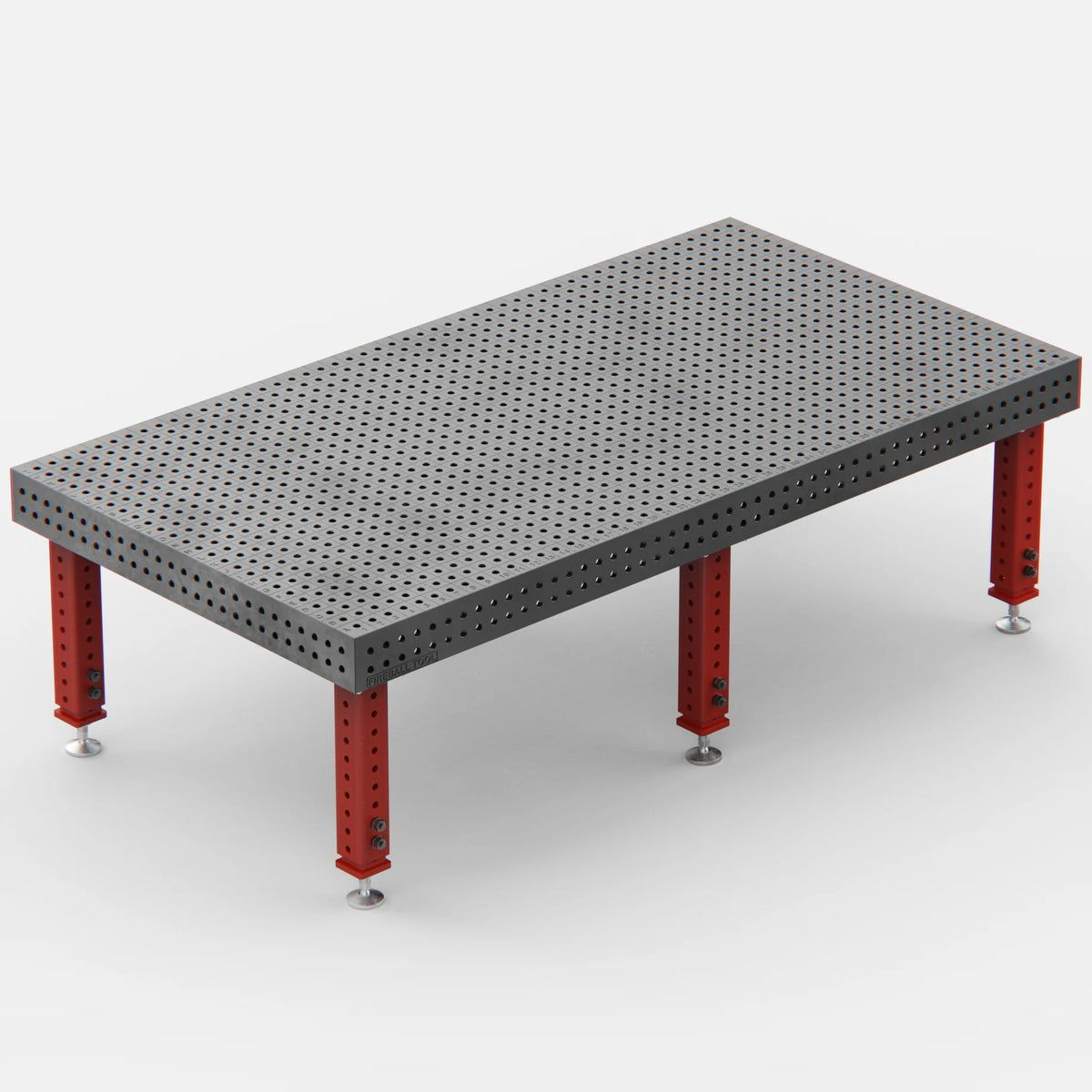

Adjustable Height 24" - 38" 32" - 46" +/- 1" 2,000 lbs 40.7 lbs

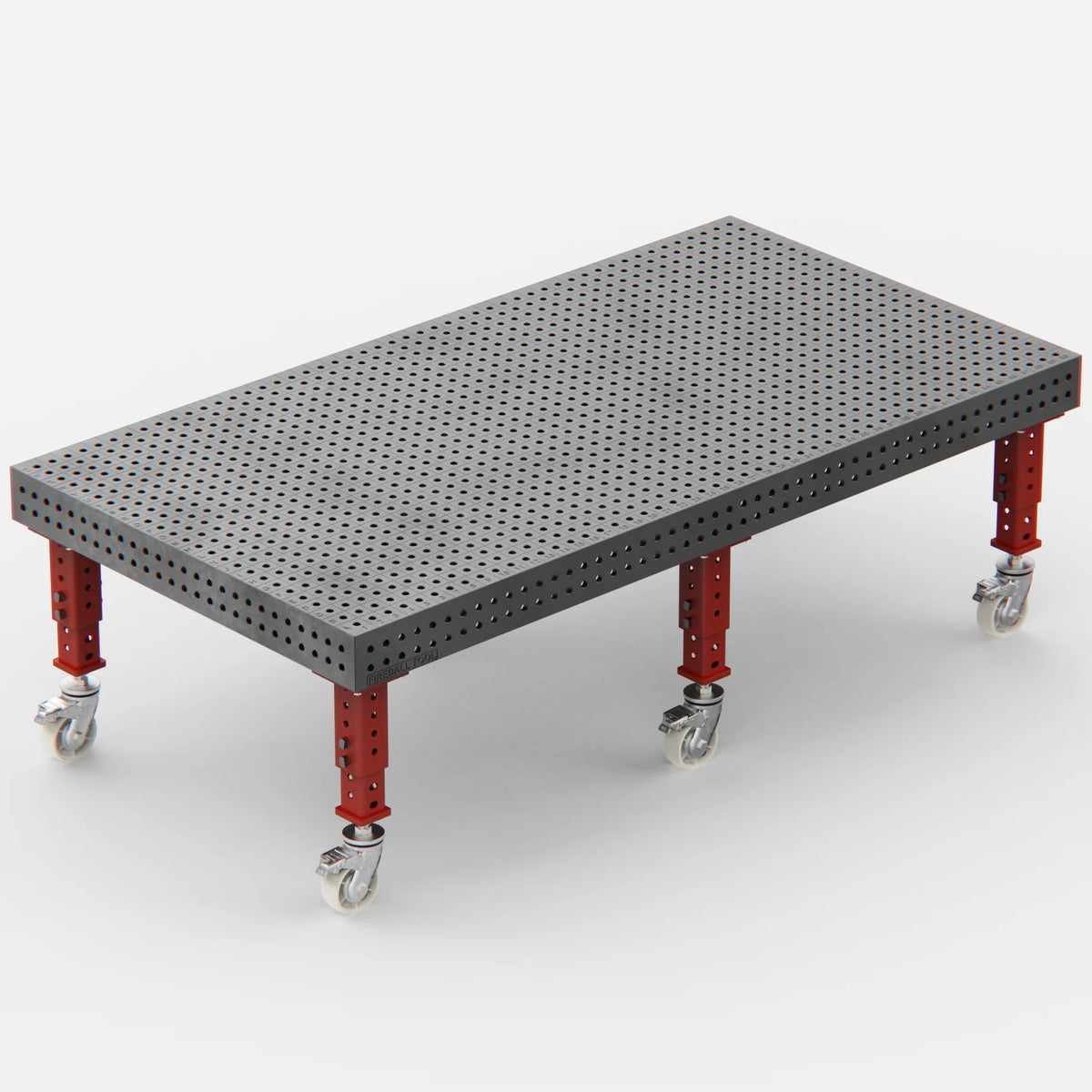

Adjustable Height + Caster 22" - 30" 30" - 35" +/- 1" 1,700 lbs 36.3 lbs
