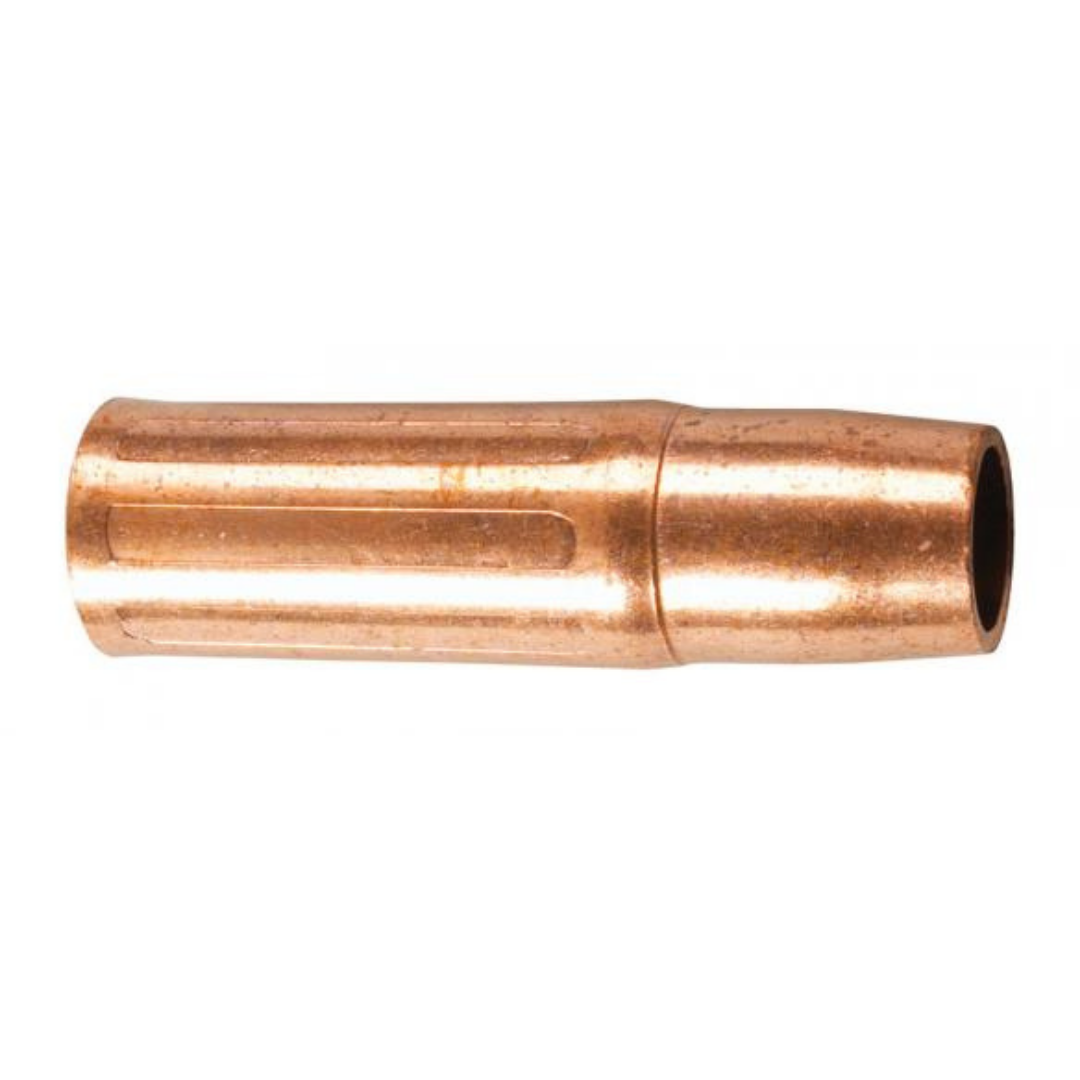

Tweco 23 Series Heavy Duty Nozzles



Professional & Weldskill 23 Series Air Cooled Thread-on Nozzles are offered in Standard, Tapered, and Heavy Duty varieties.

  • Easy identification - Part No. rolled stamped on the outside surface
  • 3-piece design - does not require an additonal insulator
  • Nozzle threads onto the conductor tube assembly
  • Used in medium to heavy duty welding application up to 450 amperes

3-piece nozzle design, includes:

  • Nozzle Housing - Cut and Formed from 122 DHP copper alloy tubing
  • Nozzle Insert - machined from a solid brass allow and machining the internal threads to match the conductor tube OD threads
  • Nozzle insulator - made from G7 silicone material, providing the electrical insulation needed from the gas diffuser

Options:

  • Tweco 23 Series 23H-50 Nozzle (1/2, Heavy Duty) Tip Recess - 1230-1210
  • Tweco 23 Series 23H-75 Nozzle (3/4, Heavy Duty) Tip Recess - 1230-1230
