AXXAIR Circular Saw Blades for Orbital Cutting Machines



These premium High-Speed Steel (HSS) circular saw blades are engineered for precision orbital pipe cutting. Infused with 5% Cobalt (HSS-Co), this series offers exceptional durability, heat resistance, and extended blade life. They are designed to deliver clean, burr-free, and strictly perpendicular cuts on metal tubes without causing material distortion, making them ideal for high-purity welding preparation.

Blade Selection Guide


The AXXAIR "LS" series uses a simple naming convention: the first two digits represent the Outer Diameter (in mm), and the last two digits represent the Number of Teeth. Higher tooth counts are used for thinner walls, while lower tooth counts are optimized for thicker walls.

Part Number Outer Diameter (OD) Number of Teeth
Optimal Wall Thickness

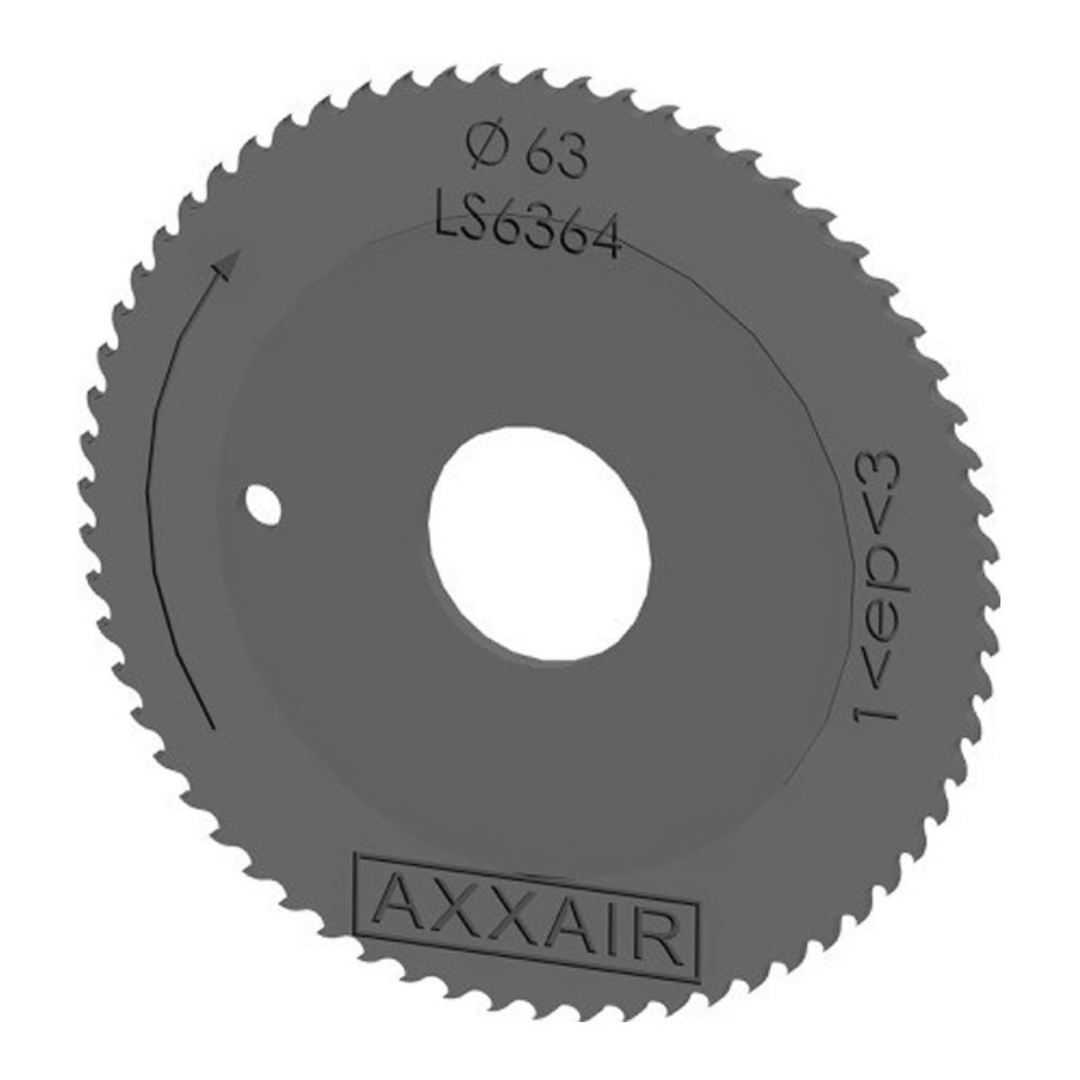

LS6364 63 mm (2.48") 64T
0.040" to 0.118" (1 mm to 3 mm)
LS8080 80 mm (3.15") 80T
0.040" to 0.118" (1 mm to 3 mm)
LS6844 68 mm (2.68") 44T
0.080" to 0.275" (2 mm to 7 mm)
LS8054 80 mm (3.15") 54T
0.080" to 0.275" (2 mm to 7 mm)

Specifications

  • Material: HSS-Co (High-Speed Steel with 5% Cobalt) for superior wear resistance.
  • Arbor (Inner Diameter): 16 mm (Standard for AXXAIR and compatible orbital saws).
  • Blade Width (Thickness): 1.6 mm to 2.0 mm (varies slightly by blade diameter to maintain stability).
  • Cutting Angle: 8° (Optimized for fast, continuous chip removal).

Compatible Machines

  • AXXAIR Orbital Saws: Fully compatible with AXXAIR’s lineup of orbital pipe cutting machines (such as the CC121ECO, CC171ECO, CC221, and 81M series) that accept a 63 mm blade profile.

Options

  • LS6364 - Saw blades for cutting from 0.040" to 0.118" wall thickness (1 to
    3mm)
  • LS6844 - Saw blades for cutting from 0.080" to 0.275" wall thickness (2 to
    7mm)
  • LS8080 - Saw blades for cutting from 0.040" to 0.118" wall thickness (1 to
    3mm)
  • LS8054 - Saw blades for cutting from 0.080" to 0.275" wall thickness (2 to
    7mm)
