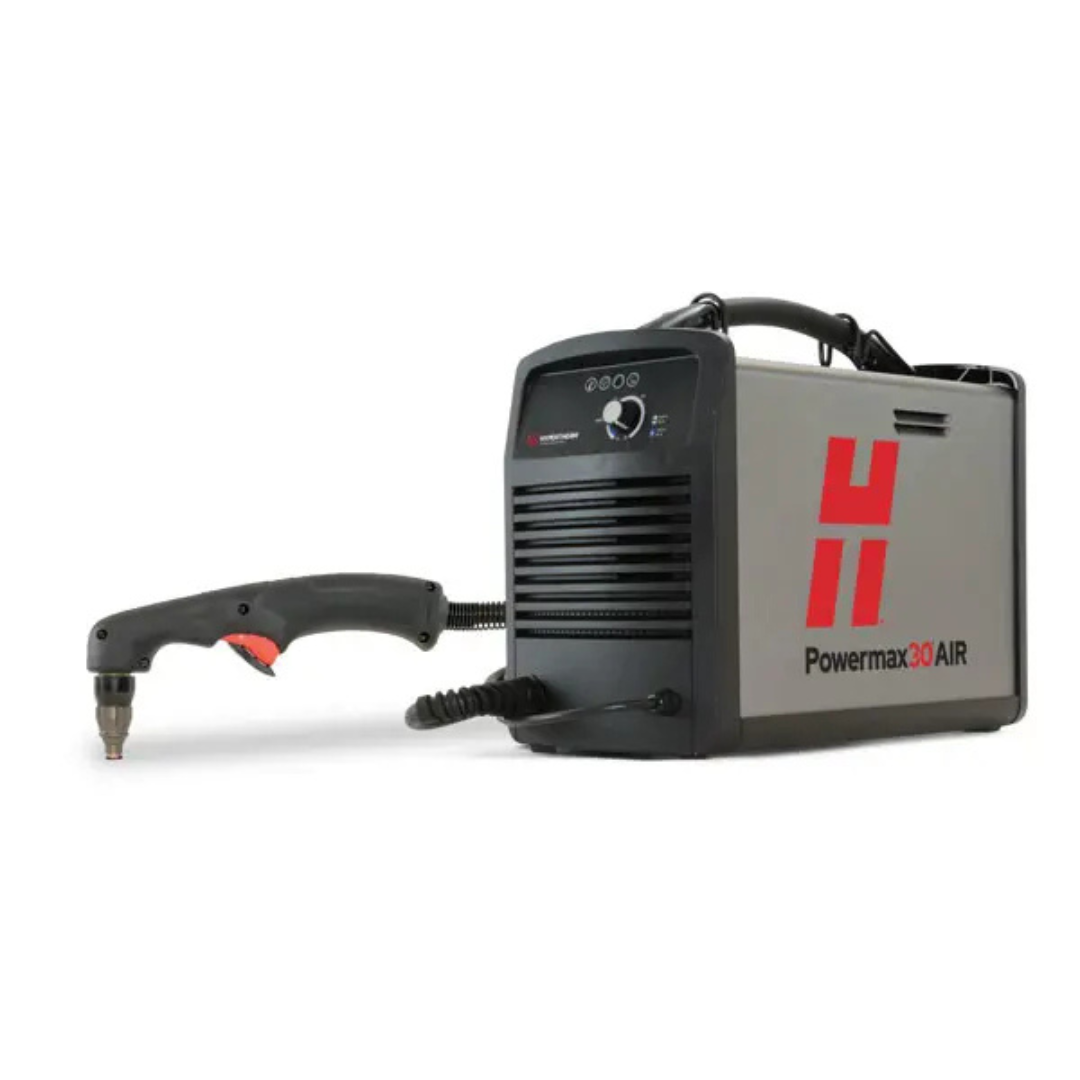

Hypertherm Powermax30 AIR Plasma Cutter



Despite its small size, the Powermax30® AIR delivers big performance. This small air plasma cutter — the smallest, lightest handheld plasma cutter in its class — includes its own built-in air compressor. That's right, it's a small plasma cutter with a built-in compressor so you can use the Powermax30 AIR anywhere there’s single-phase power. Just plug it in, attach the work clamp and you’re ready to cut. It's even dual-voltage. You can use it as a 120 V plasma cutter or at 240 V. Regardless of which power input (120 V or 240 V) you choose, we think you'll agree the Powermax30 AIR is the best plasma cutter with built-in compressor available today.

Features

  • Easy to use: Simplified operations get you cutting quickly and easily
    Small and lightweight, the Powermax30 AIR delivers whenever and wherever you need it
    Quickly cut metal grate or rusted metal without retriggering with the continuous pilot arc feature
  • Versatile: Plug into any 120 or 240 V circuit (convenient Auto-Voltage™ technology and plug adapters included)
    Built-in air compressor allows you to plasma cut anywhere there is single-phase input power
  • Industry-leading reliability: Powermax plasma cutters are known to last decades in the field, minimizing maintenance and downtime
    Torches are engineered for rugged industrial environments
    Each Powermax component is tested to perform reliably in demanding conditions.

Specifications

Recommended Cut Capacity 8 mm (5/16") at 500 mm/min (20 ipm)
10 mm (3/8") at 250 mm/min (10 ipm)
Severance Cut Capacity 16 mm (5/8") at 125 mm/min (5 ipm)
Input voltages 120-240 V, 1-PH, 50/60 Hz
Input current @ 2.5 kW 120-240 V, 1-PH, 29-15 A
Output current 15-30 A
Rated output voltage 83 VDC
Duty cycle @ 40°C (104°F) 35%, 240 V
20%, 120 V
Open circuit voltage (OCV) 256 VDC
Weight with 4,5 m (15') torch 9.5 kg (21.8 lbs)
Dimensions with handles
420 mm (16.5") D; 195 mm (7.7") W; 333 mm (13.1") H
Input power cable length 3 m (10')
Power supply type Inverter - IGBT
Engine drive requirement 5.5 kW for full 30 A output
Electrical efficiency 86%
Warranty Power supply: 6-year, Torch:1-year

What's Included

  • 120–240 V CSA standard power supply
  • 75° handheld torch
  • 4.5 m (15′) torch lead
  • Work cable with hand clamp
  • Product information and operator manuals
