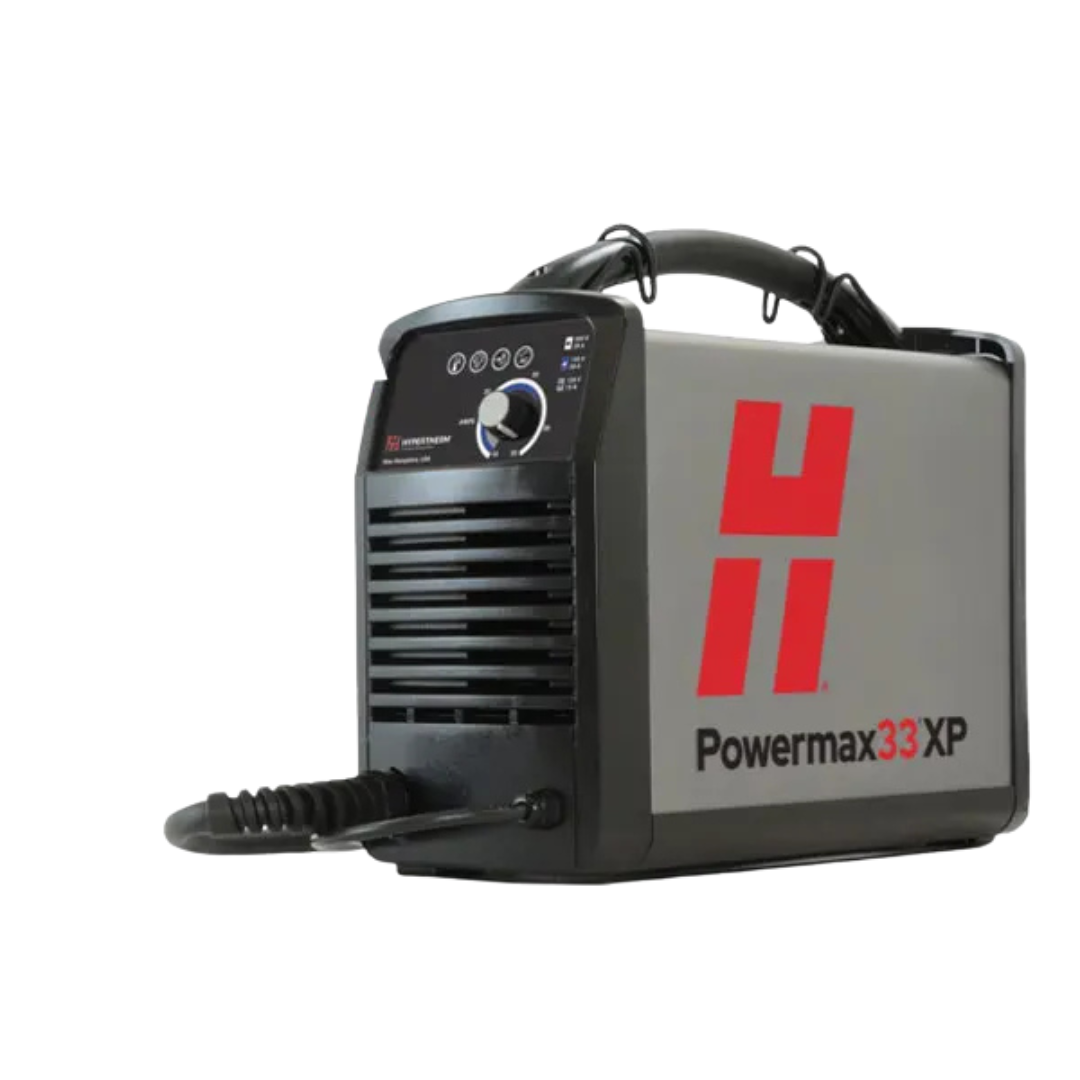

Hypertherm Powermax33 XP Plasma Cutter



The Powermax33® XP is a lightweight, portable system that delivers category-leading power, cut capacity, and quality. A unique “two-in-one” design provides high-power capability for thick-metal cutting up to 20 mm (3/4″) and FineCut® consumables for detailed, thin-metal cutting. In addition to cutting electrically conductive metals such as mild steel, stainless steel, and aluminum, this 33-amp plasma cutter can also gouge metal with HyAccess™ gouging consumables. In addition to 240 V, you can plug the Powermax33 XP into a standard 120 V household socket for maximum versatility and portability. More Power. More Value.

Features

  • Easy to use: System includes everything you need to get you cutting quickly and easily.
    Small size and light weight let you take the Powermax30 XP just about anywhere
    Plug into any 120 or 240 V power (convenient Auto-Voltage™ technology and plug adapters included)
  • Superior performance in a compact package: Fast cutting speeds and excellent cut quality let you finish jobs quicker, with fewer secondary operations.
    Built to withstand heavy-duty use in the most demanding environments
    Relative cut performance on mild steel (chart)
  • “Two-in-one” design for maximum versatility: High-power cutting on thick metal
    FineCut consumables enable high quality cuts on thin metal, leaving a clean edge and a narrow kerf.

Specifications

Recommended Cut Capacity 13 mm (1/2") at 400 mm/min (16 ipm)
16 mm (5/8") at 250 mm/min (10 ipm)
Severance Cut Capacity 20 mm (3/4") at 125 mm/min (5 ipm)
Input voltages 120-240 V, 1-PH, 50/60 Hz
Input current @ 4.1 kW 120-240 V, 1-PH, 24-20.5 A
Output current 15-33 A
Rated output voltage 125 VDC
Duty cycle @ 40°C (104°F) 35%, 240 V
20%, 120 V
Open circuit voltage (OCV) 256 VDC
Dimensions with handles
356 mm (14.0") D; 168 mm (6.6") W; 305 mm (12.0") H
Weight w/ 4,5 m (15') torch CSA: 9.7 kg (21.4 lbs.)
CE: 9.5 kg (21 lbs.)
Gas Supply Clean, dry, oil-free air or nitrogen
Recommended gas inlet flow rate / pressure 113.3 l/min (4 scfm) at 80 psi (5.5 bar)
Input power cable length 3 m (10')
Power supply type Inverter - IGBT
Engine drive requirement 5.5 kW for full 33 A output
Certifications
CSA — certified for use in the Americas and Asia, except China
CE — for use in Europe and other countries where accepted.
Warranty Power supply: 6-year, Torch: 1-year

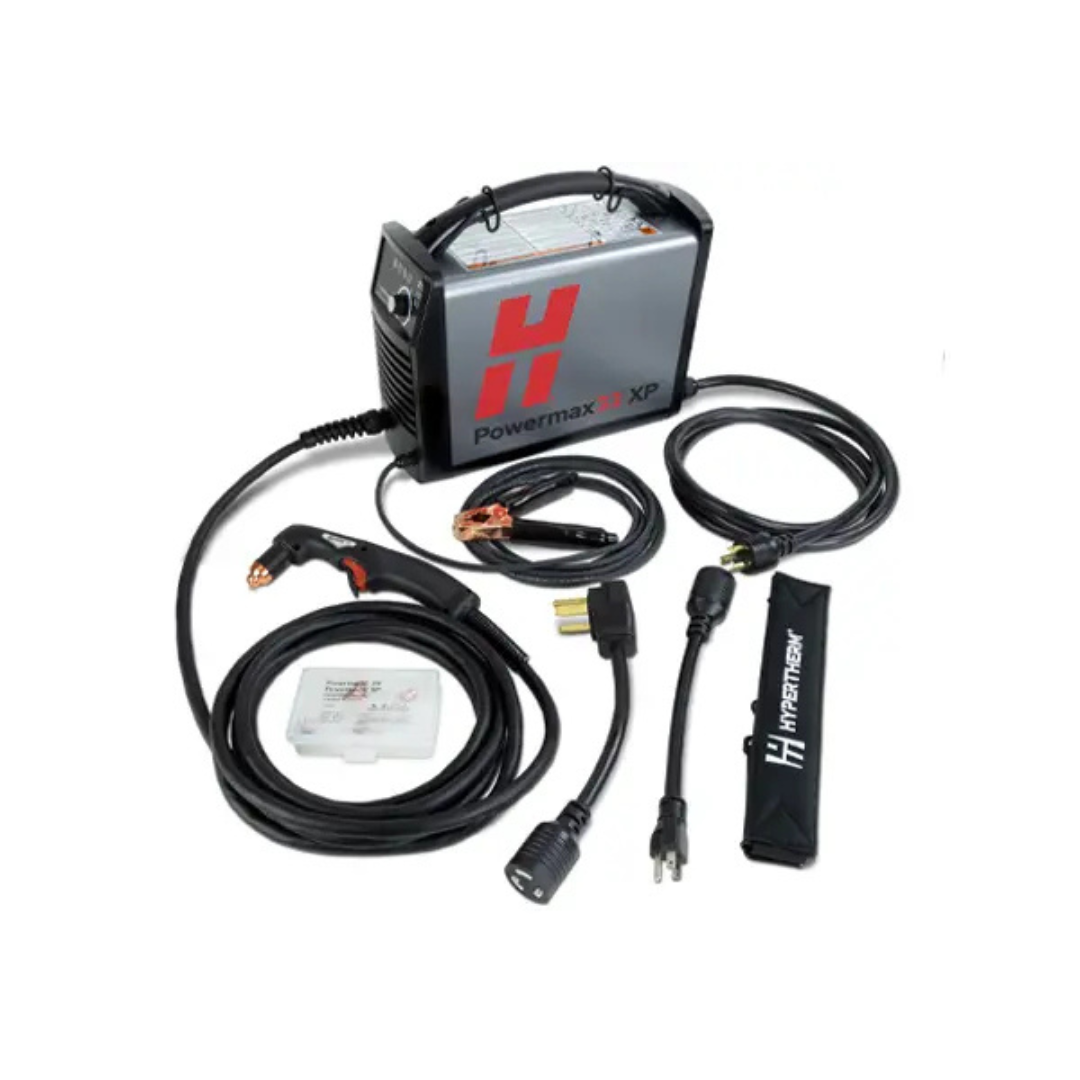

What's Included

  • Power supply, 4,5 m (15') Duramax LT hand torch with standard consumables, 4,5 m (15') work clamp
  • 240 V/20 A plug with adapters for 120 V/15 A and 240 V/20 A circuits (CSA models)
  • Operator and safety manuals
  • Consumable kit with 1 standard nozzle, 1 electrode, 1 FineCut® nozzle and 1 FineCut deflector
  • Carrying strap
