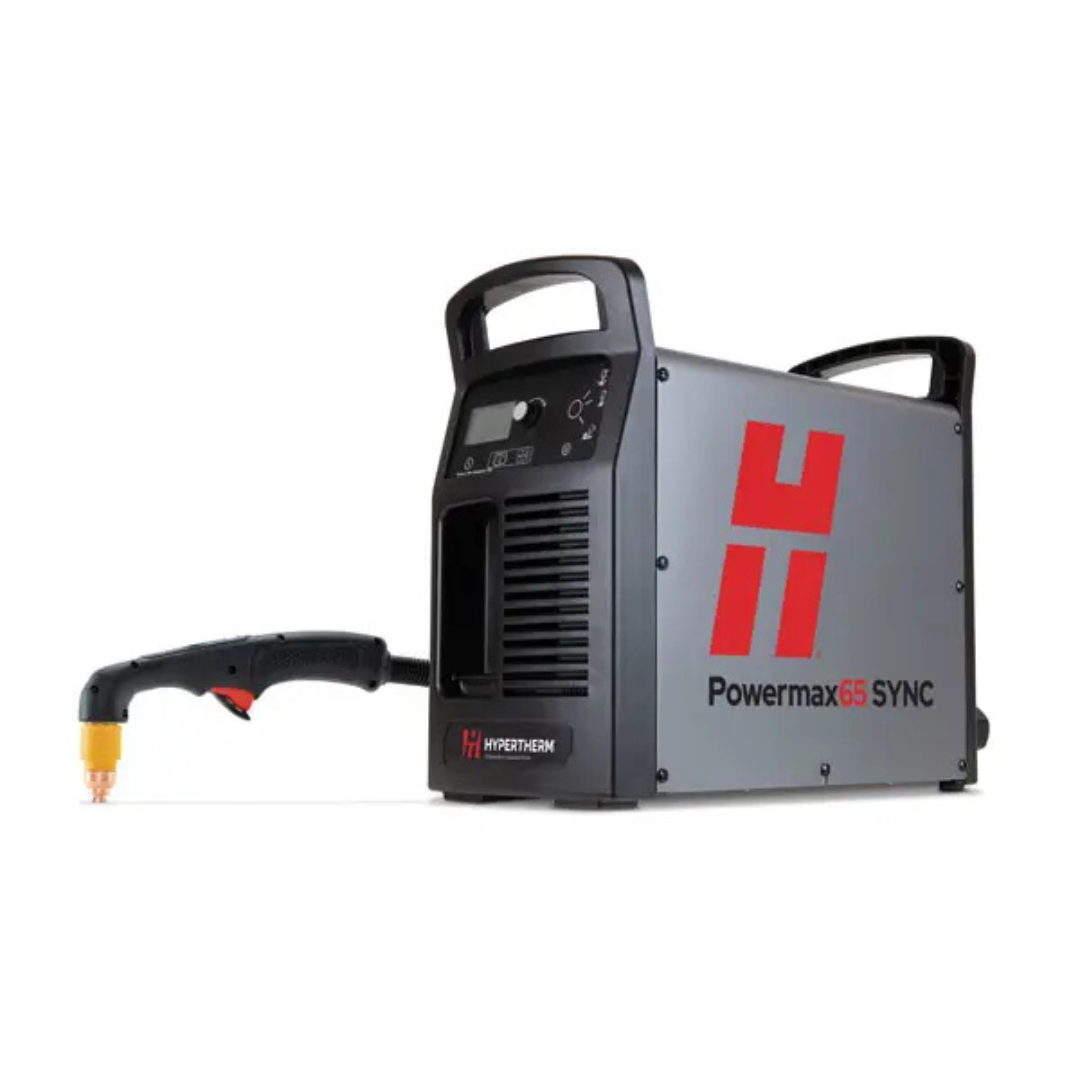

Hypertherm Powermax65 SYNC Plasma Cutter



The Powermax65 SYNC® is a next-generation professional grade air plasma cutter that dramatically simplifies system operation for gouging and recommended cutting up to 20 mm (3/4″). Featuring automated system process set-up via advanced RFID-enabled SmartSYNC® torches and a revolutionary single-piece cartridge consumable that provides trackable utilization data. The Powermax65 SYNC maximizes productivity through reductions in downtime, optimized cut quality performance and streamlined consumable inventory management.

Easy to use

  • Cartridges are easy to identify by process with clear laser marking and color coding to eliminate part mix-ups.
  • RFID-enabled SmartSYNC torches and cartridges automatically set the correct amperage and operating mode, eliminating setup errors.
  • End-of-life consumable detection eliminates the uncertainty of knowing when to change the cartridge.
  • Less operator fatigue when using hand torches with our new flexible lead. The lead has the same robustness of our previous lead jacket material and will also be used on robotic torches.

Minimize operation costs

  • Simplified system operation minimizes the time and costs spent on training and troubleshooting.
  • Reductions to downtime during consumable change-outs and elimination of costs associated with premature disposal of consumable parts.
  • Cartridge usage data provides valuable insights for improving cutting operations and consumable inventory management.

Maximize performance

  • Tackle a wide range of jobs with easily interchangeable torch styles and application specific cartridges for various types of cutting and gouging.
  • Optimized cartridge consumable design provides up to twice the life for handheld cutting and improved quality over life in mechanized setups compared to standard consumables.
  • Time-saving hand torch controls allow the operator to adjust the amperage on the fly, change cartridges and applications without returning to the power supply.

Industry-leading reliability

  • SmartSYNC torches are engineered for rugged, industrial environments.
    SpringStart™ technology ensures consistent starting and a more reliable torch.
    Industry-leading reliability reduces production downtime.

Specifications

Recommended Cut Capacity 20 mm (3/4″) at 500 mm/min (20 ipm)
25 mm (1″) at 250 mm/min (10 ipm)
Severance (Hand Cutting) Capacity 32 mm (1-1/4″) at 125 mm/min (5 ipm)
Pierce 16 mm (5/8″)
Gouge capacity Typical gouge
Metal removal rate 4,0 kg (8.8 lbs.) per hour
Groove profile
2,9 mm D x 6,4 mm W (0.11″ D x 0.25″ W)
Input voltages (± 10%) 200–480 V, 1-PH, 50/60 Hz
200–600 V, 3-PH, 50/60 Hz
Input current @ 9 kW
200/208/240/480 V, 1-PH 52/50/44/22 A
200/208/240/480/600 V, 3-PH 32/31/27/13/13 A
Output current 20–65 A
Rated output voltage 139 VDC
Duty cycle @ 40° C (104° F) 50% @ 65 A, 230–600 V, 1/3-PH
40% @ 65 A, 200–208 V, 1/3-PH
100% @ 46 A, 230–600 V, 1/3-PH
Open circuit voltage (OCV) 295 VDC
Weight with 7.6 m (25′) torch 27.8 kg (61.7 lbs.)
Dimensions with handles 483 mm D; 233 mm W; 430 mm H
(19″ D; 9.2″ W; 17″ H)
Gas supply Clean, dry, oil-free air or nitrogen
Recommended inlet gas flow rate
Cutting: 210 I/min @ 5.9 bar (450 scfh, 7.5 scfm @ 85 psi)
Gouging: 210 I/min @ 4.8 bar (450 scfh, 7.5 scfm @ 70 psi)
Electrical efficiency 91.20%
Recyclability 100%
Warranty Power supply: 6-year
Torch: 1-year


What's Included

  • 200-600V 1/3-Phase CSA standard power supply
  • 75° handheld SmartSYNC torch
  • 7.6 m (25′) torch lead
  • Work cable with hand clamp
  • Product information and operator manuals
