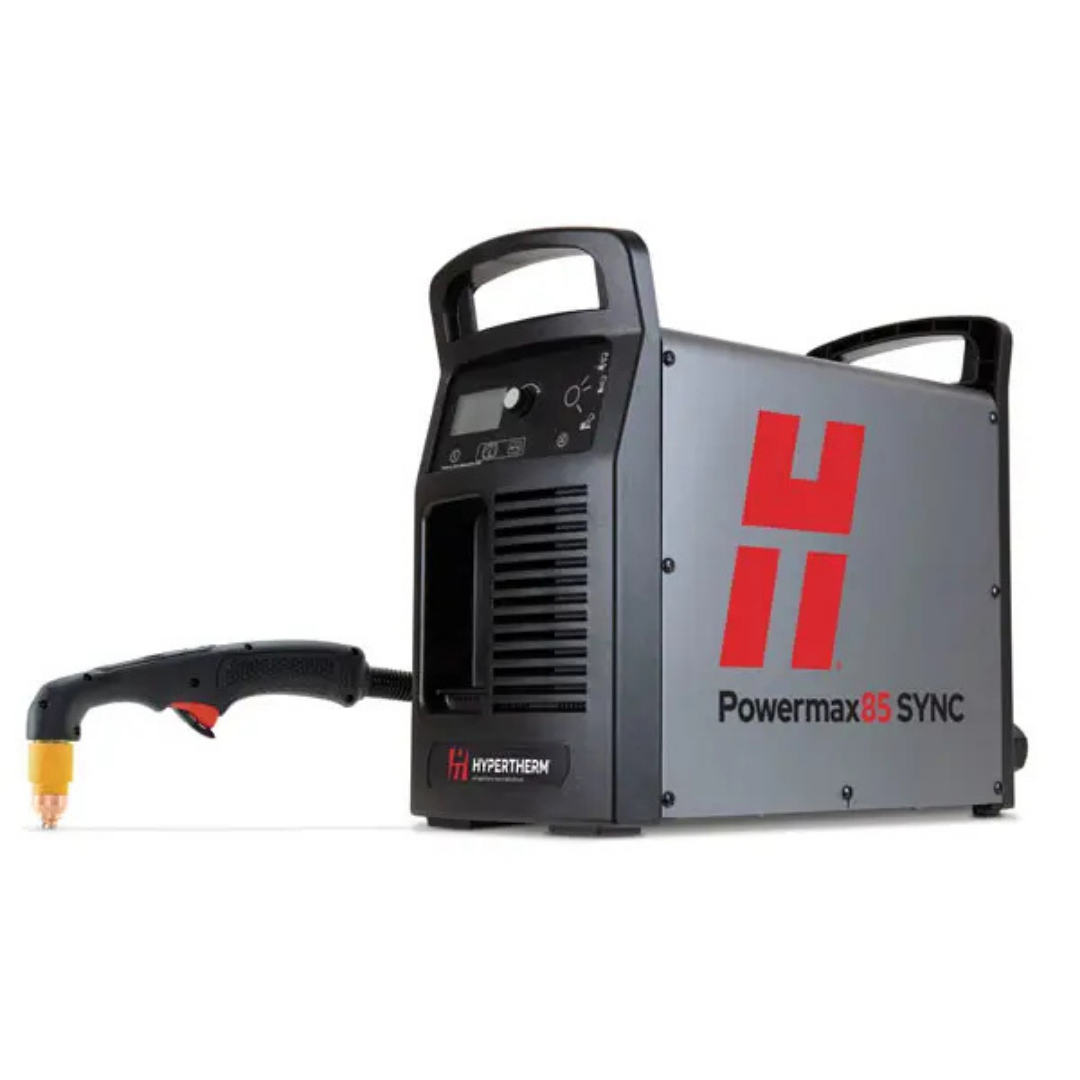

Hypertherm Powermax85 SYNC Plasma Cutter


The Powermax85 SYNC® is a next-generation professional grade air plasma cutter that dramatically simplifies system operation for gouging and recommended cutting up to 25 mm (1″).

Features automated system process set-up via advanced RFID-enabled SmartSYNC® torches and a revolutionary single-piece cartridge consumable that provides trackable utilization data. The Powermax85 SYNC maximizes productivity through reductions in downtime, optimized cut quality performance and streamlined consumable inventory management.

Maximum productivity

  • Finish jobs faster with cut speeds five times greater than oxyfuel on 12 mm (1/2”) mild steel
  • Superior cut and gouge quality let you spend less time on grinding and edge preparation100% duty cycle maximizes your cutting time
  • Multiple, easy-to-use torch styles let you tackle a wide variety of jobs using the same system

Easy-to-use for cutting and gouging

  • No need to change the air pressure – Smart Sense™ technology ensures that it is always correctly set
  • SpringStart™ technology ensures consistent starting and a more reliable torch
  • Drag cut at full output with a patented shield that reduces dross buildup for smoother cutting

Lower operating costs

  • Consumable life up to four times longer than other systems in this amperage range
  • Electrode end-of-life detection protects the torch and workpiece from damage by automatically stopping power when the electrode is overused

Built to handle tough jobs

  • Hypertherm Certified™ reliability ensures peak performance even in the harshest environments
  • Duramax HyAmp torches are designed for high-impact and heat resistance

Options:

  • Powermax 85 SYNC, 25' Torch - 600 V CSA power supply - 087183

Specifications

Recommended Cut Capacity 25 mm (1″) at 500 mm/min (20 ipm)
32 mm (1-1/4″) at 250 mm/min (10 ipm)
Severance (Hand Cutting) Cut Capacity
38 mm (1-1/2″) at 125 mm/min (5 ipm)
Pierce 20 mm (3/4″)
Gouge capacity Typical gouge
Metal removal rate 8,2 kg (18.2 lbs.) per hour
Groove profile
3,5 mm D x 6,6 mm W (0.14″ D x 0.26″ W)
Input voltages (± 10%)

200–480 V, 1-PH, 50/60 Hz

200–600 V, 3-PH, 50/60 Hz
Input current @ 12.2 kW

200/208/240/480 V, 1-PH 70/68/58/29 A

200/208/240/480/600 V, 3-PH 42/40/35/18/17 A
Output current 25–85 A
Rated output voltage 143 VDC
Duty cycle @ 40° C (104° F) 100% @ 66 A, 230–600 V, 1/3-PH
Open circuit voltage (OCV) 305 VDC
Weight with 7,6 m (25′) torch 32 kg (67 lbs.)
Dimensions with handles

483 mm D; 233 mm W; 430 mm H

(19″ D; 9.2″ W; 17″ H)
Gas supply Cutting: air (clean, dry, oil-free air), nitrogen
Recommended gas inlet
flow rate/pressure

 Cutting: 210 I/min @ 5.9 bar (450 scfh, 7.5 scfm @ 85 psi)

Gouging: 210 I/min @ 4.8 bar (450 scfh, 7.5 scfm @ 70 psi)
Input power cable length 3 m (10′)
Power supply type Inverter – IGBT
Engine drive requirement 20 kW or 25 kVa for full 85 A output
Electrical efficiency 91.9%
Recyclability 100%
Warranty Power supply: 6-year, Torch: 1-year


What's Included:

  • 200-600 V CSA standard power supply
  • 75° handheld torch w/consumables
  • Work Lead 7.6m (25') lead and Ground Lead
  • Product Manual
