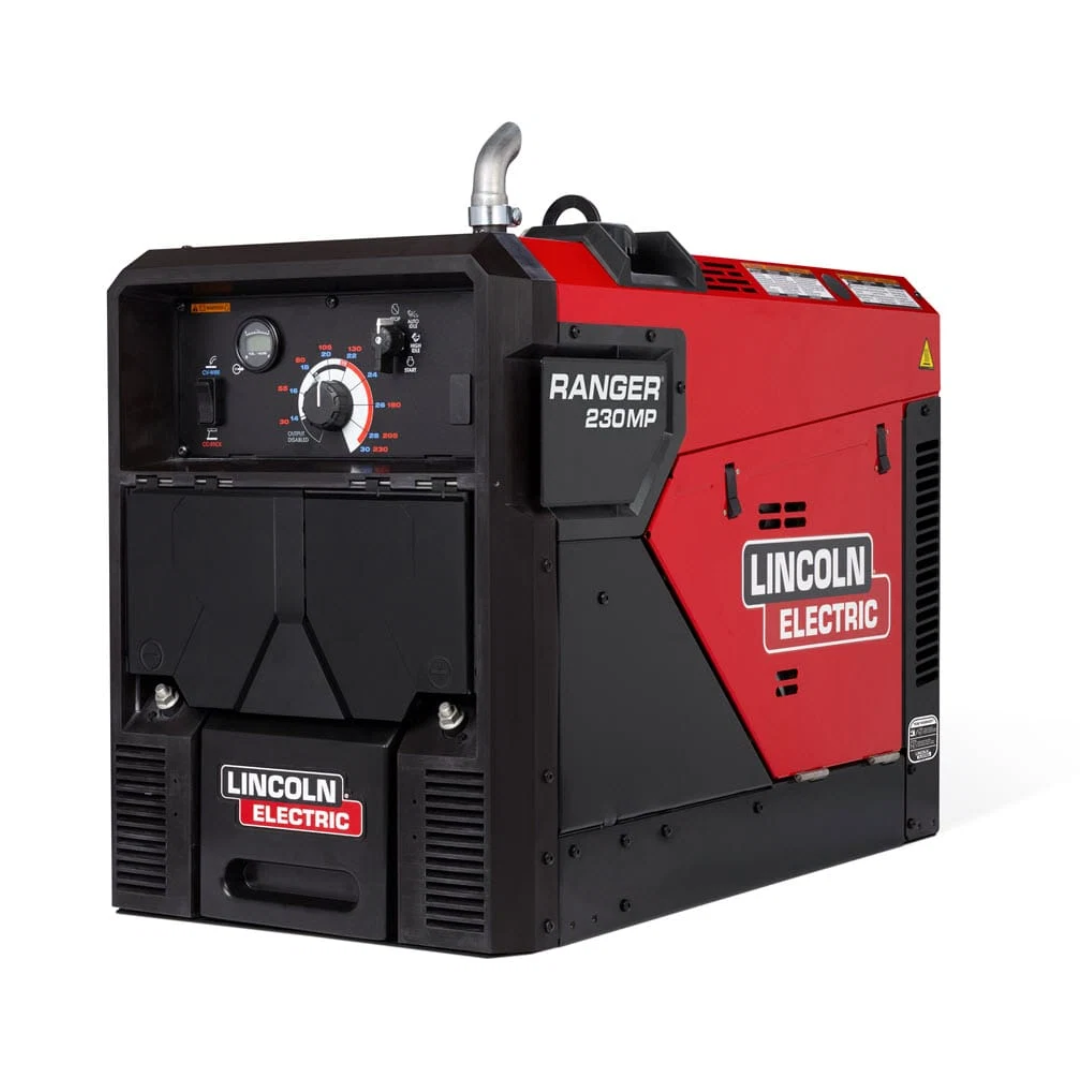

The Ranger® 230MP™ is a compact multi-process welder generator for crews that want simple setup, dependable output, and jobsite-ready generator power. Straightforward controls and a single, glove-friendly knob keeps the focus on the work, not the machine.
Running cooler, quieter, and longer, its reduced-weight, balanced design enhances jobsite mobility. Consistent, dependable output ensures reliable power with seamless transitions between welding and generator use.

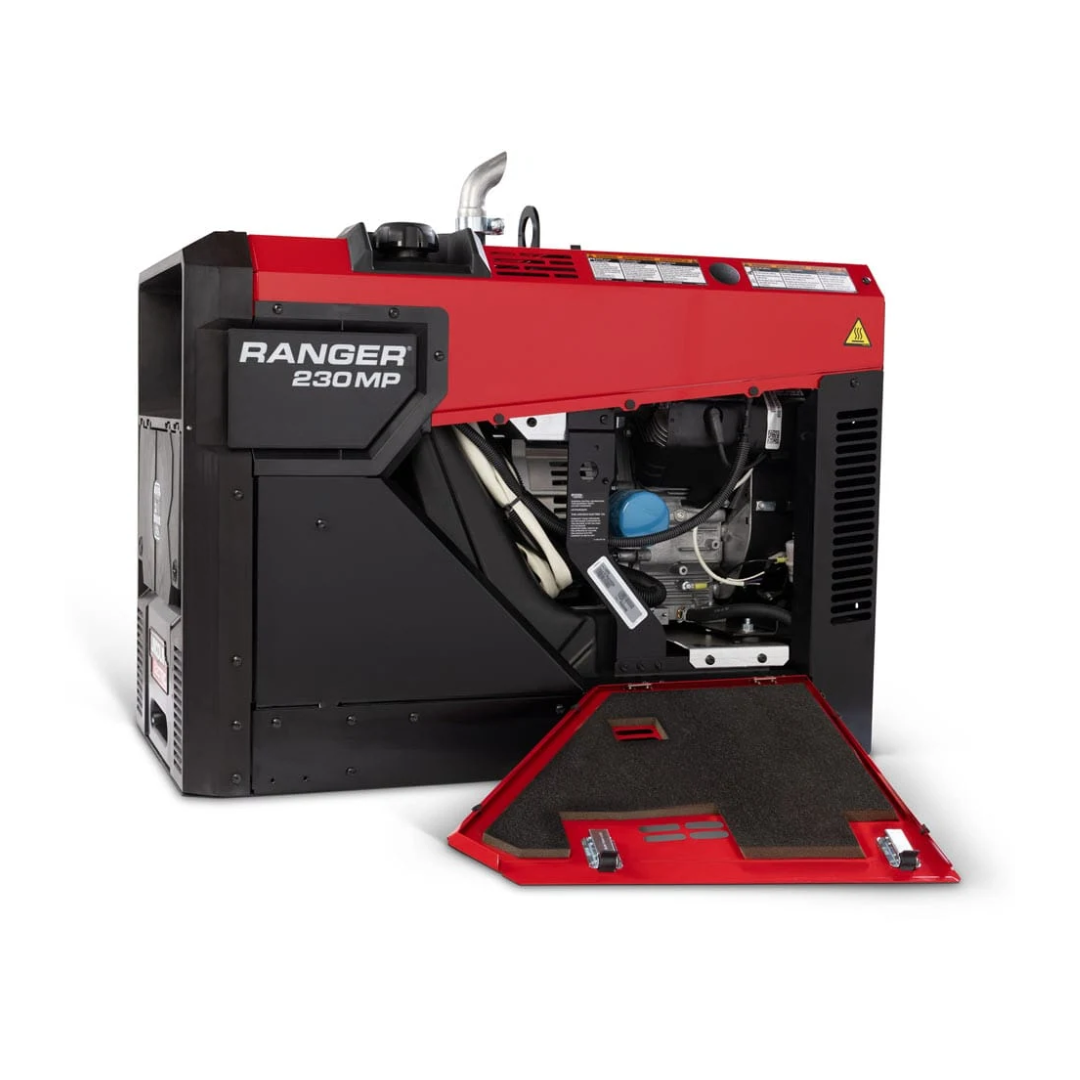

Designed for ease of maintenance, a rear engine layout now gives unmatched access to key service parts. All MPs come factory filled with 300-hour premium oil to maximize runtime and are equipped with an electric fuel pump for reliable fueling.
Product Specifications |
|
| Product Name | Ranger® 230MP |
| Product Number | K5938-1 |
| IEC Rating @ 100% | 204A/28.2V CC/Stick 227A/25.4V CV/Wire |
| Output Range | 35-230A (CC), 15-30V (CV) |
| OCV Max | 85VDC |
| Generator Power | 10,500W (Peak), 9,500W (Continuous) |
| Voltage (Single Phase) | 120/240V AC |
| Receptacles | 14-50R Full kVA (40A @ 240VAC / 40A @ 120V ea branch), 5-20 (20A @ 120VAC total, GFCI protected) |
| Engine (Make & Model) | Rehlko CH730 |
| Engine Power | 23.5hp |
| Engine Displacement | 725 cc (44 in³) |
| Idle Speed | 2,500 RPM, 3,600 RPM (High Idle Speed) |
| Fuel System | Gasoline with electric fuel pump, 10% maximum ethanol |
| Fuel Capacity | 11 gallon (42 l) |
| Battery | 12V Group 26 500 CCA |
| Dimensions (HxWxD) | 26.4 x 20 x 36.4 in (671 x 508 x 924 mm) |
| Weight | 426 lbs (194 kg) |
