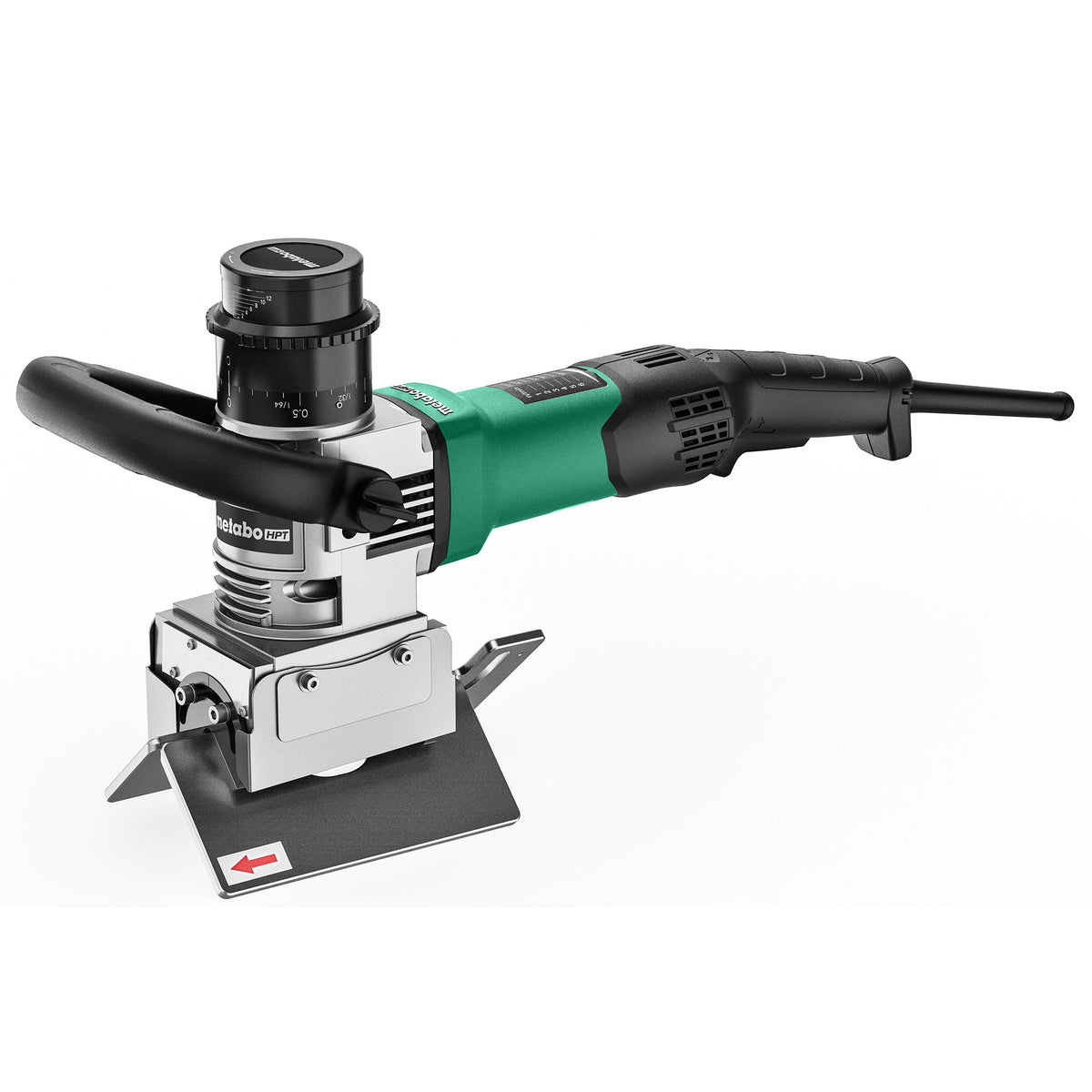

    Metabo 5/8" KFMVP 17-15 F Metal Beveling Tool


    The Metabo HPT KFMVP 17-15 F Variable Speed Metal Beveling Tool is designed and manufactured in Germany for fast, clean, and safe weld seem preparation for chamfer heights up to 5/8" to 45°. Its universal milling head with three (3) indexable carbide inserts allows for chamfer angles from 0° to 90°, and the carbide inserts that can easily switched as needed. Heat produced during the removal process transfers to small metal chips rather than the base material to minimize damage and stress to the work piece.
    The patented One-Touch controller allows for tool-free depth adjustment in 0.1mm/0.004" increments to achieve superior results. The motor is equipped with Electronic Speed Stabilization maintains almost constant speed under load, ad well as electronic soft start and power interruption restart protection. A Variable Speed dial allows for adjustment from 6,200 - 12,600 RPM for working in a variety of materials. The tool is designed with a rear rattail handle for comfort and control with a non-locking switch that shuts off the motor when released. An adjustable loop handle on the front of the tool allows for working in multiple positions.

    Features

    • SAFER BEVELING: Reduced risk compared to traditional methods
    • MORE CONTROL: Precise depth and angle adjustment
    • FLEXIBLE: Variable speed for optimal performance
    • LONGLIFE MOTOR: With extended carbon brush life
    • ONE-TOUCH CONTROLLER: Patented, tool-free setting of the cutting depth in 0.004"/1mm increments; stop points for short setting times and protection against unintentional depth adjustment
    • NON-LOCKING SWITCH: For increased safety and comfort
    • PROTECTION: Electronic soft start and power loss restart protection
    • LARGE-SURFACE GUIDE PLATES: For controlled work and precise setting of chamfer angle - 0-90°
    • VARIO-TACHO-CONSTAMATIC (VTC) - FULL WAVE ELECTRONICS: For maintaining almost constant speed even under load
    • PIPE FOLLOWING ROLLER: To guide along pipes for easy weld preparation
    • LOOP HANDLE: Adjusts without tools for secure even guiding

    Specifications

    No-load speed
    6200-12000 rpm
    Rated input power 1700 W
    Output power 880 W
    Types of edges Chamfer
    Chamfer angles 0-90°
    Max. chamfer width 45°
    21 mm / 13/16"
    Max. chamfer height at 45°
    15 mm / 19/32"
    Grading of cutting depth setting
    0.1 mm / 0.00394"
    Curves smallest outer
    100 mm / 3-15/16"
    Weight (without power cable)
    6.3 kg / 13.8 lbs
    Cable length 3.9 m / 13"

    Includes

    • (1) 5/8" KFMVP 17-15 Metal Beveling Tool
    • 3 Carbide indexable inserts Universal
    • Screwdriver SW 4 with T-handle
    • Open-jawed spanner SW 10
    • Bow-type handle
    • metaBOX 185 XL
    • Stop roller
    • Screwdriver for Torx screws 15

    Part Number - 646771620
