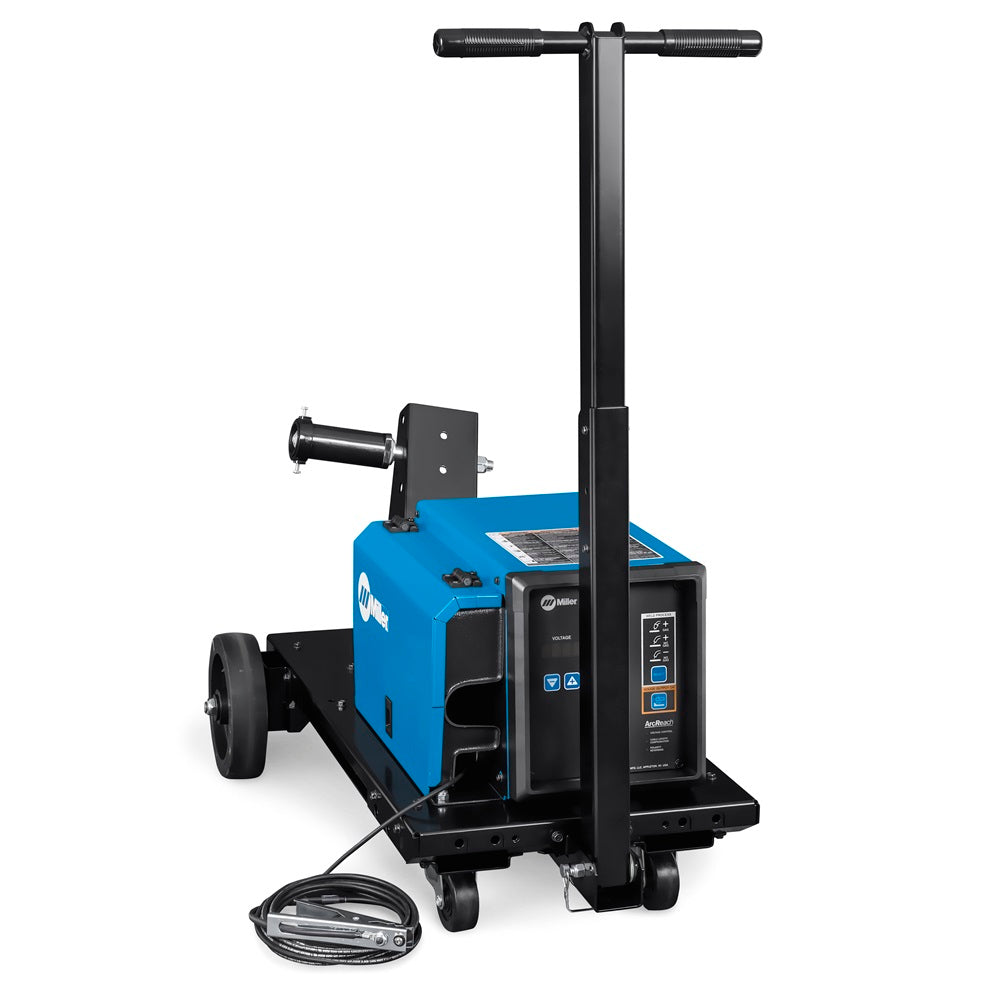

Miller ArcReach 16 Wire Feeder Shop Cart Package
Miller ArcReach 16 Wire Feeder Field Roller Package
Miller ArcReach 16 Wire Feeder Front
Miller ArcReach 16 Wire Feeder Rollers
Miller ArcReach 16 Wire Feeder Rear
Miller Logo

Miller ArcReach 16 Wire Feeder

$9,017.00
$9,017.00
0% OFF Épuisé
Available to Ship Typically ships in 5–10 business days
Non Stock Item - 2 Week Lead Time Required
Upsell Product Image-1

CK Worldwide 2,0% Lanthana (bleu) en tungstène

$5.70
Upsell Product Image-5

Coupes d'alumine d'objectif à gaz 2/4 de la série 2/4

$2.90
Upsell Product Image-6

CK Worldwide Layzr (Chartreuse) Tungsten

$5.70
Upsell Product Image-8

CK Worldwide 2% thorié (rouge) Tungstten

$5.70

Miller ArcReach 16 Wire Feeder



The ArcReach® 16 is a heavy-duty, voltage-sensing wire feeder designed to maximize productivity in the most demanding environments like shipbuilding, construction, and heavy manufacturing. By utilizing Miller’s game-changing ArcReach technology, operators can adjust weld parameters at the feeder without the need for a control cord, significantly reducing downtime and improving jobsite safety.

Features

  • ArcReach® Technology: Provides complete control of the power source at the wire feeder through the existing weld cable. No control cords are required, eliminating a common cause of equipment failure and trip hazards.
  • Easy Process Changeover: Switch between welding and gouging with a simple button push on the feeder. The integrated gouging stud allows for quick connection at the point of use.
  • Cable Length Compensation (CLC™): Automatically adjusts the voltage based on the length of the weld cables to ensure the voltage you set at the feeder is the voltage you get at the arc.
  • Superior Wire Feed Accuracy: A heavy-duty drive motor with tachometer control provides consistent wire feed speed from the start of the weld to the finish, even with large-diameter wires.
  • High-Capacity Productivity: Supports large wire spools up to 60 lbs (27.2 kg) and wire diameters up to 3/32 in. (2.4 mm) to minimize spool changes.
  • Durable & Rugged: Rated IP23 for protection against solid objects and water spray. Includes a wide voltage range (12–110 VDC) to handle small and large wires without contactor chatter.

Available Configurations and Part Numbers
Part Number Model / Configuration Weight
301619 ArcReach 16 (Base Feeder) 101 lb. (45.8 kg)
301663 Feeder w/ Integrated Field Roller 123 lb. (55.7 kg)
301664 Feeder w/ Shop Cart 120 lb. (54.4 kg)
951000065 Feeder w/ Shop Cart & BTB 500 Gun 125 lb. (56.7 kg)
Note: Drive rolls and MIG guns are generally sold separately to allow for customization based on your specific wire type and diameter, unless purchased as part of a bundled package (e.g., #951000065)

Compatibility

  • Compatible with ArcReach power sources:
  • XMT 350 FieldPro™ Series
  • XMT 400 ArcReach®
  • XMT 450 CC/CV ArcReach®
  • XMT 650 ArcReach®
Feature Specification
Input Connections Open Circuit Voltage (OCV): 12–110 VDC
Wire Feed Speed 50–780 ipm (1.3–19.8 m/min)
Wire Diameter Capacity Solid: .035–5/64 in (0.9–1.9 mm)
Flux-Cored: .045–3/32 in (1.1–2.4 mm)
Max Spool Size Capacity 18 in (457 mm) diameter / 60 lb (27.2 kg)
Input Welding Circuit Rating 600 Amps at 60% Duty Cycle
Dimensions H: 18.5 in (470 mm)
W: 13 in (330 mm)
D: 31 in (787 mm)
Enclosure Rating IP23 Resistant
Standard Warranty Miller True Blue® 3-Year

ArcReach Feeders Data Sheet
