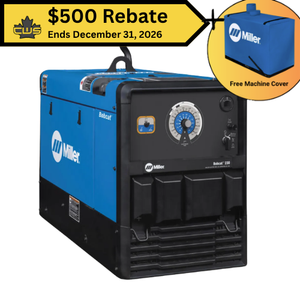

Miller Bobcat 230 Engine Driven Welder (Vanguard Edition)

$9,215.00
Upsell Product Image-7

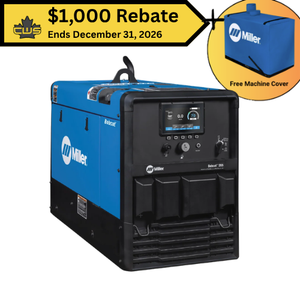

Miller Bobcat 265 (Kohler) w/ Remote Start/Stop - 907826

$10,830.00
Upsell Product Image-8

Miller Bobcat 265 Air Pak w/Battery Charge/Crank Assist - 907876

$20,463.00

Miller Big Blue 500 Pro ArcReach, Kubota



The Miller® Big Blue® 500 Pro Deluxe (Stock No. 907736001) is a heavy-duty, low-speed diesel engine-driven welder built for high-demand job sites and harsh industrial environments. Powered by a 48.9 HP Kubota V2403 Tier 4 Final liquid-cooled engine, this multiprocess system delivers up to 500 A of DC welding output alongside up to 20,000 W of continuous 3-phase auxiliary power.

As a factory-equipped Deluxe model, this unit comes pre-installed with ArcReach® technology, a toolless polarity reversing switch, and a heavy-duty vandalism lockout kit.

Key Features

  • ArcReach® Technology: Change process settings and adjust parameters directly at the wire feeder or remote control over standard weld cables—eliminating control cords and reducing unnecessary trips to the truck.
  • Polarity Reversing Switch: Quickly change DC welding polarity on the fly without tools or manual cable changeovers.
  • Dynamic DIG™ Technology: Time-based arc control algorithm automatically optimizes metal deposition, allowing independent control over weld puddle fluidity and arc drive.
  • High Auxiliary Output: Delivers 27,000 W peak / 20,000 W continuous 3-phase power, or 15,000 W peak / 12,000 W continuous 1-phase power to operate extra job site tools or additional inverter welders.
  • SunVision™ Digital Meters: Dual digital meters remain clear and readable at virtually any angle, even in direct sunlight.
  • Electronic Engine Display: Simultaneously displays fuel level, engine hours, coolant temperature, oil pressure, battery voltage, and engine RPM while tracking service intervals and diagnostic codes.
  • Kubota® Tier 4 Final Engine: Low-speed diesel engine utilizes Diesel Oxidation Catalyst (DOC) technology for clean operation with zero exhaust aftertreatment maintenance.
  • Industrial USB Port: Upload software updates and download machine performance log files via standard USB drive.
  • Low OCV (VRD) Mode: Reduces open-circuit voltage to 30 V when the power source is idle to enhance operator safety.
  • Quiet Job Site Performance: Operates at a low sound level of 65.9 dB at idle and 74.3 dB under weld load (measured at 23 ft / 7 m).
Specification Details
Model Name / Stock No. Big Blue® 500 Pro (USA Deluxe Model) – Stock No. 907736001
Engine Brand & Model Kubota V2403
Engine Type Turbo-charged 4-cylinder liquid-cooled industrial diesel
Compliance / Emissions EPA Tier 4 Final compliant
Horsepower 48.9 HP
Engine Speeds Idle: 1,350 rpm | Weld: 1,800 rpm
Sound Levels at 23 ft. (7 m) Idle: 65.9 dB | Weld: 74.3 dB
Output Range DC Stick/TIG: 20–500 A | DC MIG/FCAW: 14–50 V
Rated Weld Output
(at 104°F / 40°C) 		CC/DC (Stick/TIG):
• 400 A at 36 V, 100% duty cycle
• 450 A at 38 V, 100% duty cycle
• 500 A at 40 V, 100% duty cycle

CV/DC (MIG/FCAW):
• 450 A at 33 V, 60% duty cycle
• 500 A at 30 V, 40% duty cycle
Max Open-Circuit Voltage 92 VDC (30 VDC sense voltage / low OCV stick VRD)
3-Phase Auxiliary Power 27,000 W peak, 20,000 W continuous
1-Phase Auxiliary Power 15,000 W peak, 12,000 W continuous
Fuel Tank Capacity 25 gal. (95 L)
Oil Capacity 10 qt. (9.5 L)
Coolant Capacity 9 qt. (8.5 L)
Dimensions Height: 46 in. (1,168 mm) (add 7.5 in. / 191 mm for exhaust pipe)
Width: 28.5 in. (724 mm)
Depth: 69.5 in. (1,765 mm)
Net Weight 1,750 lb. (793.8 kg)
(add 51 lb. / 23 kg for shipping weight
add 165 lb. / 75 kg with full fuel tank)

Non Stock Item, Not Eligible for free shipping. - Please contact support@canadaweldingsupply for accurate lead time and freight cost
