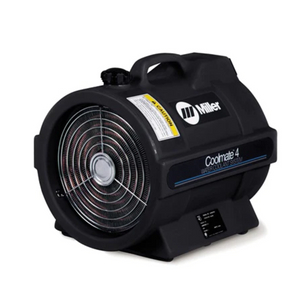

Miller 042288 Coolmate ™ 4 refroidisseur d'eau

$3,595.00
Upsell Product Image-2

Miller 043007 Coolmate ™ 3 refroidisseur d'eau

$3,419.00
Upsell Product Image-3

Miller 301616 Coolmate® 1.3 115 V, CE

$3,089.00
Upsell Product Image-5

Système de refroidissement de la torche Tig-er Tig-Er Dynaflux

$1,470.50
Upsell Product Image-6

Système de refroidissement de la torche Dynaflux R1100V

$2,104.50
Upsell Product Image-7

Lincoln Electric Cool-ARC 40 refroidisseur d'eau 115/1/50/60 - K1813-1

$3,913.00
Upsell Product Image-8

Fronius Torch Water Refracte Unit Cu 600T MV

$2,038.20

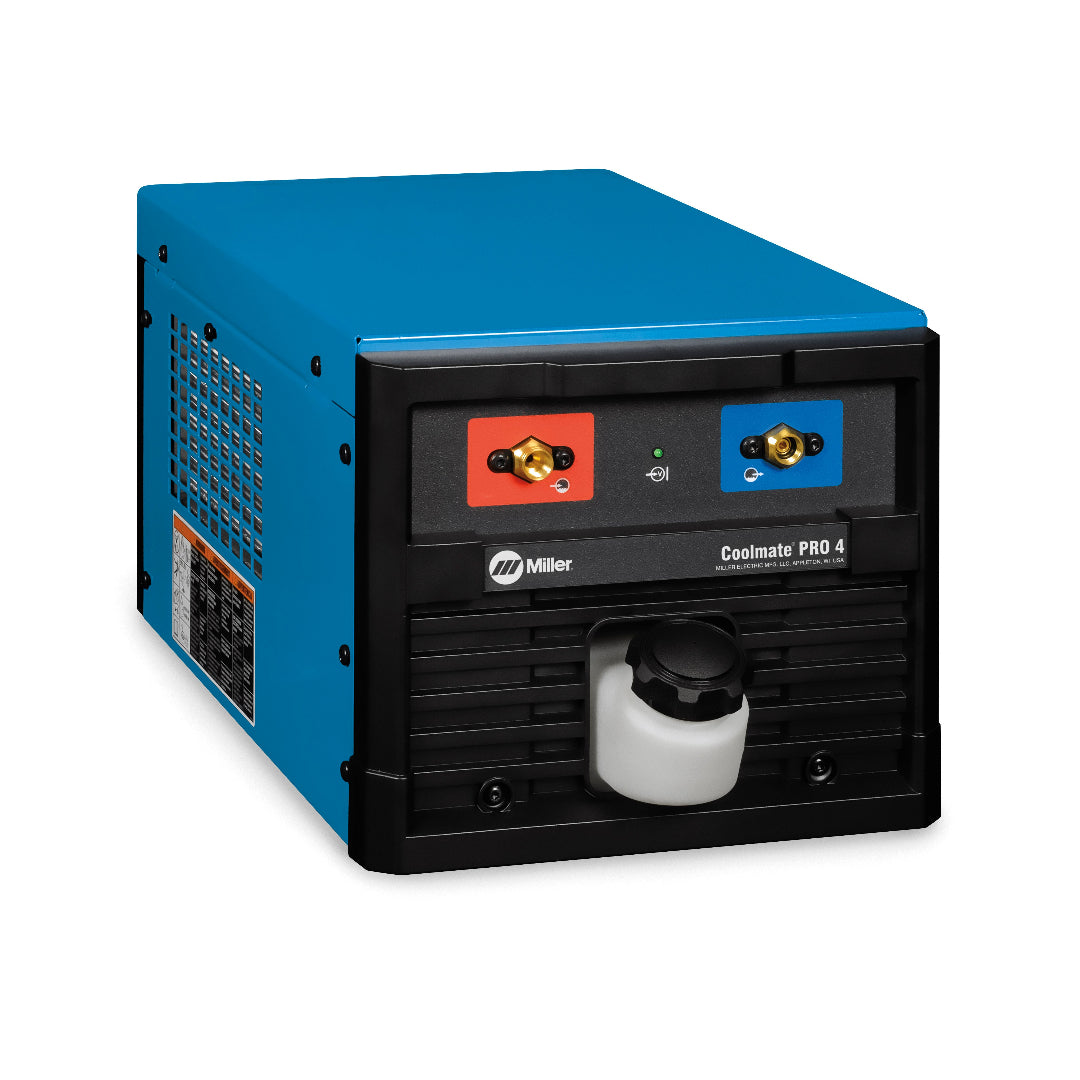

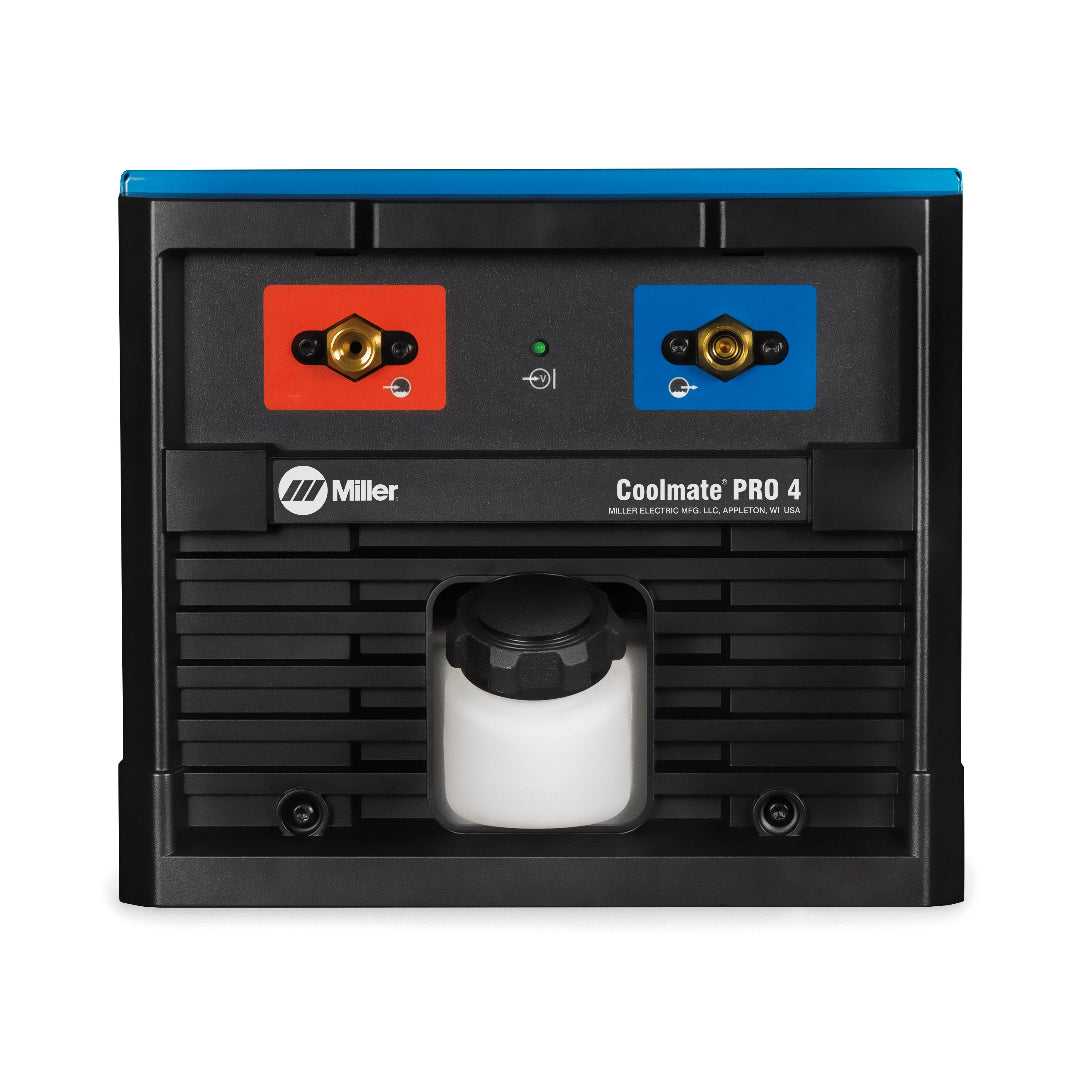

Miller Coolmate PRO 4 Torch Water Cooler



Industrial 4-gallon cooler designed for water-cooled torches rated up to 600 amps

The Miller® Coolmate™ PRO 4 is a heavy-duty, industrial 4-gallon water cooling system engineered to support high-amperage water-cooled TIG, MIG, plasma cutting, and resistance welding torches rated up to 600 amps. Designed specifically for seamless integration with Miller® Dynasty® 400/800 and Maxstar® 400 systems, its horizontal profile allows for convenient stacking or direct mounting onto Runner™ carts.

Featuring a closed-loop system with an efficient fin-and-tube heat exchanger, the Coolmate™ PRO 4 continuously recirculates fluid through a radiator to lower coolant temperatures and protect equipment from overheating during demanding light and heavy industrial applications. Available in standard configuration or with factory quick-connect fittings, this cooler delivers reliable, energy-efficient performance and long service life.

Features

  • 600-Amp Cooling Capacity: Engineered to reliably cool heavy-duty water-cooled TIG and MIG torches rated up to 600 amps.
  • Power Source Integration: Design allows for direct stacking beneath Dynasty® 400/800 and Maxstar® 400 models or mounting on Runner™ carts.
  • Internal Check Valves: Stops coolant flow automatically when the torch is disconnected to eliminate leaks and fluid loss.
  • Brass Rotary Vane Pump: Positive-displacement pump provides steady pressure, consistent coolant flow, and extended life.
  • Corrosion-Resistant Reservoir: Molded 4-gallon polyethylene tank, fan shroud, and filler spout ensure long-term rustproof durability.

Product Specifications and Details
Product Name Coolmate™ PRO 4
Stock Numbers 301905 (Standard)
301911 (With Quick Connect)
Input Power 1-Phase, 120 / 240 V, 50/60 Hz
Maximum Current Draw 1.2 A @ 120 V / 0.7 A @ 240 V
Maximum Cooling Capacity 5,010 W (17,094 Btu/hr.) @ 3.29 qt./min. (3.12 L/min.)
Rated Cooling Capacity (IEC) 2,370 W (8,086 Btu/hr.) @ 1.0 qt./min. (0.95 L/min.)
Tank Capacity 4.0 gal. (15.1 L)
Dimensions (H x W x D) 11.907 in. x 14.081 in. x 27.306 in.
(302 mm x 358 mm x 694 mm)
Net Weight (Dry) 46.5 lb. (21 kg)
Torch Fittings

5/8 in.-18 Left-Hand Threads (301905)
Female Quick Connect (301911)
Power Cord Length 10 ft. (3 m)
Standards & Certifications CSA Certified (U.S. & Canada), CE Compliant
Warranty 1 Year (Parts and Labor)

Click Here for Full Product Datasheet | All Torch Water Coolers
