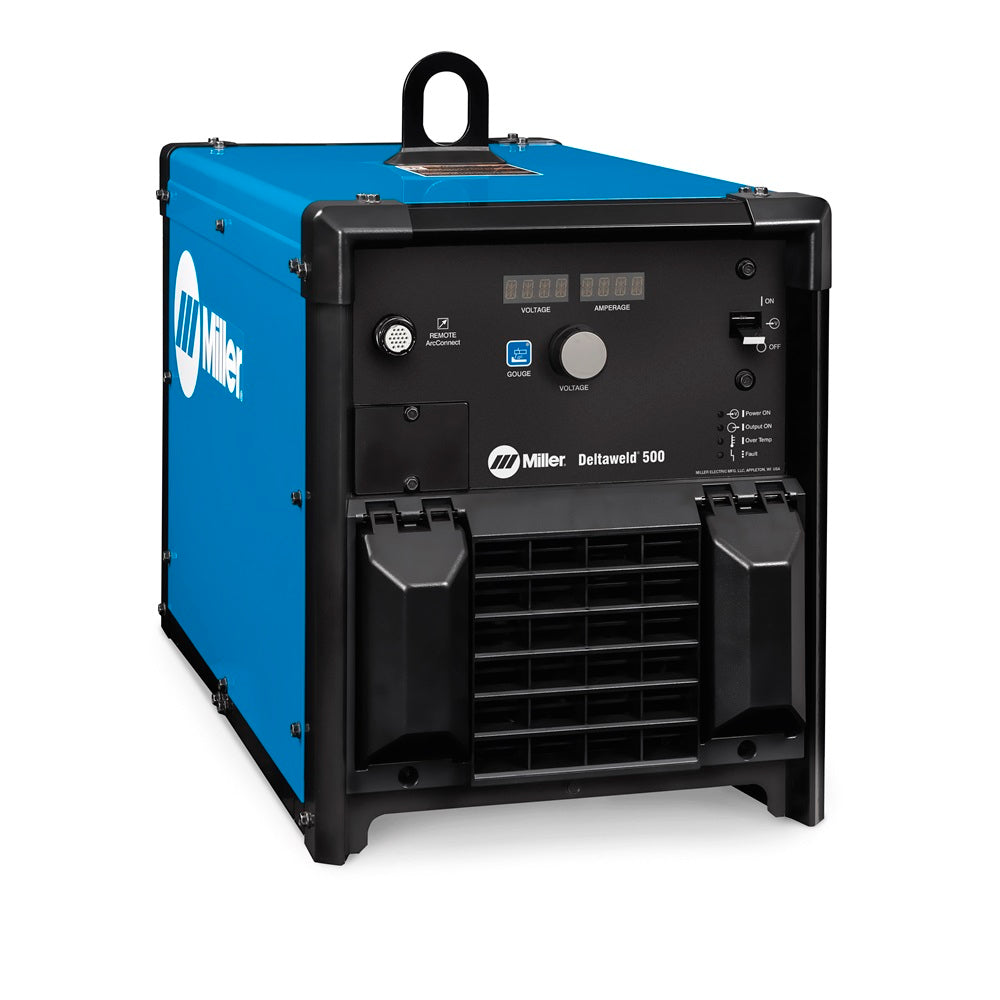

Miller Deltaweld 500 ArcConnect, 575V



The Deltaweld 500 is the standard in manufacturing for welders of all skill levels, designed for heavy industrial use including general manufacturing, transportation, and structural steel fabrication. This integrated package provides superior arc performance and is easy to set up and use.

Key Features

  • Powerful Performance: Delivers a rated output of 500 amps at a 100% duty cycle, with a wide amperage range of 30-650 A.
  • Dedicated Gouge Mode: Provides a dedicated mode for air carbon arc (CAC-A) gouging, rated for up to 3/8-inch carbons.
  • ArcConnect™: This next-generation communication system uses high-speed signals to improve weld performance and allows for point-of-use controls at the feeder.
  • Wind Tunnel Technology™: Protects internal electrical components and PC boards from dirt, dust, and debris to greatly improve reliability.
  • Fan-On-Demand™: The cooling fan operates only when needed, which reduces noise, power consumption, and the amount of airborne contaminants pulled through the machine.
  • Auxiliary Power: Comes standard with a 115-volt auxiliary power receptacle, providing 15 amps of circuit-breaker-protected power.
Specification Details
Input Power
575 V, 3-Phase, 60 Hz
Rated Output (MIG - GMAW)
500 A at 39 VDC, 100% duty cycle
Rated Output (Gouge - CAC-A)
500 A at 40 VDC, 100% duty cycle
Welding Amperage Range 30–650 A
Voltage Range 10–44 V
Input Amps at Rated Output (575 V)
MIG: 24.8 A / Gouge: 25.3 A
Dimensions (H x W x D)
22.36 in. x 15.35 in. x 31.65 in. (568 x 390 x 804 mm)
Net Weight 145 lb. (65.8 kg)



Oversize Product - Does not qualify for free shipping. Contact support@canadaweldingsupply.ca for accurate lead time and freight quote.
