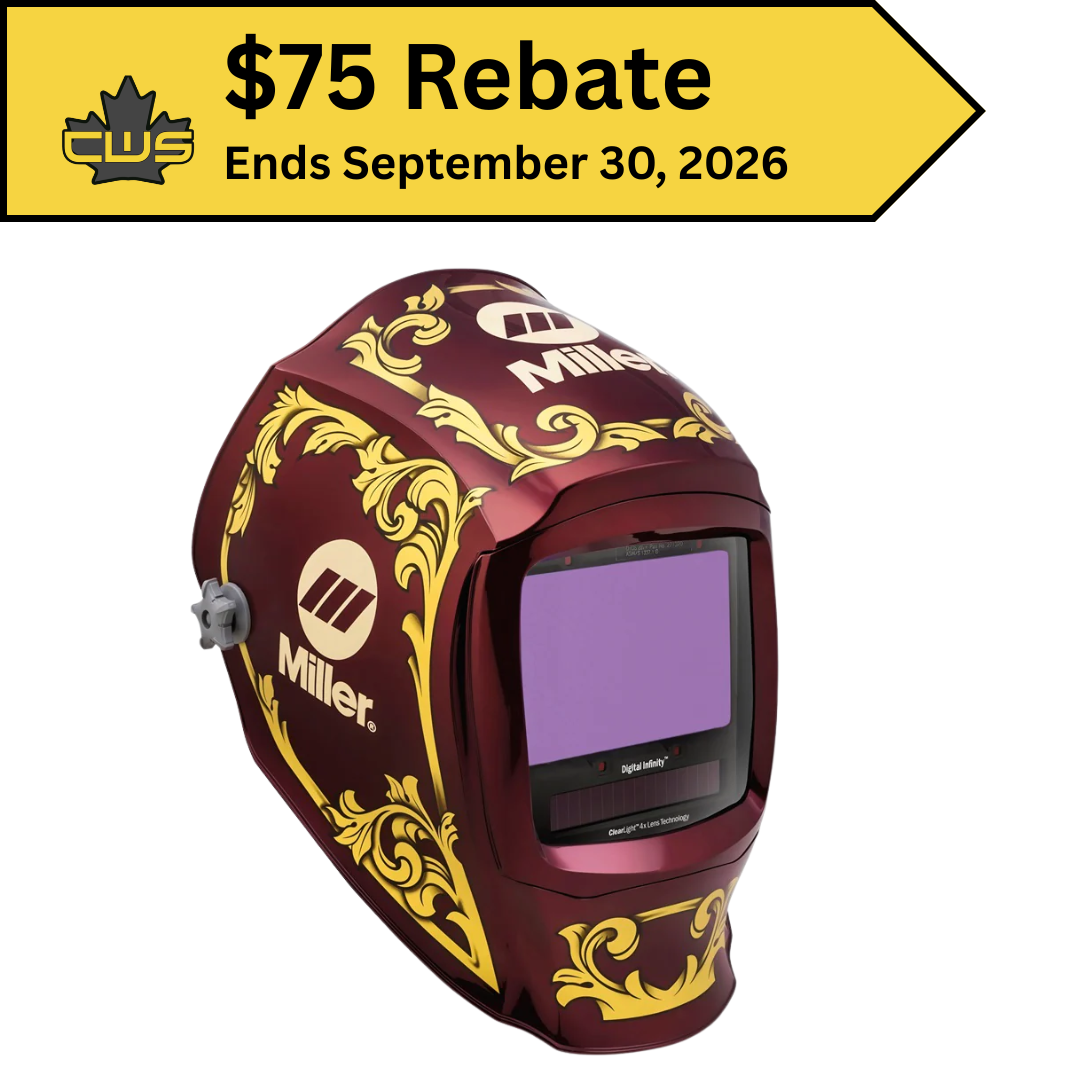

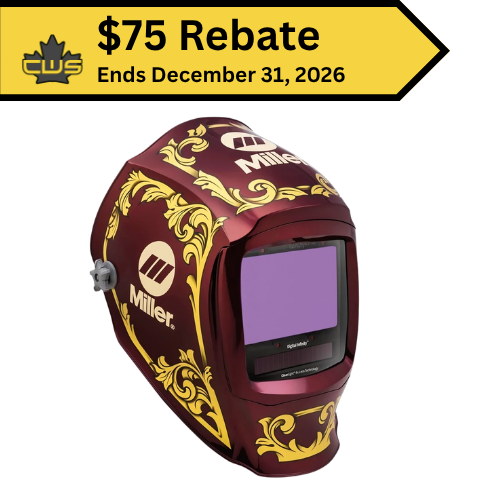

Miller Digital Infinity™, Imperial Welding Helmet

Clearlight 4x

Digital Infinity™ Series welding helmets are ideal for commercial and industrial weld operators who need an extra large viewing area for maximum visibility. Largest viewing area maximizes visibility – featuring ClearLight™ 4x Lens Technology

Part No. 296784

Features:

  • ClearLight™ 4x Lens Technology: Offers up to four times the clarity compared to traditional welding helmets with 1/1/1/2 lens visibility.
  • Largest Viewing Area: 13.4 square inches with a wide-screen format for an expansive view, reducing tunnel vision.
  • AutoSense™ Feature: Automatically sets helmet sensitivity based on the environment, reducing manual adjustments.
  • InfoTrack™ 2.0: Tracks and displays arc time and arc count for productivity monitoring.
  • Memory Function: Allows easy switching between two preset memory settings for convenience.
  • Legacy Headgear with Comfort Cushion: Designed for all-day comfort and stability.
  • Four Modes (Weld, Cut, Grind, X-Mode™): X-Mode electromagnetically senses the weld, reducing sunlight interference and detecting the arc even if sensors are blocked.
  • Half-Shade Settings: For precise adjustments to lens shading.
  • Optional Helmet Lighting Accessory Kit: Includes two lights and mounting hardware for better visibility during use.
  • InfoTrack™ - Exclusive arc tracking technology features arc time, time and timer functions, and a multi-language help menu.
  • Variable Shades - Welding shades 8-13 and cutting shades 5-8 allow operators to customize the lens shade to their needs.
  • Digital Controls - intuitive design and large push buttons allow user to easily adjust mode and settings.

  • ClearLight™ Lens Technology - High-definition optics for precision arc recognition.

Product Name // Part Number Digital Infinity™, Clearlight 4x, Imperial // 296784
Light State 2.5
Sensors 4
Optical Clarity (EN 379) 1/1/1/2
TIG Rating 5 amps and below
Switching Speed 1/25,000 second
Weight 21.4 oz (606 g)
Certifications ANSI Z87.1+, CSA
Viewing Area 13.4 sq. in. (86.45 sq. cm)
Operating Modes and Shades Weld (8–13), Cut (5–8), Grind (2.5), X-Mode™ (8–13)
Warranty Four years for the auto-darkening lens

What's Included

  • Helmet bag
  • 2 inside cover lenses
  • 5 outside HDV cover lenses
  • Clip-on Top Comfort Cushion

Digital Infinity CL 4x Series Data Sheet | Digital Infinity CL 4x Series Manual | Replacement Parts
