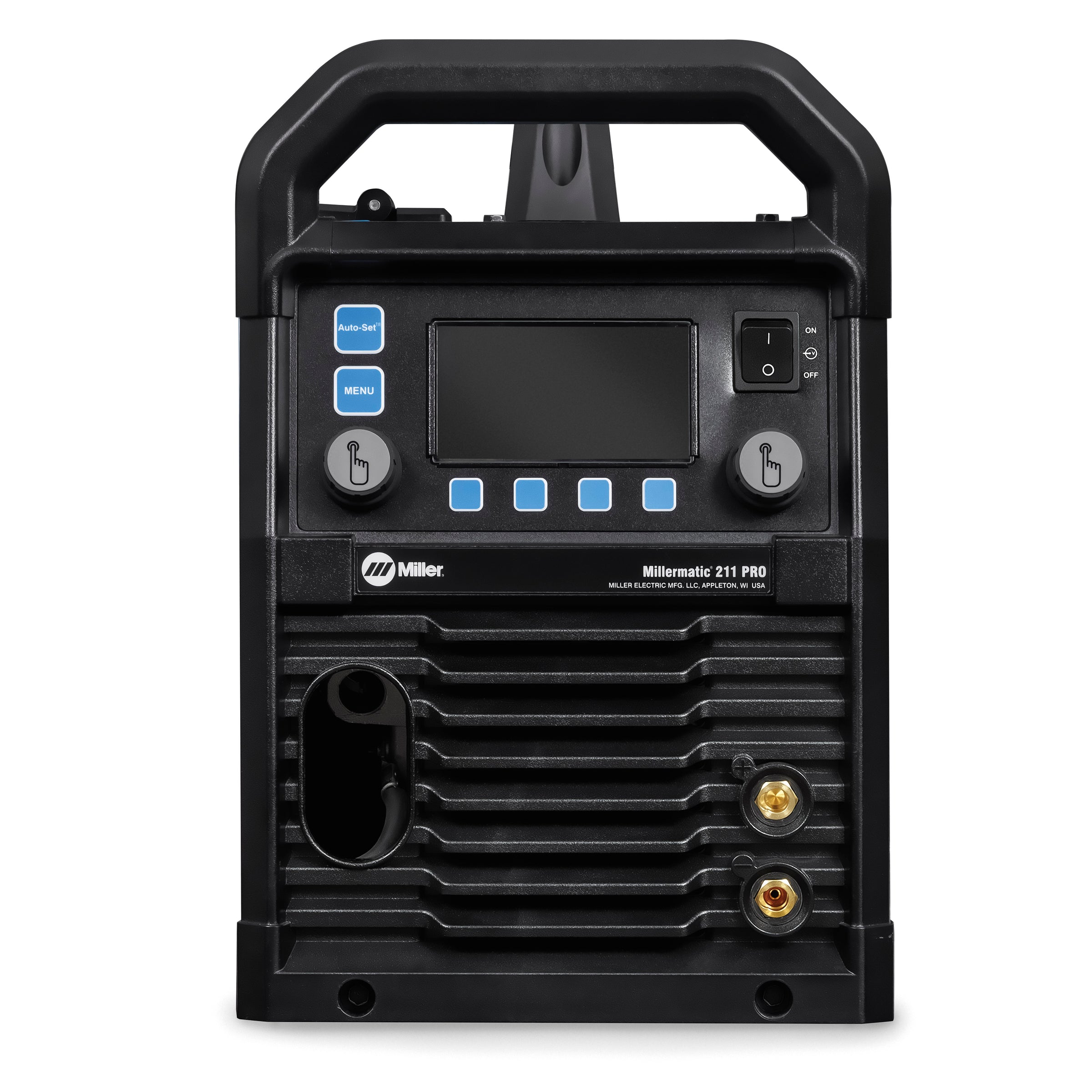

The Millermatic® 211 PRO is a versatile MIG welding package that comes with a 15-foot MDX™-100 MIG gun featuring a front-load liner and Auto-Set™ technology for fast, material-specific welding setup. Its multi-voltage plug (MVP™) allows connection to both 120 V and 240 V outlets without tools, while the Smooth-Start™ arc ensures spatter-free welding. The machine supports solid wire (.024–.035 in.) and flux-cored wire (.030–.045 in.) with 4- or 8-inch spools, and it includes USB-enabled software for future upgrades. Additional features like Auto Spool Gun Detect™ streamline gun selection, and it delivers a rated output of 30–230 A with wire feed speeds from 60–600 ipm, all in a compact 35 lb (15.9 kg) package.
Part No. 907839 | With Running Gear/Cylinder Rack Part No. 951000073
| Title | Millermatic® 211 PRO |
|---|---|
| Applications | Automotive Welding Car Restoration Fabrication Garage/Shop Mobile Fabrication & MRO Welding Projects |
| Industries | Auto Repair Construction & Fabrication Manufacturing Racing, Customizing & Restoring |
| Amperage | 30 A - 230 A |
| Material Thickness | Aluminum 18 ga. (1.2 mm) - 3/8 in. (9.5 mm) Mild Steel 24 ga. (0.5 mm) - 3/8 in. (9.5 mm) |
| Weldable Metals | Aluminum Stainless Steel Steel |
| Current Type | DC |
| Rated Output | 120V: 110 A at 19.5 VDC, 60% duty cycle 240V: 160 A at 22.0 VDC, 60% duty cycle |
| Max Open Circuit Voltage | 54 VDC |
| Wire Feed Speed | 1.5 m/min - 15.2 m/min 60 m/min - 600 m/min |
| Wire Diameter | Stainless 0.024 in. - 0.035 in. Stainless 0.6 mm. - 0.9 mm. Solid Steel 0.6 mm. - 0.9 mm. Solid Steel 0.024 in. - 0.035 in. Flux Cored 0.03 in. - 0.035 in. Flux Cored 0.8 mm. - 0.9 mm. |
| Spool Size | 4-inch or 8-inch (102 mm or 203 mm) |
| Portability | Handle(s) Running Gear / Cart (Optional) |
| Weld Output | CV |
| Input Voltage | 110/115/120 V 220/230/240 V |
| Input Phase | 1-Phase |
| Net Width | 9.75 in |
| Net Height | 14.625 in |
| Net Length | 20 in |
| Net Weight | 35 lbs |
| Warranty | 3 Years |
