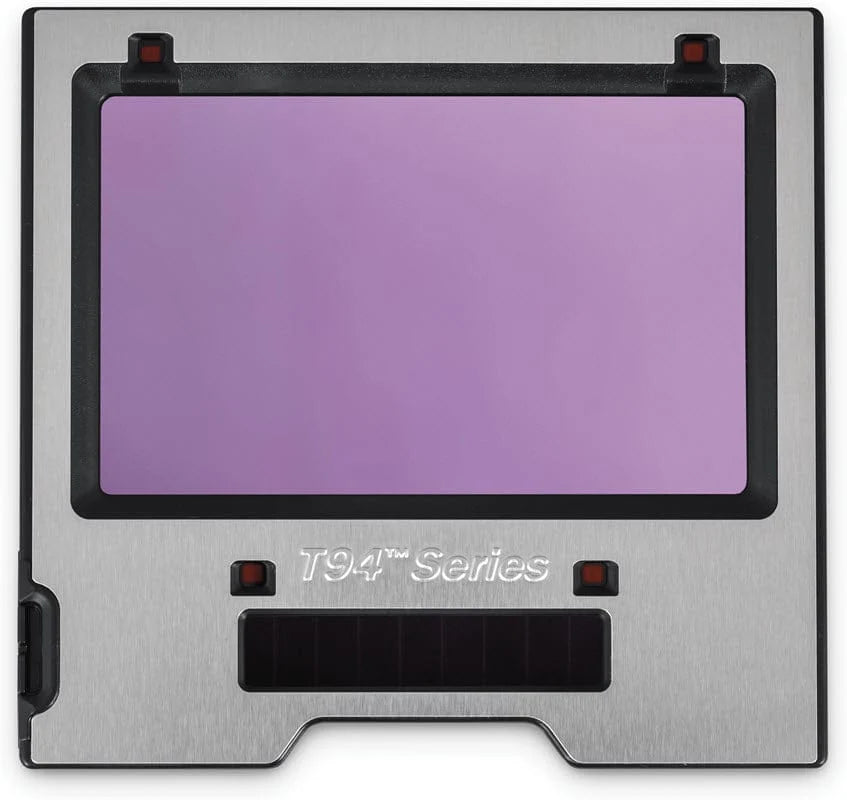

Miller® T94i™ ClearLight™ 4x Replacement Auto-Darkening Welding Lens

Genuine Miller® ClearLight™ 4x replacement auto-darkening lens for your T94i™ welding helmet ONLY. The T94i ClearLight 4x welding lens features 9.0 square inches of viewing area and offers visual quality that is up to four times better than the minimum USA ANSI standard for 1/1/1/1 rated auto-darkening welding lenses. The stunningly clear views, in both light and dark states, are superior in quality and color to virtually every other auto-darkening lens in the world. High-definition optics and a bright shade 2.5 grind/light state allow you to view your work before, during and after welding - like never before.

The T94i™ ClearLight™ 4x lens has four arc sensors and operates in weld, cut, grind and Miller's X-Mode™, which eliminates sunlight interference and low-amp lens flashing from obstructed arc sensors. It is rated for low amperage TIG welding down to 3 amps. Switching speed is a lightning fast 1/25,000 of a second. The Miller T94i ClearLight 4x auto darkening welding filter features shade 8-13 weld mode, shade 8-13 X-Mode™, shade 5-8 cut mode and shade 2.5 grind mode. It comes complete with InfoTrack™ 2.0, easy-to-use digital controls and a four year True Blue® lens warranty.

Traditional  vs ClearLight 4x

• Digital Controls With Four Arc Sensors and Four Operating Modes -
  • Weld Mode™ Shades #8 - 13
  • Cut Mode™ Shades #5 - 8
  • Grind Mode - Light State #3
  • X-Mode™ Shades #8 - 13
• X-Mode™
  Electromagnetic Arc Sensing for: Sunlight interference outdoors, Low-Amperage TIG, Pipe/Curves, Obstructed Sensors & Hidden/Cavity Welds
• Memory Function
  For ease of switching between two preset memory settings.
• Half-shade settings
  For precise lens adjustment.
• InfoTrak™ 2.0
  Exclusive arc tracking technology that monitors arc time and arc count for quoting and worker safety metrics.
• AutoSense™
  Eliminates issues related to setting helmet sensitivity by allowing the welder to push and hold the AutoSense™ button to automatically set the helmet sensitivity for their environment.
• Auto-on/off
  Power control triggers lens at the strike of an arc.

Part Number - 296879
