The Pipeliner PAPR Welding Helmet System
- Régulier
- $1,599.00
- Vente
- $1,599.00
- Régulier
0% OFF
Épuisé
- Prix unitaire
- par
In Stock Online

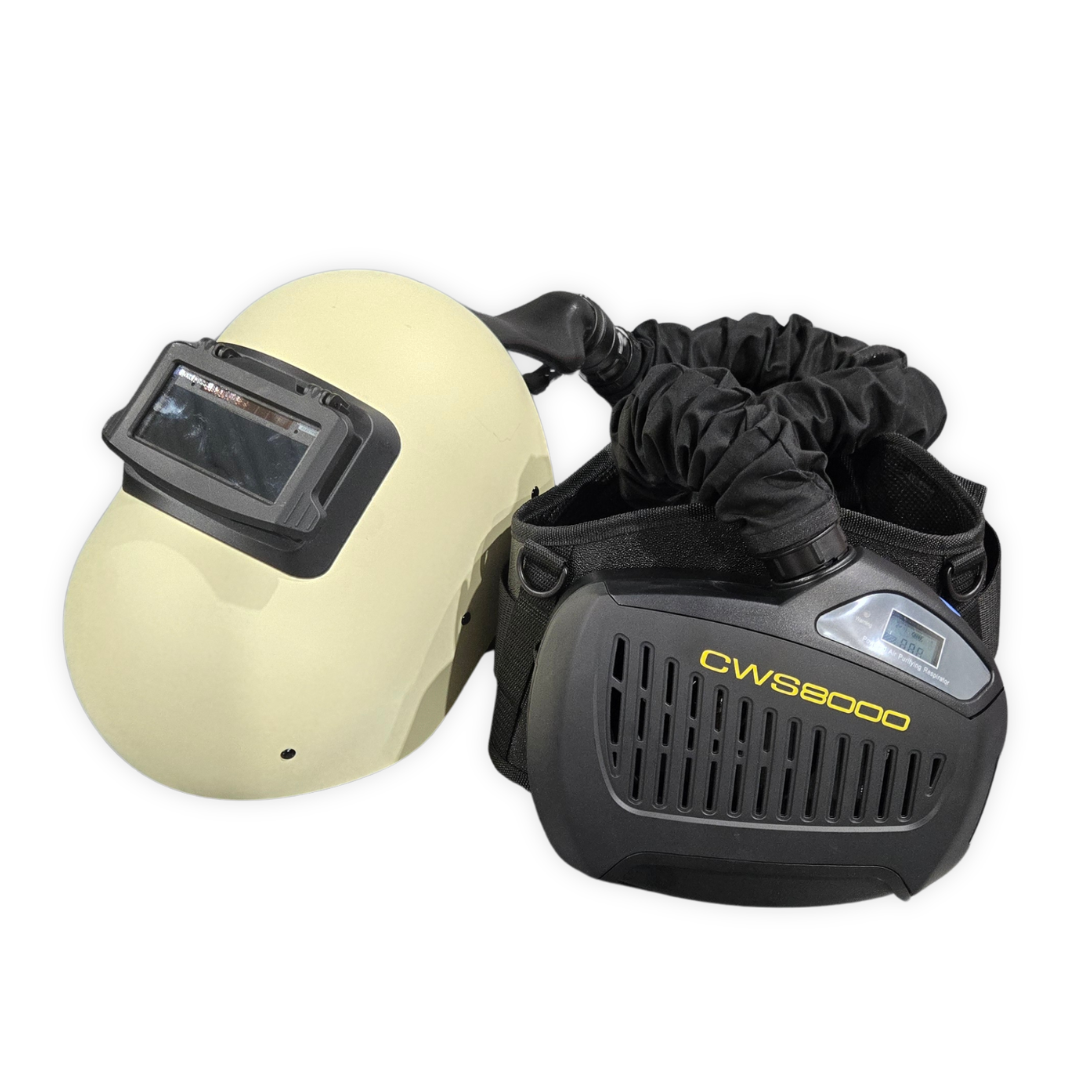

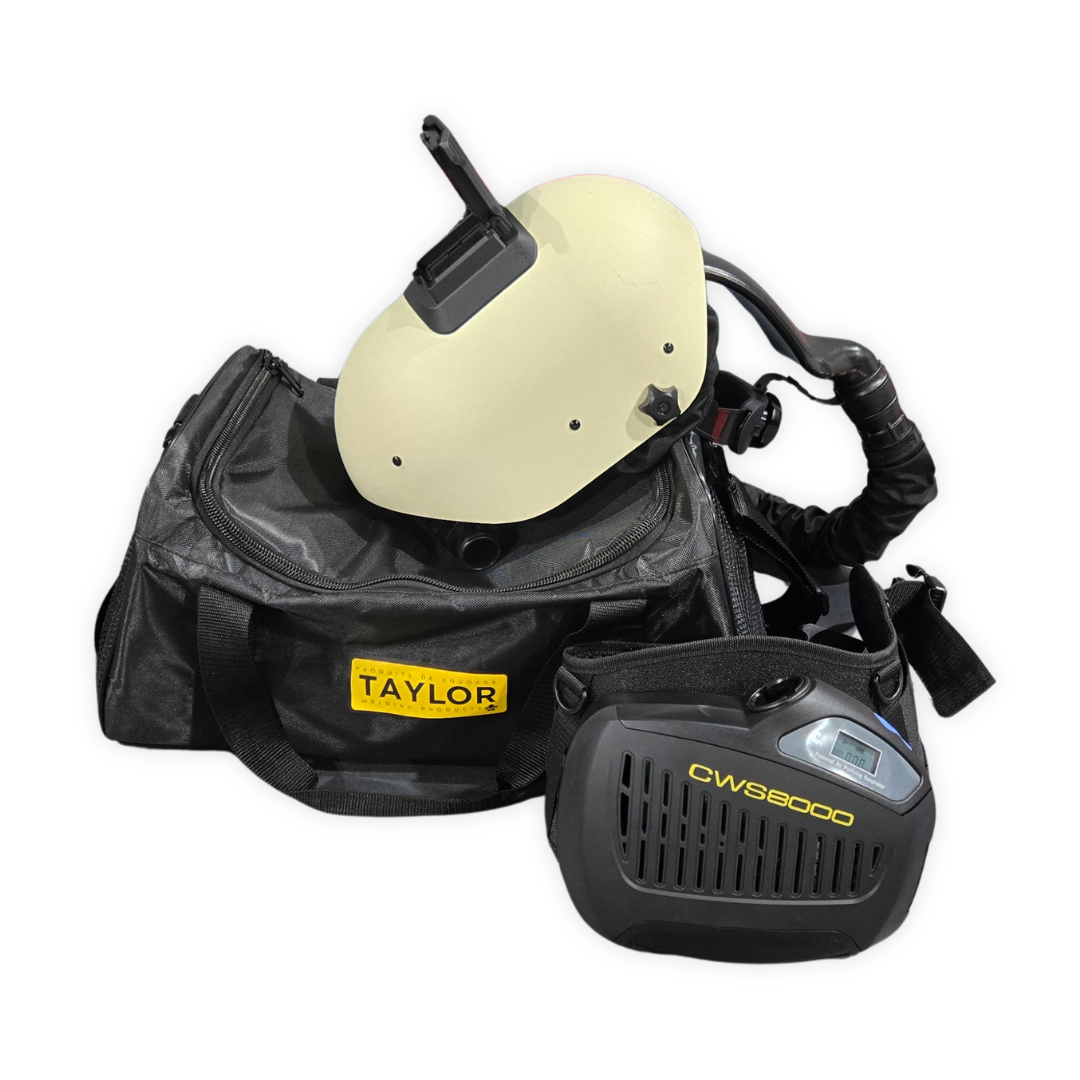

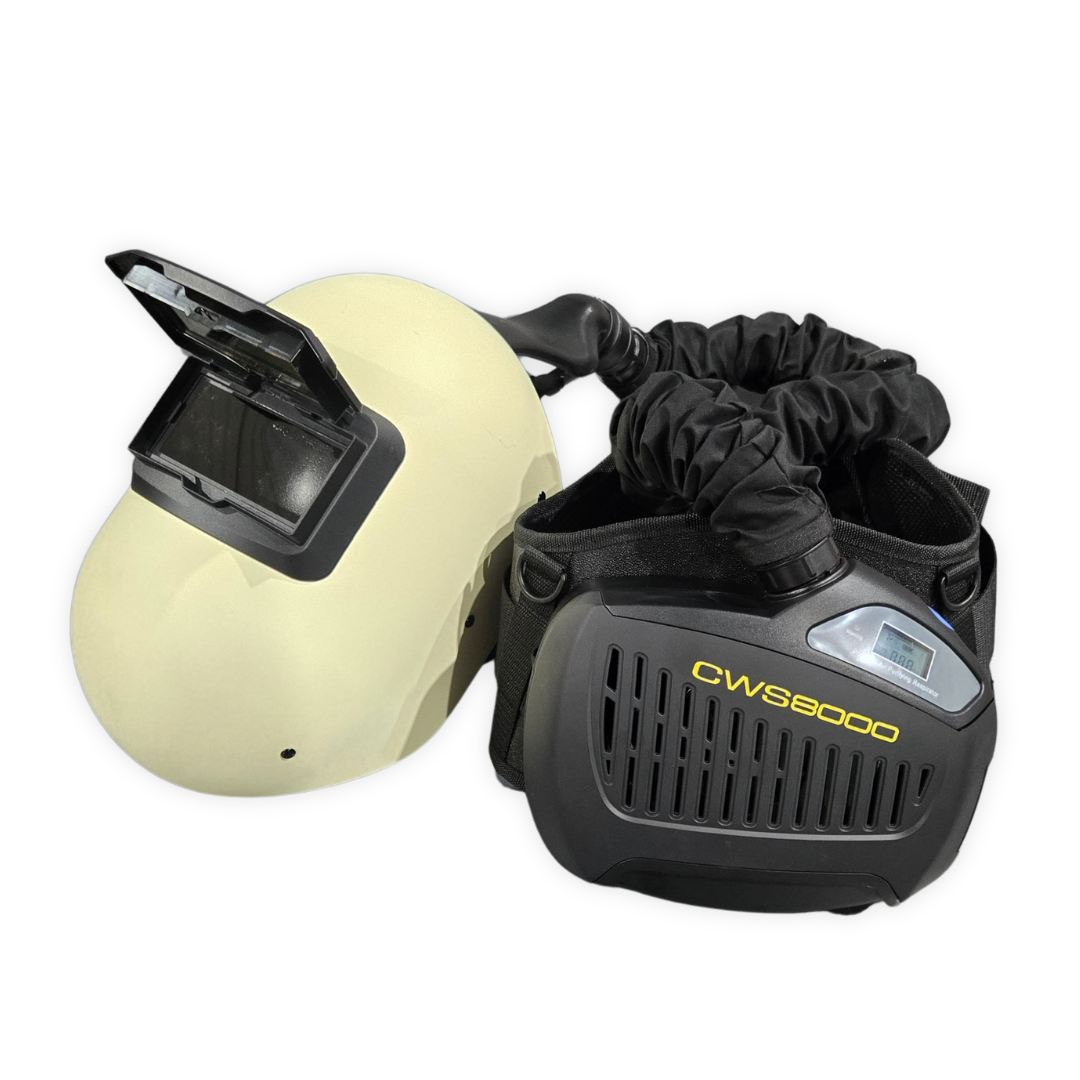

The PIPELINER PAPR Welding Helmet System
The Pipeliner PAPR is a complete welding helmet PAPR system that delivers clean, fresh air to welding operators while under the hood. Featuring a custom pipeline style hood with flip-front lens holder, the customization options for your hood begin as soon as it comes out of the box.
- Classic Pipeliner shell style helmet
- Inside shroud with elastic band seals your face from external air
- Strong PAPR blower system filters atmospheric air from particles and fume
- Up to 8 Hours runtime on lowest blower setting
- Flip-Up lens retainer comfortably fits Auto-Darkening Filter Lenses + Cover Plates
- Lens Size: 2" x 4-1/4"
The Pipeliner PAPR includes a standard Shade 10 passive filter plate, which can be swapped for any common 2x4" glass, polycarbonate and ADF lenses. See the collection of available lenses HERE
PAPR Blower Specs
| Product Name // Part Number | The Pipeliner PAPR // 2520-1 |
| Airflow velocity | Low: 170L/MIN Medium: 200L/MIN High: 230L/MIN |
| Switch | On/off switch Automatic shutdown if unused for 30 mins |
| LCD Display | Airflow level and data Battery life Filter status |
| Warnings | Low battery Clogged filter Airflow jammed causing low airflow High battery temperature |
| Working noise | Max. 73dB |
| High filter efficiency | 99.996% @ 0.3um |
| Filtration level | TH2 PR SL |
| Weight | Complete unit 1370g, No batteries1020g |
| Battery operating time |
Level 1: >8h |
| Battery | LI-ION 12v 4400mAh |
| Charging time | 3.5h |
| Operating temperature | -5°C - +55°C |
| Certificates | CE EN 12941.19 CSA |
What's In the Box
- The Pipeliner PAPR Welding Helmet w/ Flip-Up Lens Holder, Shade 10 Passive plate
- (1) CWS8000X PAPR Blower Unit
- (1) PAPR Breathing Tube w/ FR Cover
- (1) Main Filter
- (1) Filter Cover
- (1) Li-Ion Battery Pack
- (1) Battery Charger
- (1) Carry Bag w/ Strap
