ESAB Rogue EM 210 PRO Welding Machine
Portable MIG/MAG Dual Voltage Welding Package
ESAB Rogue EM 210 PRO is an inverter-based MIG welding system designed to address all your welding project needs, from light fabrication to repair and maintenance. The system features industrial-grade arc performance and full featured controls that allow the welder to fine tune arc characteristics based on the material they are welding.
With a weight of only 16.9 kg (37.3 lbs), dual voltage 120/230V single-phase input and compatibility with 11 kVA (10 kW) generators, this system provides maximum
flexibility and portability, both in the shop and in the field.
Top Features
- Full-feature MIG/MAG machine for Synergic MIG, Manual MIG, MIG Brazing, and Flux-Cored welding
- 5.0 in TFT screen with an intuitive interface for clear views and direct interaction
- Synergic Weld Programs covering a full range of welding parameters (0.5 – 8.0 mm / 0.020 – 0.30 in.) with single-knob control
- Power Factor Correction (PFC) ensures a stable arc, resistant to power fluctuations, even on long extension cables (up to 100 m / 328 ft)
- Rugged industrial design with multiple lift points and cable management
- Arc Dynamics allows fine-tuning for a crisp/stiff arc (carbon steel) or a smooth/soft arc (stainless steel)
- Jobs function with 10 memory save/recall slots
- Spool Gun Ready – Rogue automatically configures setup when a spool gun is connected (sold separately)
- Multi-language display with 29 language options
- Energy Save Mode activates after 2 minutes of inactivity to reduce power consumption
- IP23S rated for reliable indoor/outdoor use
Additional Product Specifications
| Product Name // Part Number | ESAB Rogue EM210 PRO // 0700301084 |
| Welding Processes | MIG, Flux Core |
| Spool Gun Compatible | ✅ - Tweco Spool Gun 160A |
| Spool Sizes | 4" and 8" Spools Accepted |
| Input Voltage | 120/230V AC, 50/60 Hz. |
| Max. Output Power (230V) | Current: 210A // Voltage: 10.4-27.2V (78V OCV) |
| Dimensions | 23.2 x 8.7 x 15.2 in. |
| Weight | 37.3 lb. (Unloaded) |
| Warranty | 3 Year, ESAB Authorized Repair Centres |

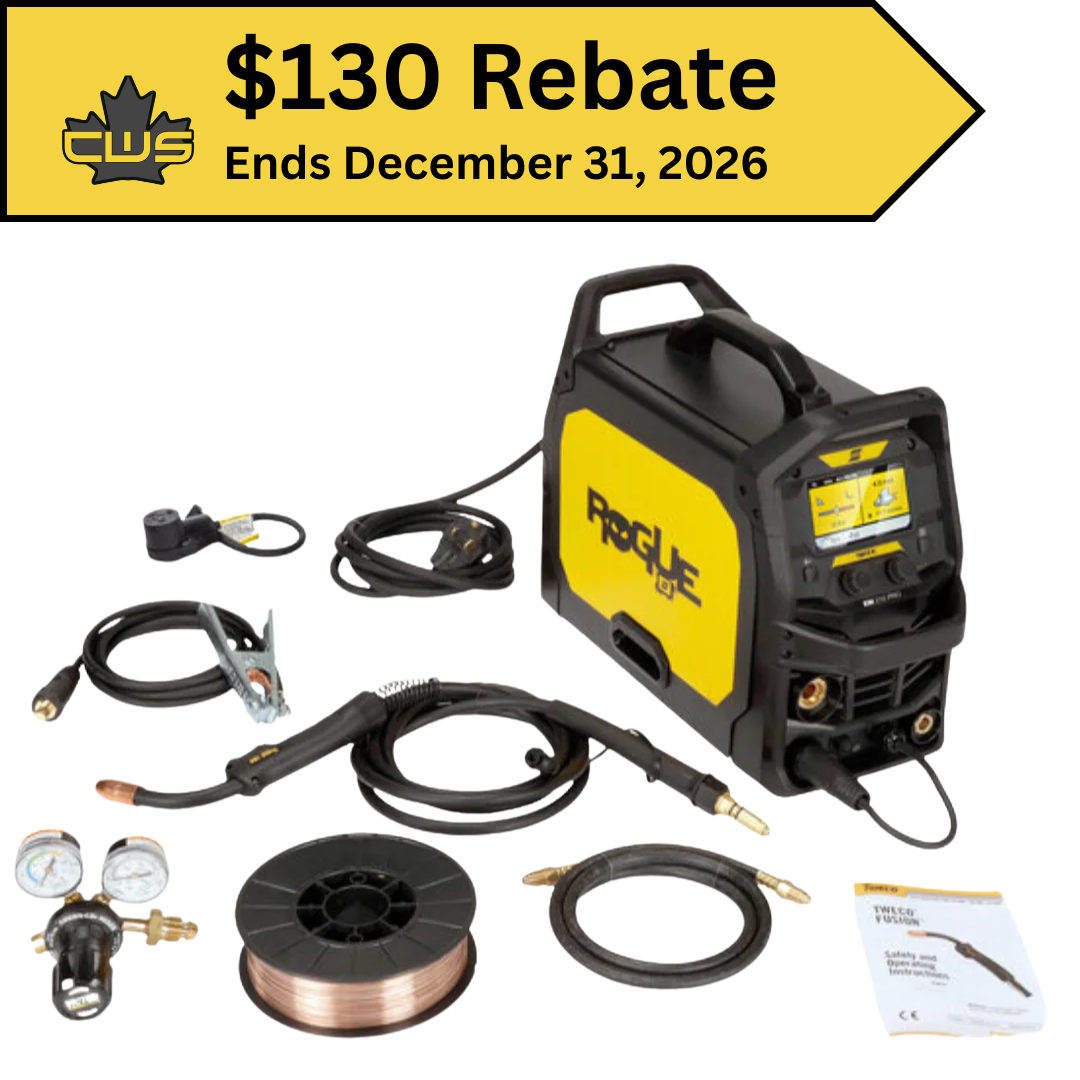

What's in the Box?
- ESAB Rogue EM210 Pro Power Source
- Tweco Velocity contact tips 1 ea 0.6/0.8/0.9 mm (0.023/0.030/0.035 in.),
- Tweco Fusion 180 MIG Torch 3 m (10 ft)
- Victor Gas Regulator/Flow gauge
-
10 ft. Ground Cable / Work Lead
- 10 ft. Gas Hose
- Sample Spool of ESAB OK AristoRod 12.50 (ER70S-6), 0.030", 2.2 lb
- Power Adapter – NEMA 6- 50R to NEMA 5-15P
- Drive Rolls: 0.6/0.8 mm (0.023/0.030 in.) V (fitted), 0.8/0.9 mm (0.030/0.035 in.) V and 0.8/0.9 mm (0.030/0.035 in.) Knurled
- Instruction manual
Full Product Spec Sheet | Tweco Fusion 180 - Velocity Light Duty Torch Consumables
