ESAB Savage A40 PAPR System

Sold Out
Unit Price
Only 5 left!

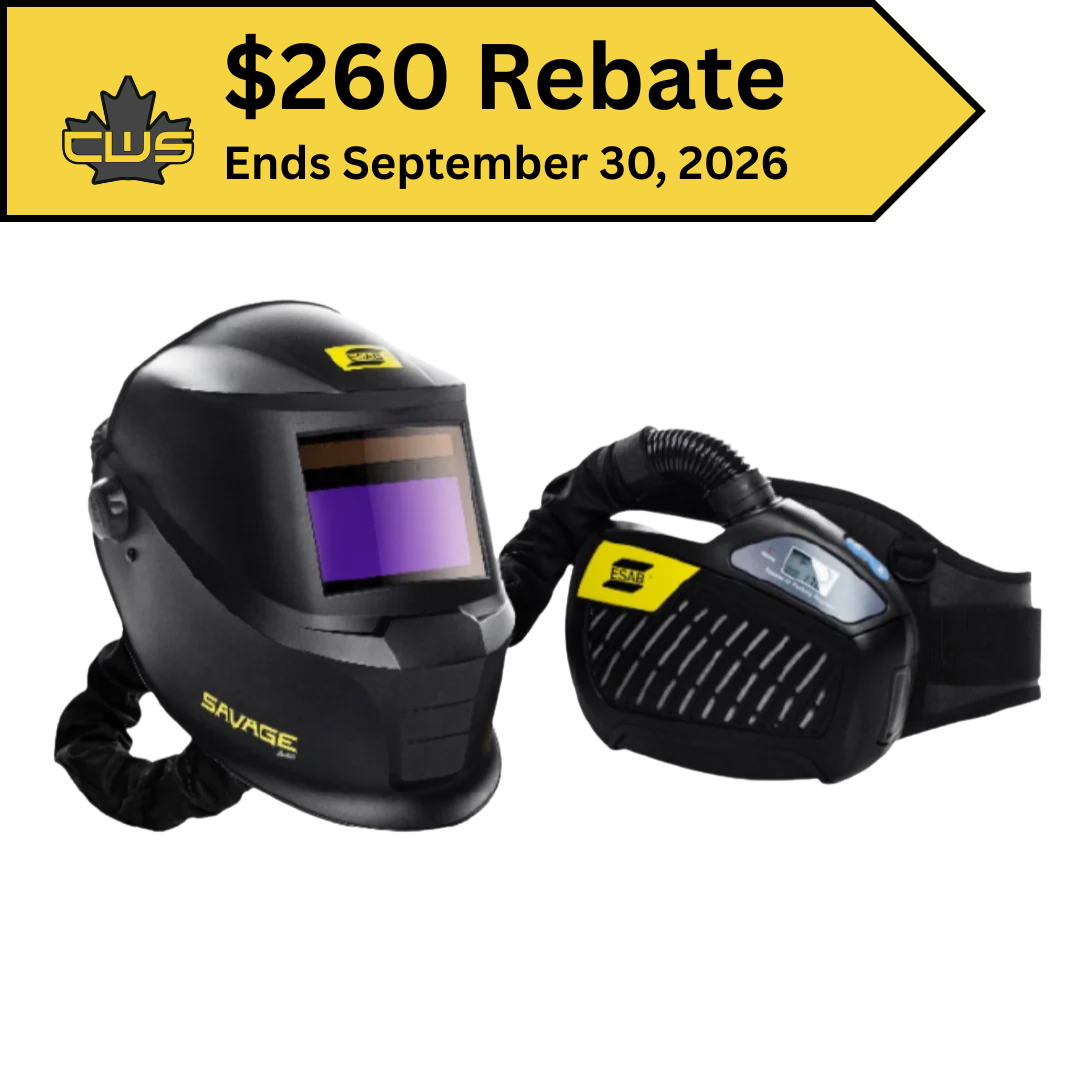

ESAB Savage A40 PAPR - Complete Kit


The Savage A40 PAPR pairs the advanced features of the Savage A40 welding helmet with a powerful PAPR system designed to filter 99.9% of fine particles from the air during routine procedures.


  • NIOSH-approved PAPR filtration system delivers three setting adjustable flow from 170 to 230 liters per minute
  • Convenient push-button interface with easy to read
  • LCD display for PAPR adjustment
  • High efficiency 2 stage filtration system with spark arrestor for added safety
  • LCD display indicating fan speed, flow rate and battery charge level with additional audible alert for low battery
  • High quality shielded air tube with simple connections
  • Fully adjustable PAPR harness and multi-point helmet headgear adjustment for total comfort
  • Four sensor ADF with adjustable shade, sensitivity and delay controls to dial in the precise darkness and reaction speed


Lens Viewing Area 3.93 x 1.96 in. (100 x 50 mm)
Lens Shade DIN 4, Adjustable 9-13
Lens Power Supply Replaceable CR2450 battery with solar backup
PAPR Power Supply 4400mAh rechargeable battery, low battery alert
PAPR Airflow Low: 170 lpm / Medium: 200 lpm / High: 230 lpm
Filtration Efficiency HEPA
ADF Lens Sensors 4
ADF Switching Time @ 23°C 0.07ms
Lens Classification 1/1/1/2
Standards NIOSH, ANSI Z87.1, CSA Z94.3, CE EN379, EN175, & AS/NZS 1338.1
Weight 2.97lbs (1350g)

Included in this Kit

  • Savage A40 welding helmet
  • PAPR blower unit & breathing tube
  • Battery (2 each)
  • Main filter (2 each)
  • Pre-filter (6 each)
  • Inside / Outside cover lenses (2 of each)
  • Battery charger
  • Waist belt w/shoulder strap
  • Portable air flow tester
  • Spark arrestor for blower unit
  • Carrying bag that fits all accessories
  • ESAB Part Number: 0700002400
