Fit-Up Pro 400 Series Pipe Spider Clamps



Internal Pipe Fit-Up Clamps, Suitable for use with Stainless Steel

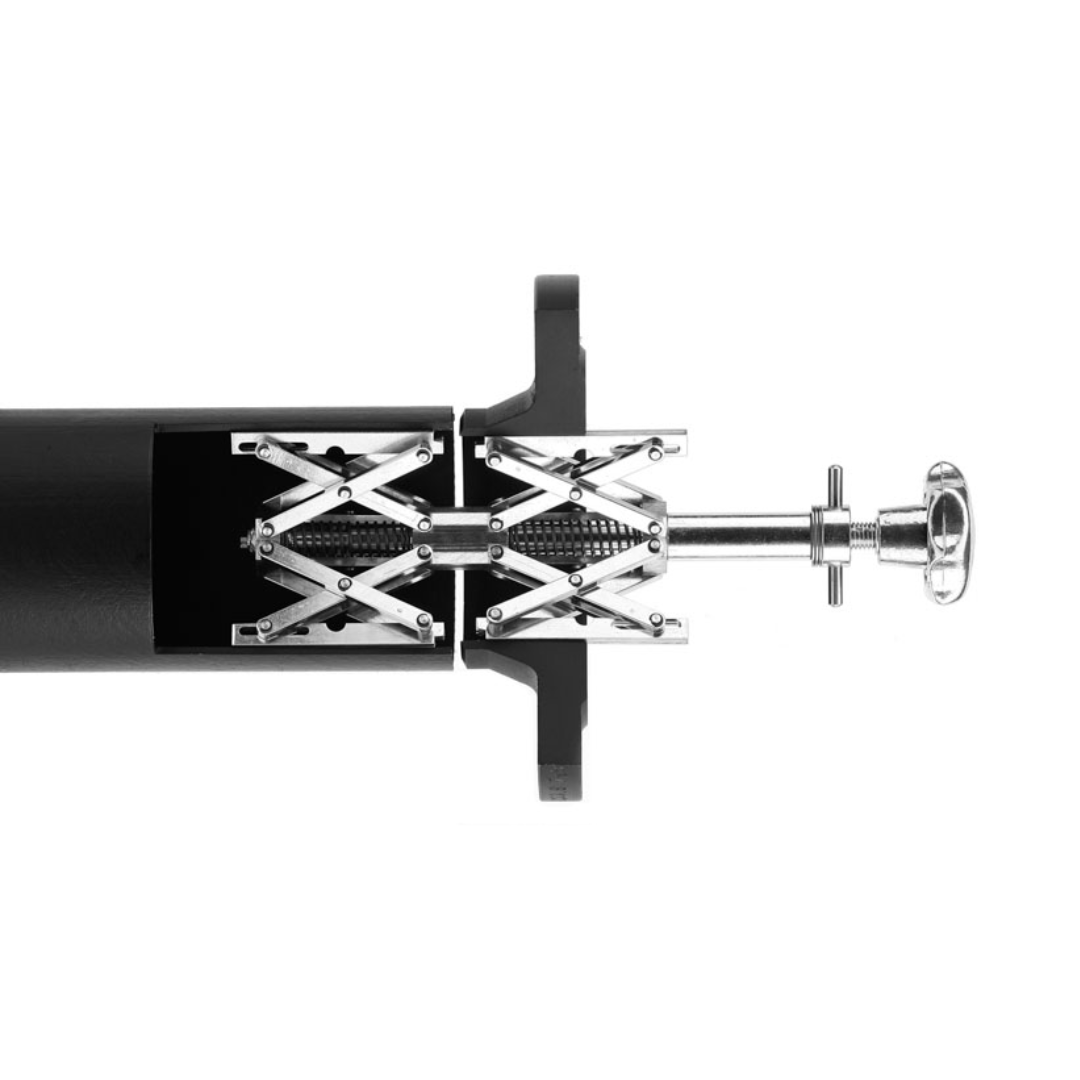

This model has two independent expanding clamps, allowing independent alignment of two hollow cylindrical components of different diameters. The bottom expanding clamp is inserted and clamped in the pipe by means of the knob, then the other part (e.g. a flange) is placed over the top expanding clamp and clamped by means of the hand-bar. This model is specially suited for heavy parts. All locating rails are made of stainless steel.

NOTE: Internal fit up clamps are alignment tools. A separate lifting device to support flange weight is recommended.

Replaces Sumner Internal Fitup Clamps

Available Options and Part Numbers

SFE / Fit-Up Pro PN Old Sumner Part Number Clamping Range (in) Range I/D (mm) Weight (lbs) Weight (kg)
400-1 SS 784100 2-6" 54-140 mm 3.31 lbs 1.50 kg
400-2 SS 784102 4-8" 85-220 mm 9.15 lbs 4.15 kg
400-3 SS 784103 6-14" 120-350 mm 26.01 lbs 11.80 kg
400-4 SS n/a 8-20" 180-520 mm 65 lbs 30.00 kg
400-5 SS n/a 16-36" 400-940 mm 145 lbs 65.00 kg
