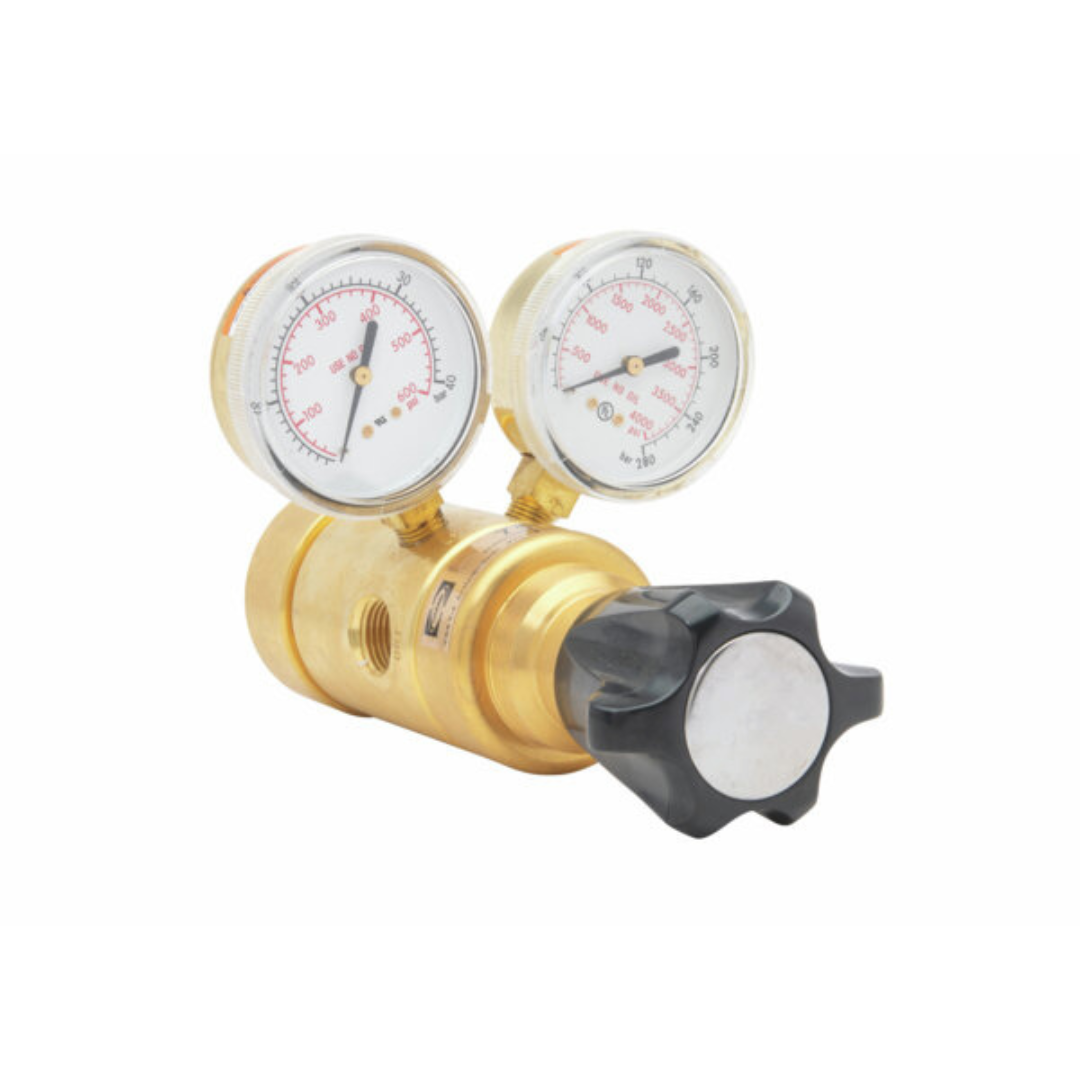

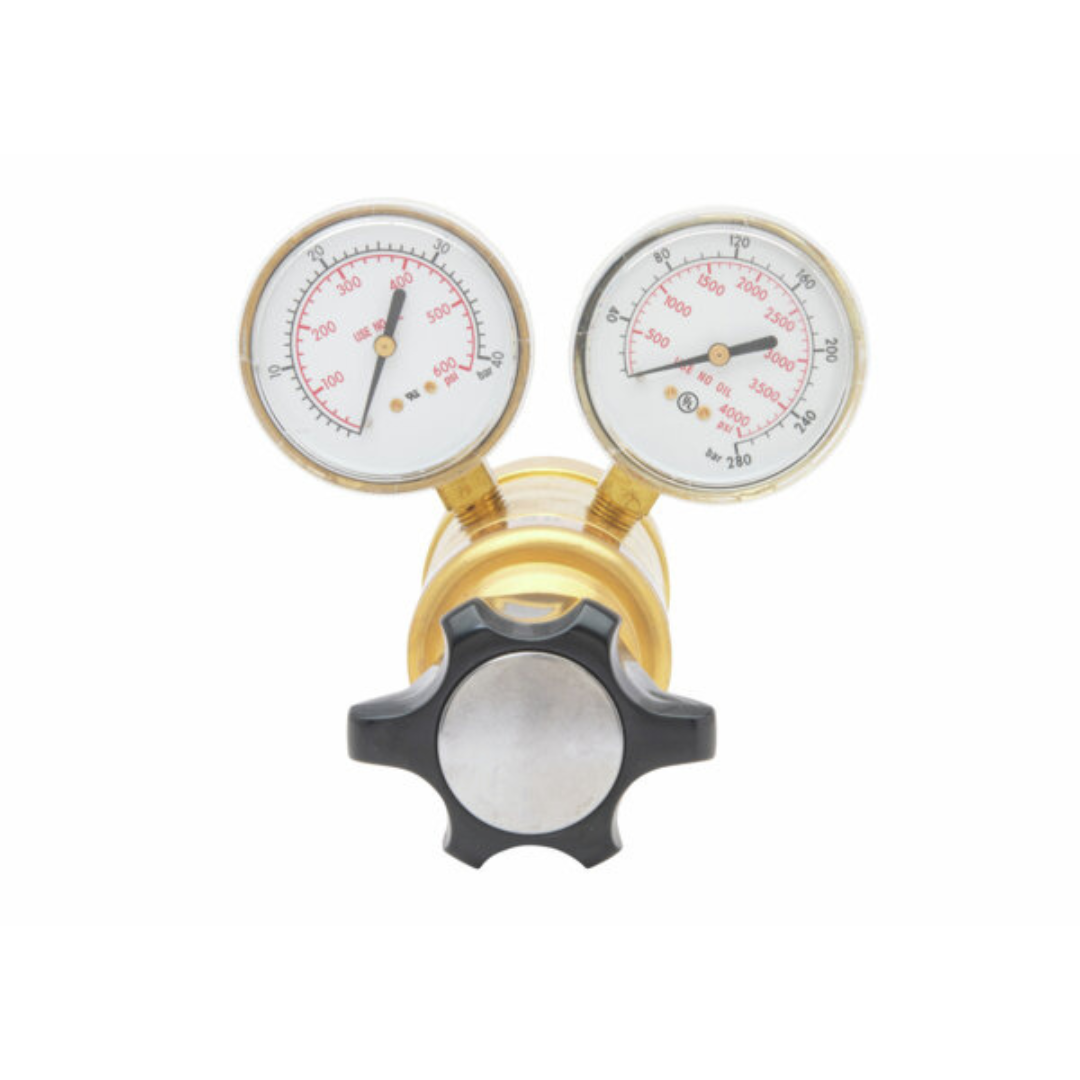

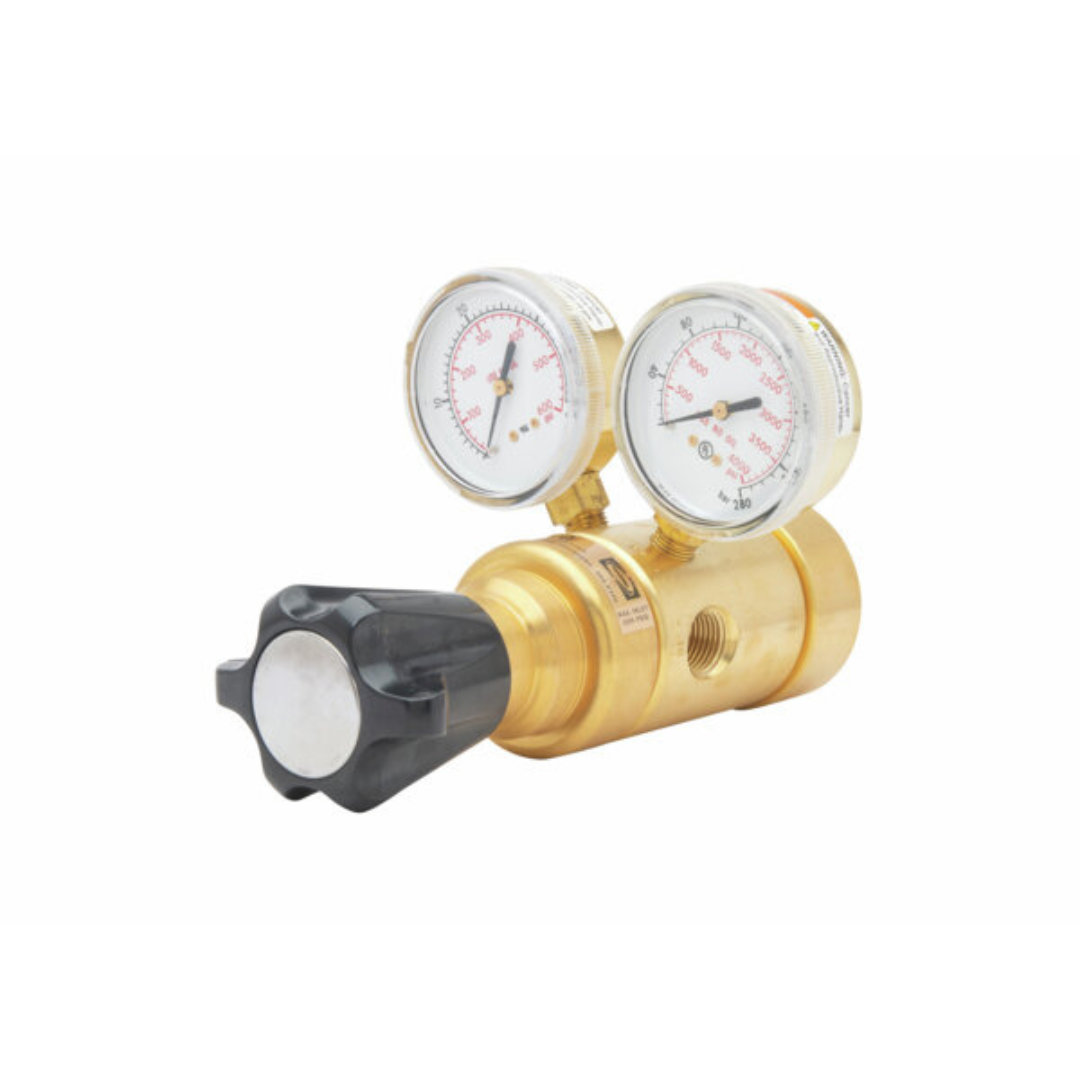

Harris Model HP750-500 Servo-Dome Single-Stage Regulator

Harris Model HP750-500 Servo-Dome Regulator

Model HP750 series is a high pressure, high flow dome loaded regulator. The key to the performance of this regulator is the servo-dome load technology where the pilot regulator and dome regulator are integrated into one body with no external tubing. The servo-dome load features allow the regulator to supply high flow rates with straight line pressure regulation. Typical applications include high flow laser assist gases, pressure transfer, blanketing and high flow manifolds. Features include brass barstck body, bonnet and dual scale gauges, a one-piece encapsulated seat design with 10 micron filtration and PTFE Teflon® seat and tamper proof, self-reseating internal safety valve.

Features

• Servo-dome load technology allows regulator to supply high flow rates with straight line pressure regulation
• Automatically adjusts the regulator as the cylinder pressure declines providing steady outlet pressure and flow rate without user adjustment
• Ergonomic Noryl plastic knob for easy grip and precise adjustment
• Brass barstock body and bonnet for longer service life
• Neoprene diaphragm for better pressure control
• 2.5" Brass dual scale (psi/bar) easy-to-read gauges
• One-piece encapsulated seat design with internal filter to protect the CTFE (Kel-F®) seat from particulate contamination
• Tamper-proof, self-reseating internal safety valve
• Conforms to CGA E-4 standard for gas pressure regulators



Part Number - 3000868
