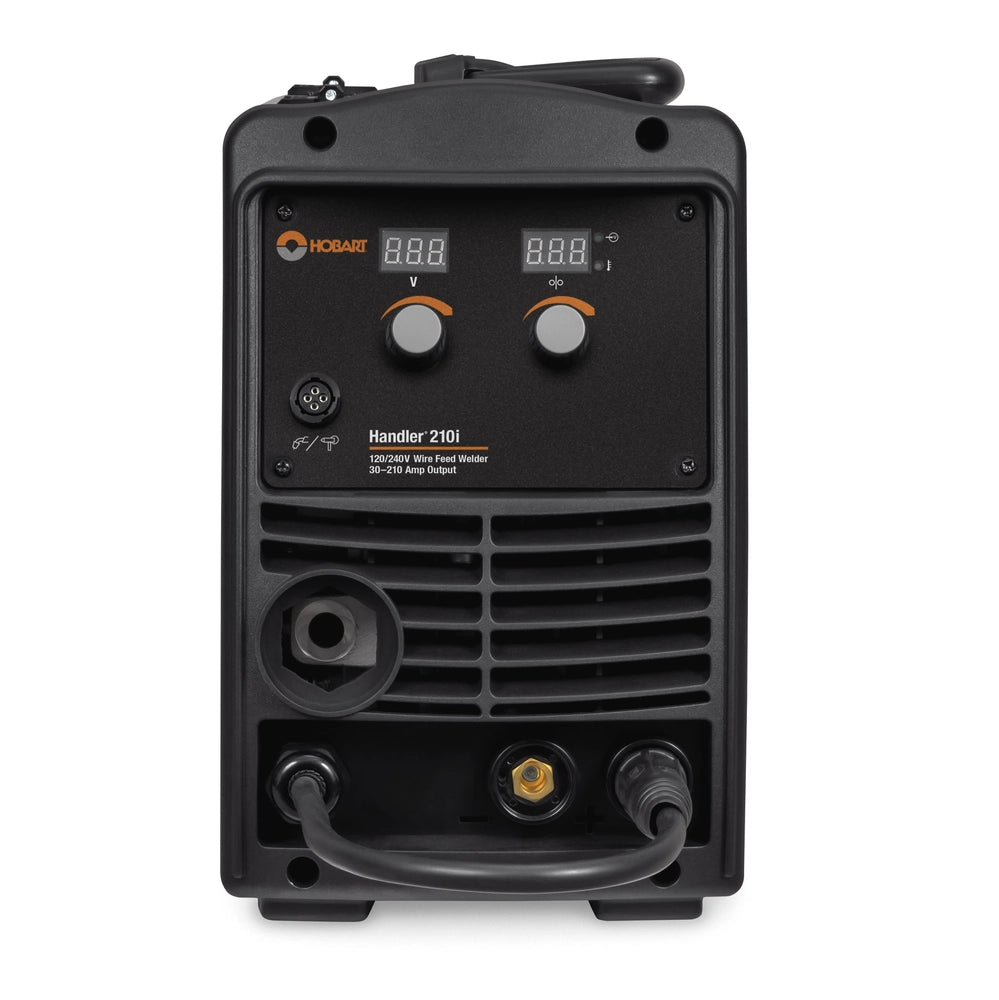

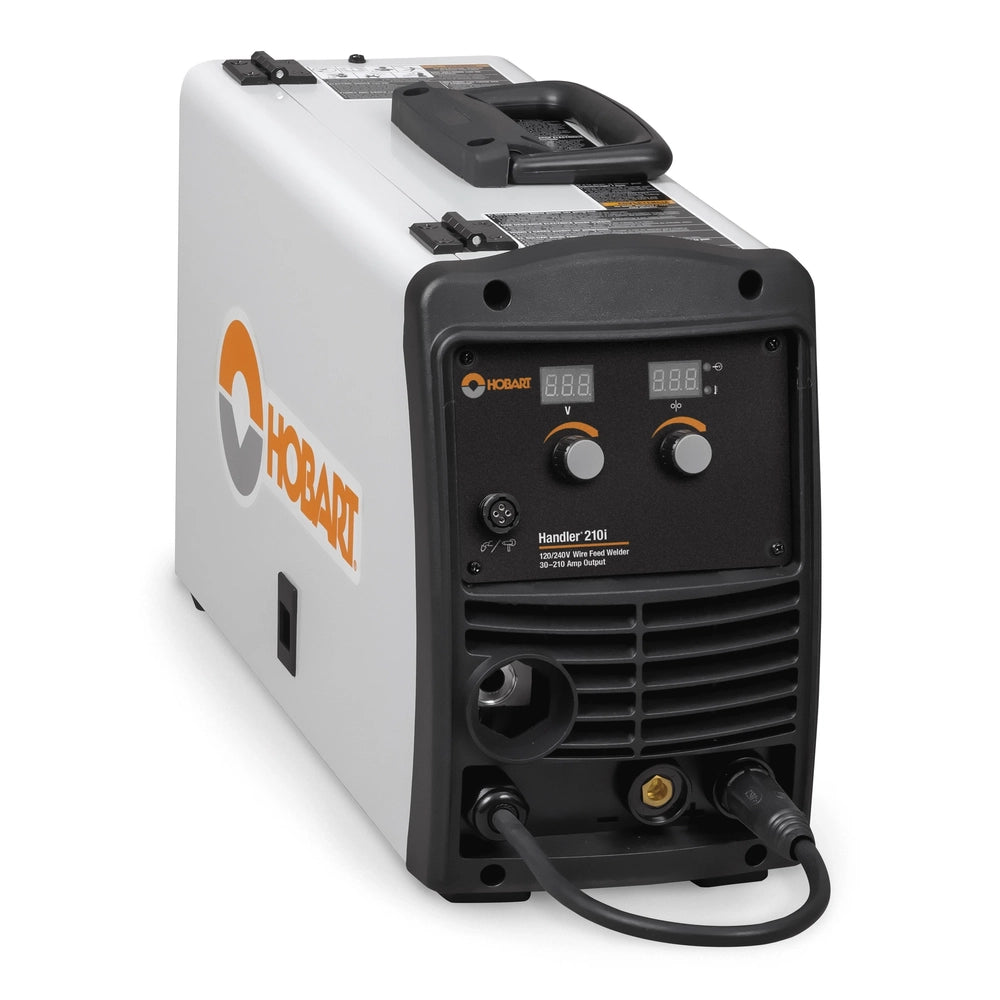

Hobart Handler® 210i: 120/240-Volt Wire Feed Welder (30-210 Amp Output)

The Handler® 210i is a powerful and versatile machine offering superior arc performance at a great value. Its dual-voltage input power gives you the flexibility to connect to common 120-volt or 240-volt receptacles without the use of any tools. Weighing only 26 pounds, this highly portable unit provides a broad output range of 30-210 amps. You can weld mild steel as thin as 24 gauge up to 3/8 inch in a single pass, and easily run thicker materials with multiple passes.

    Key Features

    • Dual-Voltage Input: Allows connection to 120 V or 240 V receptacles without tools; simply choose the plug that fits the receptacle.
    • Infinite Control: The easy-to-use interface features infinite wire speed and voltage control. This offers easier fine control of the output parameters for improved arc performance with less spatter.
    • Spool Gun Ready: Spool guns enhance feedability and reduce "bird-nesting" associated with soft aluminum wires. No additional control box or adapter is required to connect the SpoolRunner™ 100 spool gun.

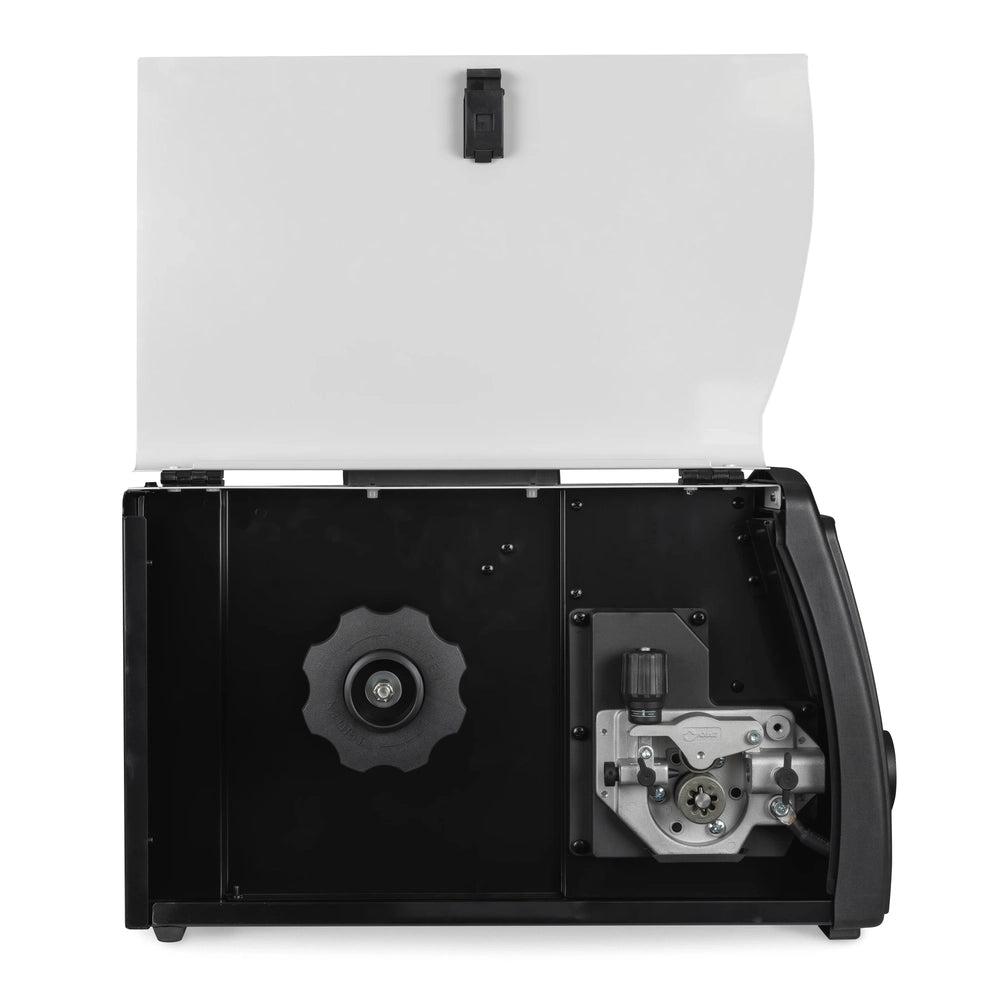

    • Flexible Spool Hub: The spool hub assembly accommodates 4-inch or 8-inch spools. This offers you the flexibility to use small or large spools of wire to better suit your welding needs.
    • Quick Select™ Drive Roll: Makes setup quicker by offering three grooves. It features two grooves for different sizes of solid wire and a third groove for flux-cored wire.
    • Generator Compatible: The machine will operate and provide full output when powered by a generator with 9,500 watts (9.5 kW) continuous or higher output on 240 volts. Limited output will occur when used with smaller generators.
    • Industrial Warranty: Backed by the Hobart 5/3/1 industrial warranty. This includes five years on transformers, stabilizers and main rectifiers, three years on generators, PC boards and drive systems, and one year on guns.

    Product Specifications and Details
    Specification Details
    Input Power Options 120 V or 240 V (1-Phase, 50/60 Hz)
    Welding Amperage Range 30-140 A on 120 V, 30-210 A on 240 V
    Mild Steel Thickness Range 24 ga. to 3/8 in. in a single pass
    Duty Cycle (240 V) 210 A at 24.5 VDC, 25% duty cycle
    Duty Cycle (120 V, 20A) 90 A at 18.5 VDC, 25% duty cycle
    Duty Cycle (120 V, 15A) 45 A at 16.3 VDC, 100% duty cycle
    Max. Open Circuit Voltage 53 VDC on 120 V, 72 VDC on 240 V
    Wire Feed Speed Range 60-650 ipm (1.5-16.5 m/min.)
    Generator Compatible? Yes (Requires 9.5 kW continuous or higher on 240 V for full output)
    Spool Gun Adapter Needed? No (Plug-and-play ready for SpoolRunner™ 100)
    Supported Spool Sizes 4-inch and 8-inch spools
    Machine Dimensions H: 14.625 in. (371 mm), W: 9.75 in. (248 mm), D: 20 in. (508 mm)
    Net Weight 26 lb. (11.8 kg)

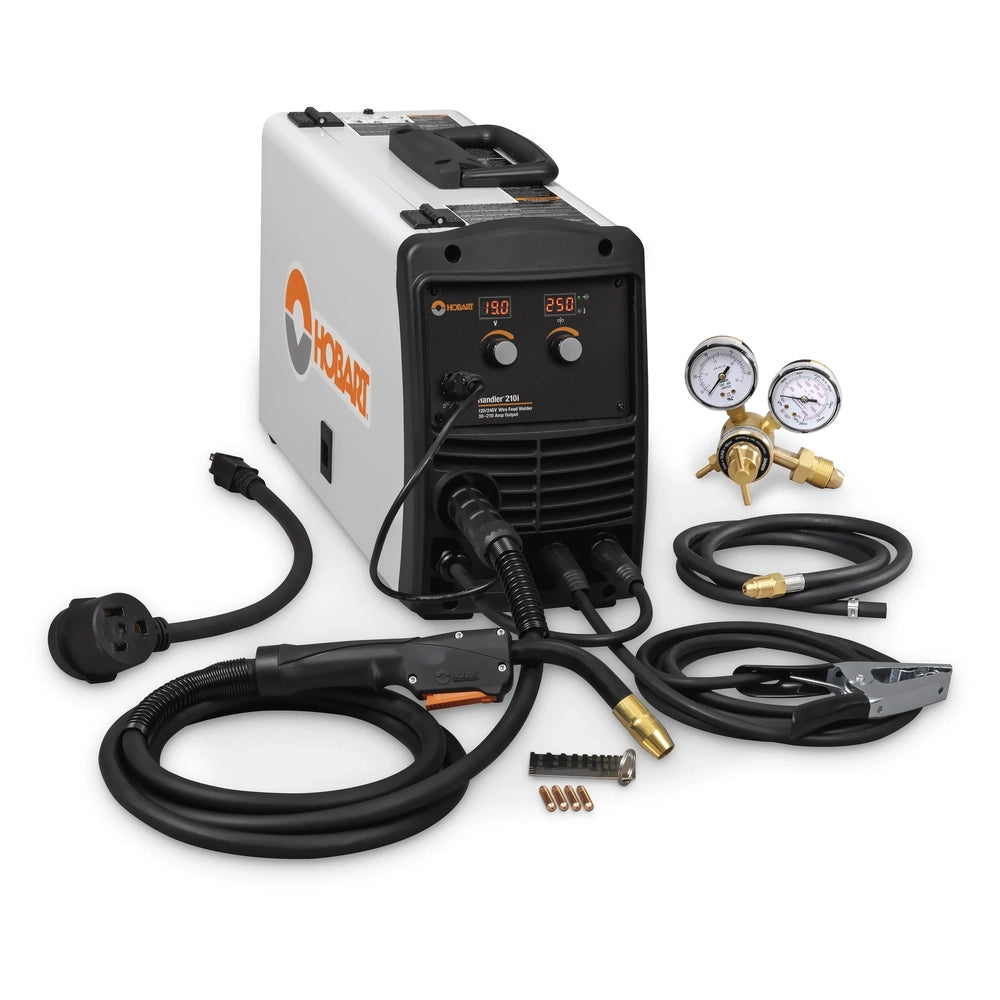

    Hobart Handler 210i Package Includes:

    • 10 ft. (3 m) HR-100 MIG gun with ergonomic, rubber-padded handle.
    • 10 ft. (3 m) work cable with clamp.
    • Power cord with adapter for 120 V and 240 V.
    • Built-in gas solenoid valve and dual-gauge regulator with gas hose.
    • Extra .030 and .035 in. (0.8 and 0.9 mm) contact tips.
    • Quick Select™ drive roll for .024 in. (0.6 mm) or .030/.035 in. (0.8/0.9 mm) solid wire, and .030/.035 in. (0.8/0.9 mm) flux-cored wire.
    • Material thickness gauge.

    Full Product Data Sheet
