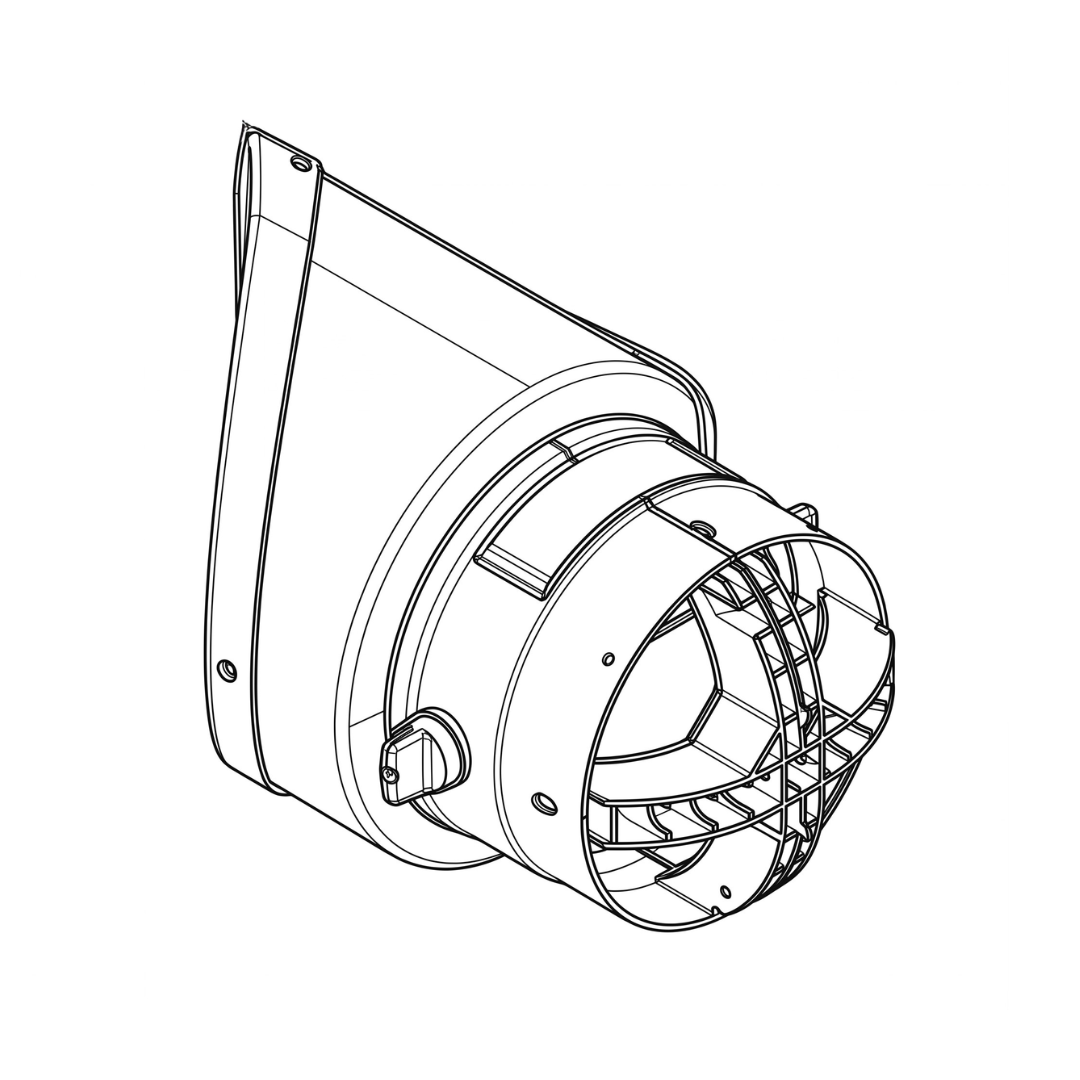

Lincoln Electric 9SM27568 - RotaHood Assembly
Lincoln Electric 9SM27568, RotaHood Assembly
Lincoln Electric 9SM27568, RotaHood Assembly

Lincoln Electric 9SM27568, RotaHood Assembly

$376.70
$376.70
0% OFF Sold Out
0 In Stock More Coming Soon
Upsell Product Image-2

CK Worldwide 2.0% Lanthanated (Blue) Tungsten

$5.70
Upsell Product Image-7

2/4 Series Gas Lens Alumina Cups

$2.90
Upsell Product Image-8

CK Worldwide LaYZr (Chartreuse) Tungsten

$5.70

Lincoln Electric 9SM27568 - Rotahood Assembly



  • Replacement Rotahood Assembly
  • Fits Lincoln Prism fume extraction arms LFA, LTA, Prism
  • Diameter: 8 inches (203 mm)
  • Connection Type: Collar-mount with a seal band (Item 2D / 9SFC0840101030).
  • Features: Integrated throttle valve (Item 2B) and dual control knobs (Item 2C).
  • Lincoln Part Number: 9SM27568
  • Supersedes Part Number: 9SS23384-37 // 9SS31226-320

Includes
Item Part No. Name Qty
2A 9SS31226-121 Inlet Flow Guide 1
2B 9SFC0720206010 Throttle Around Universal-PL 1
2C 9SS31226-371 Knob, Throttle 2
2D 9SFC0840101030 Arm Seal Band - Cuff 1
2E 9SS31226-369 Female Threaded Round Standoff 1
2F 9SCF000422 #6-32X2.50PPHS-FULL-GR2- ZINC 2
2G 9SS31226-372 Plug 1
