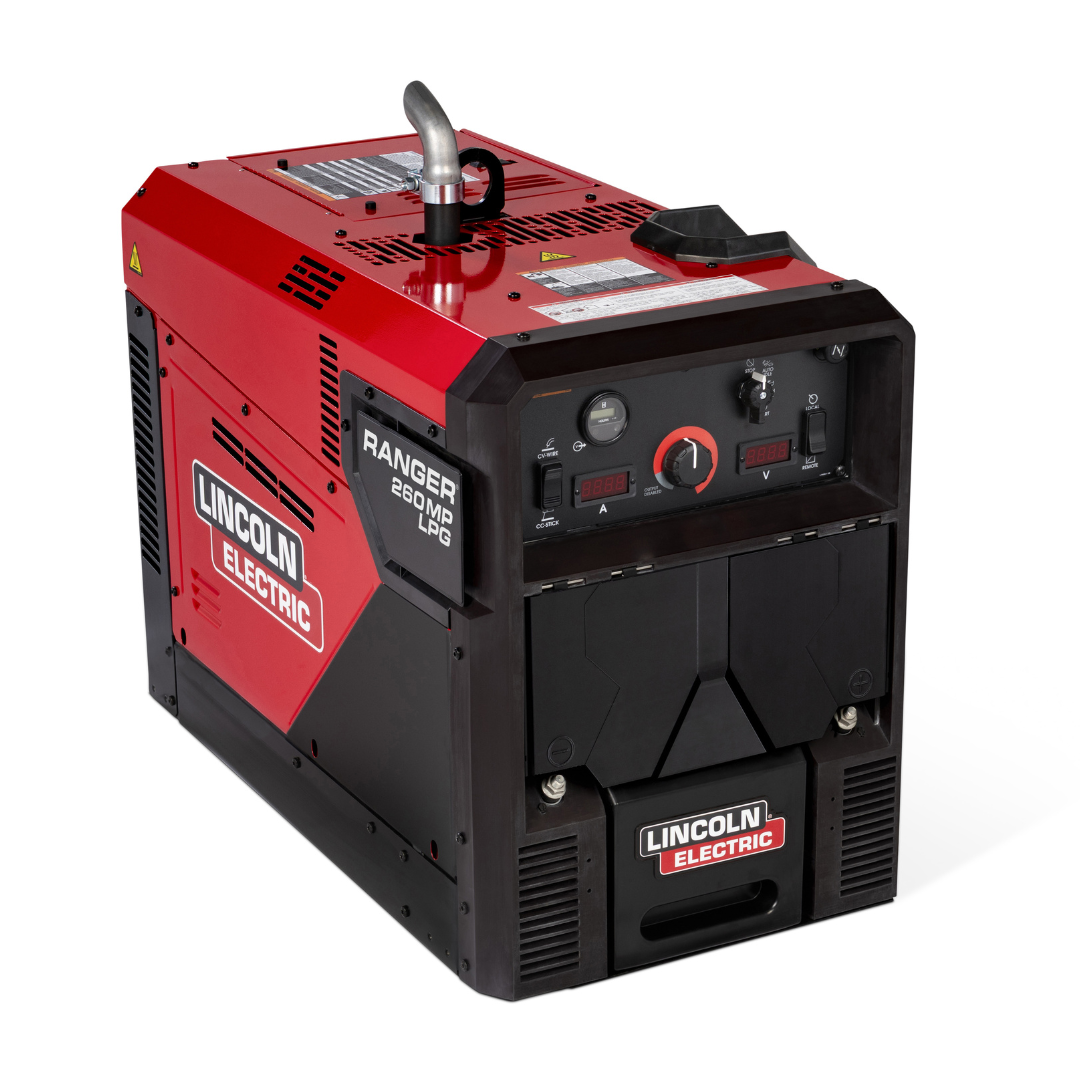

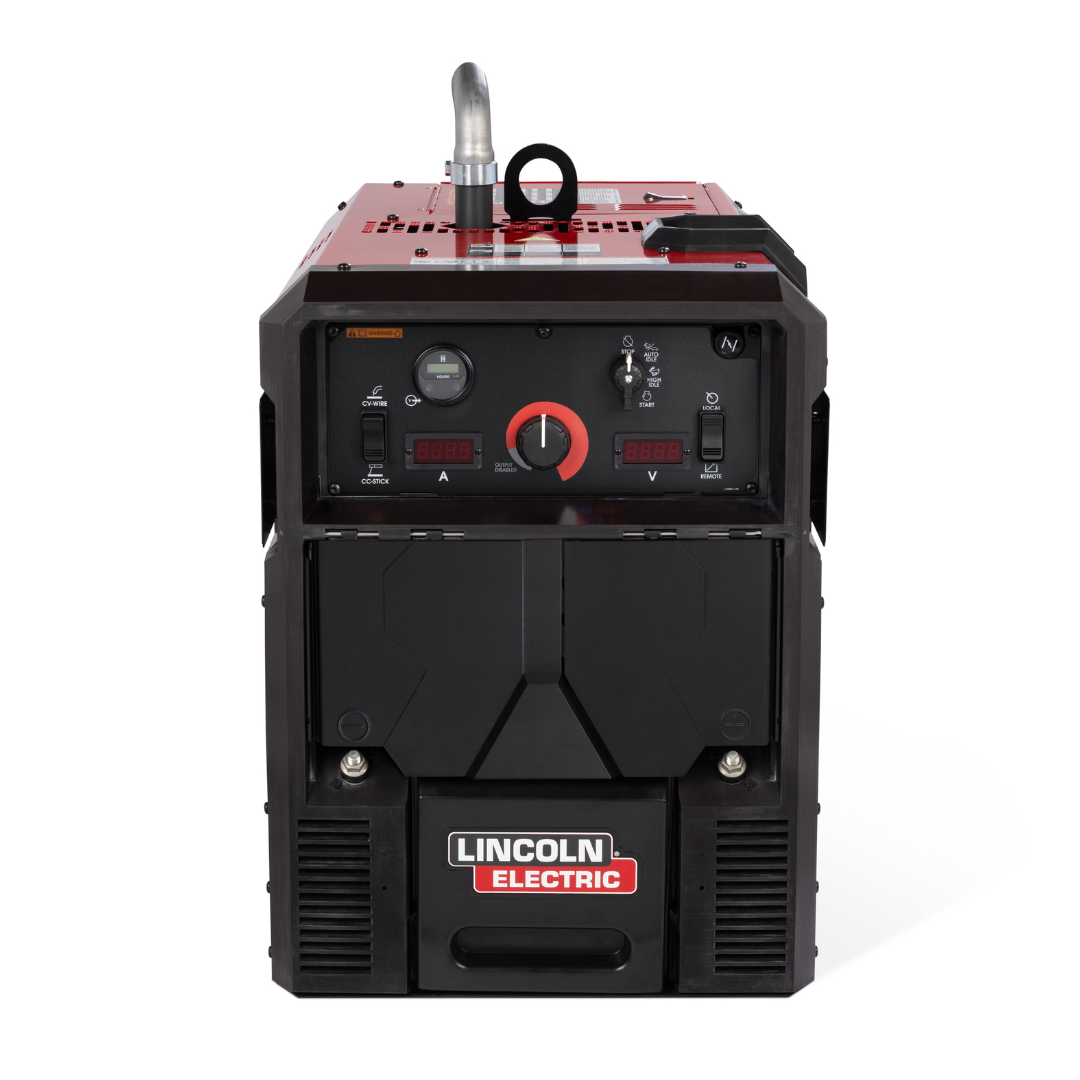

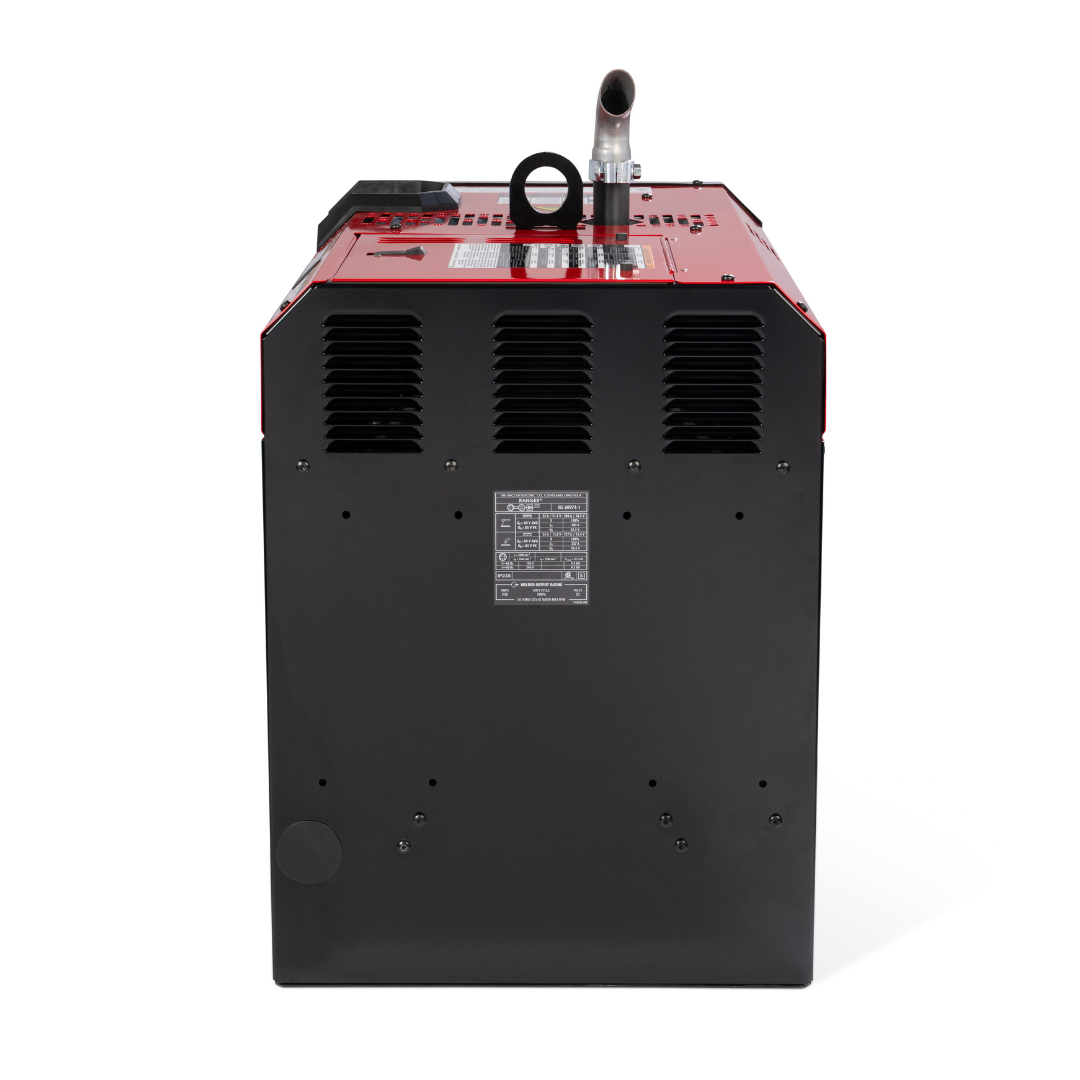

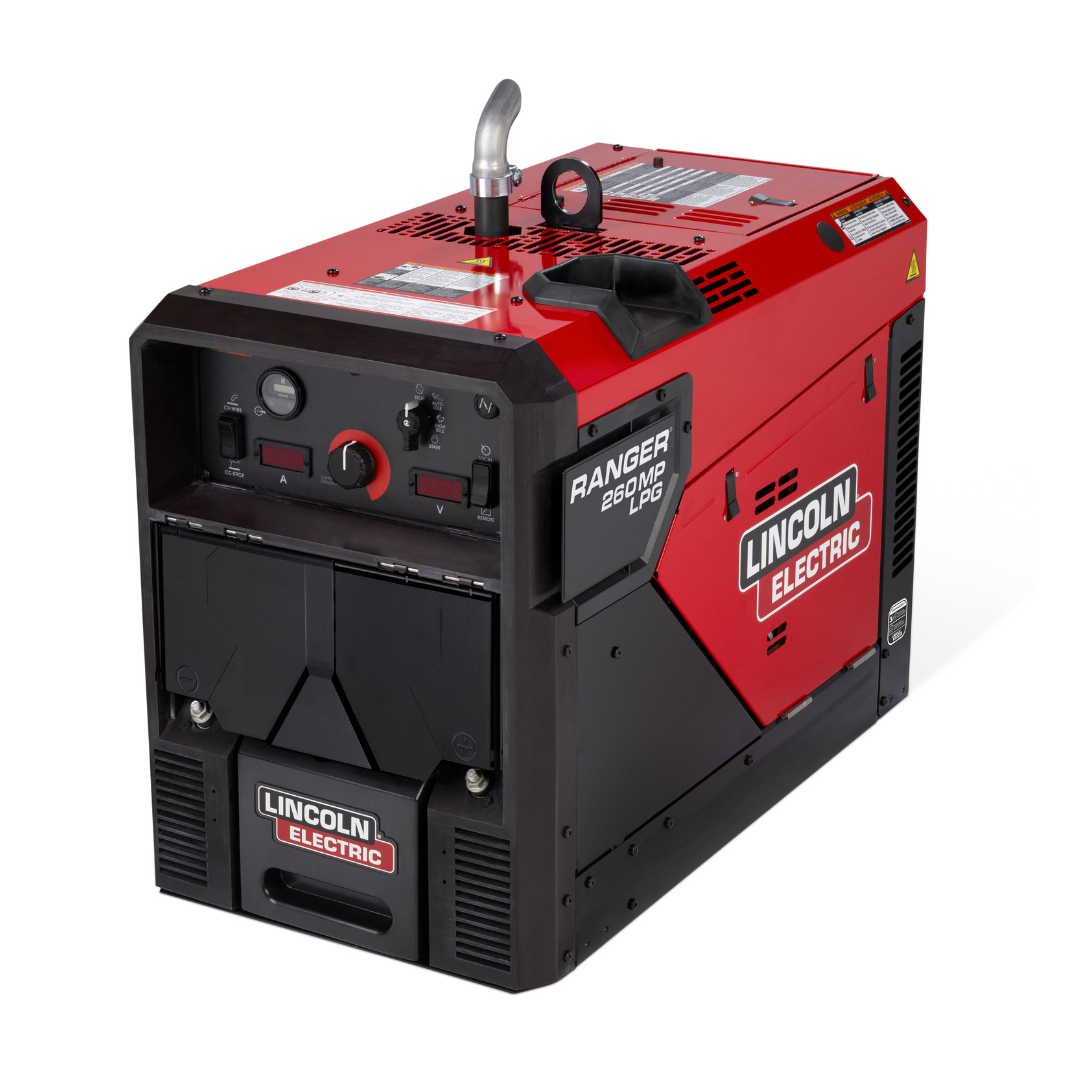

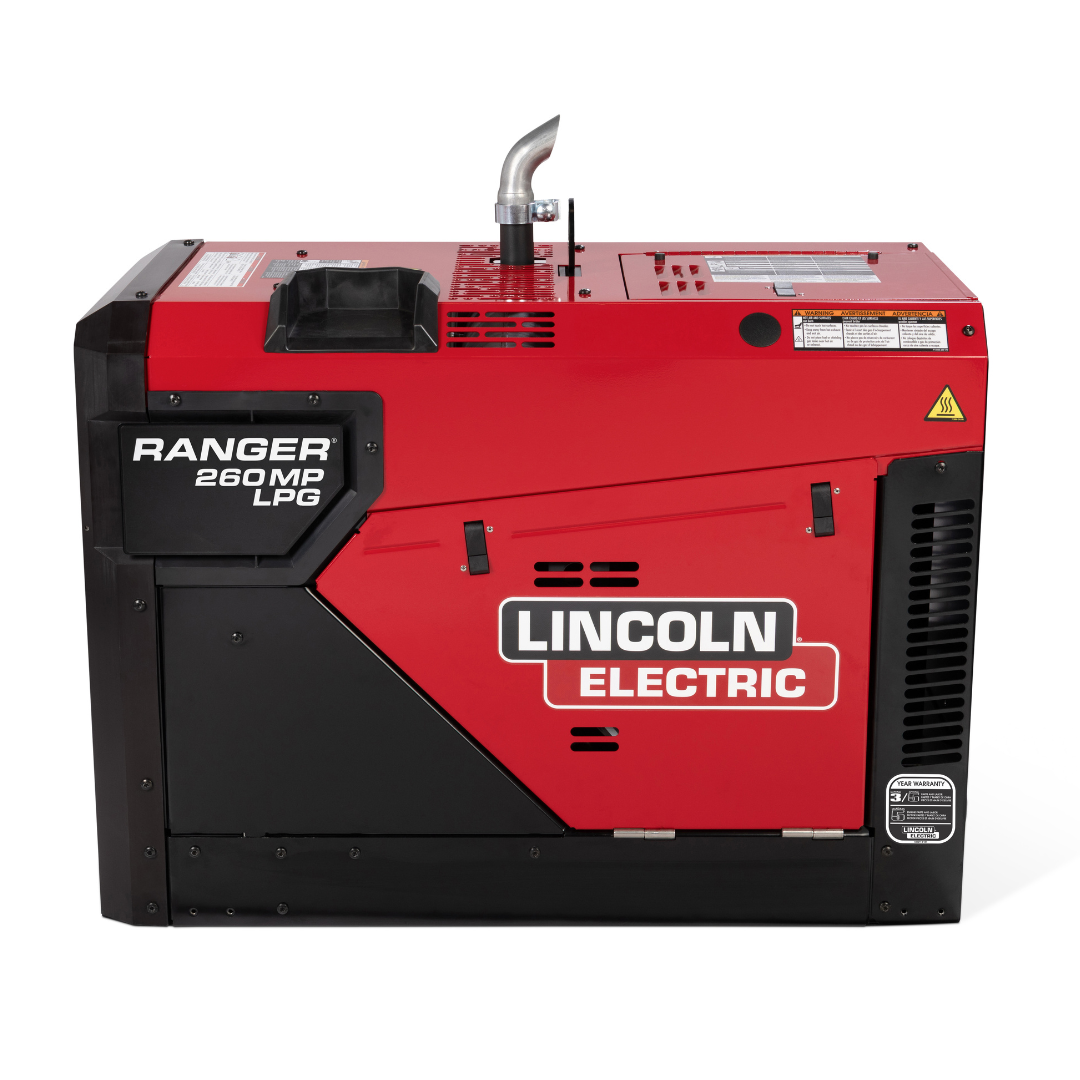

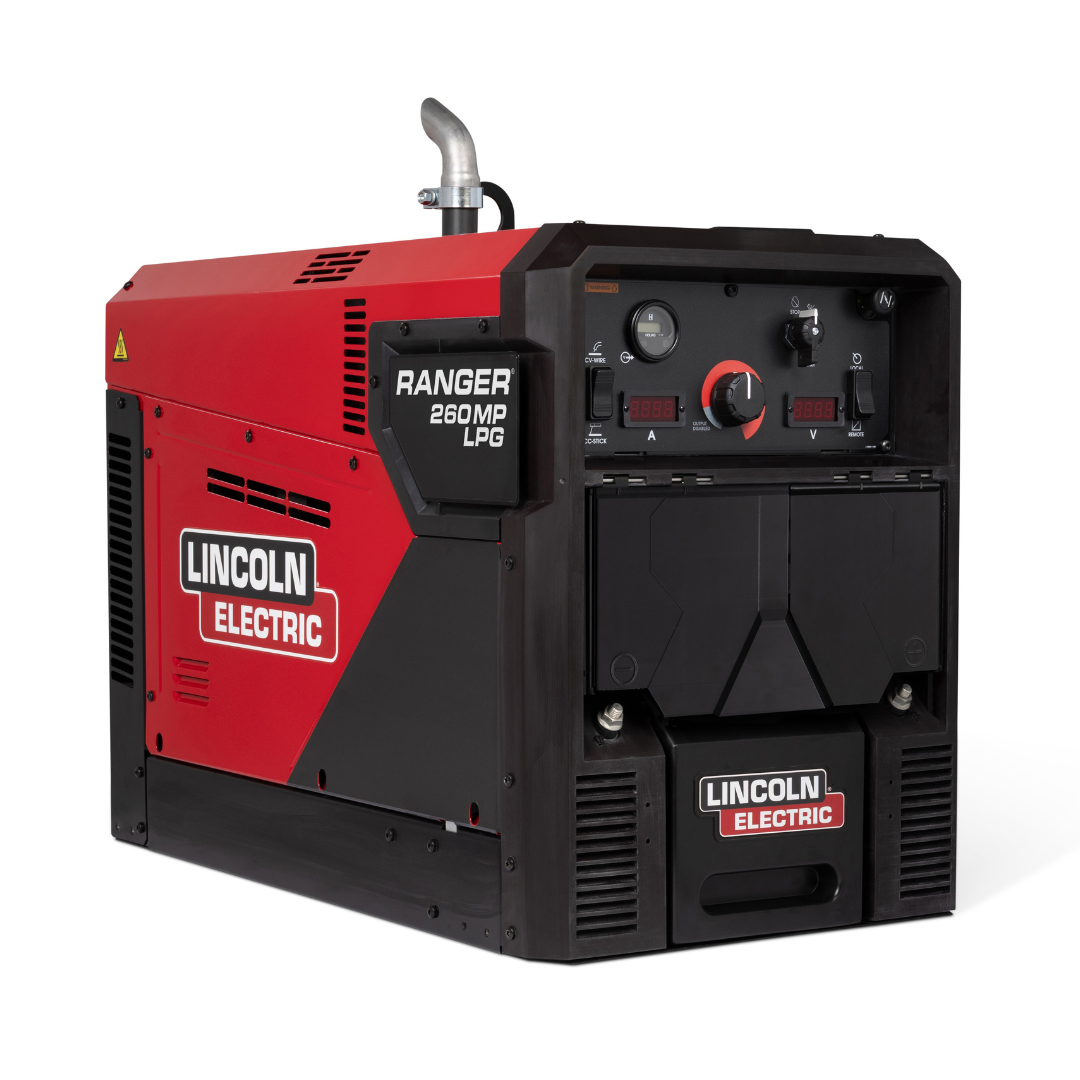

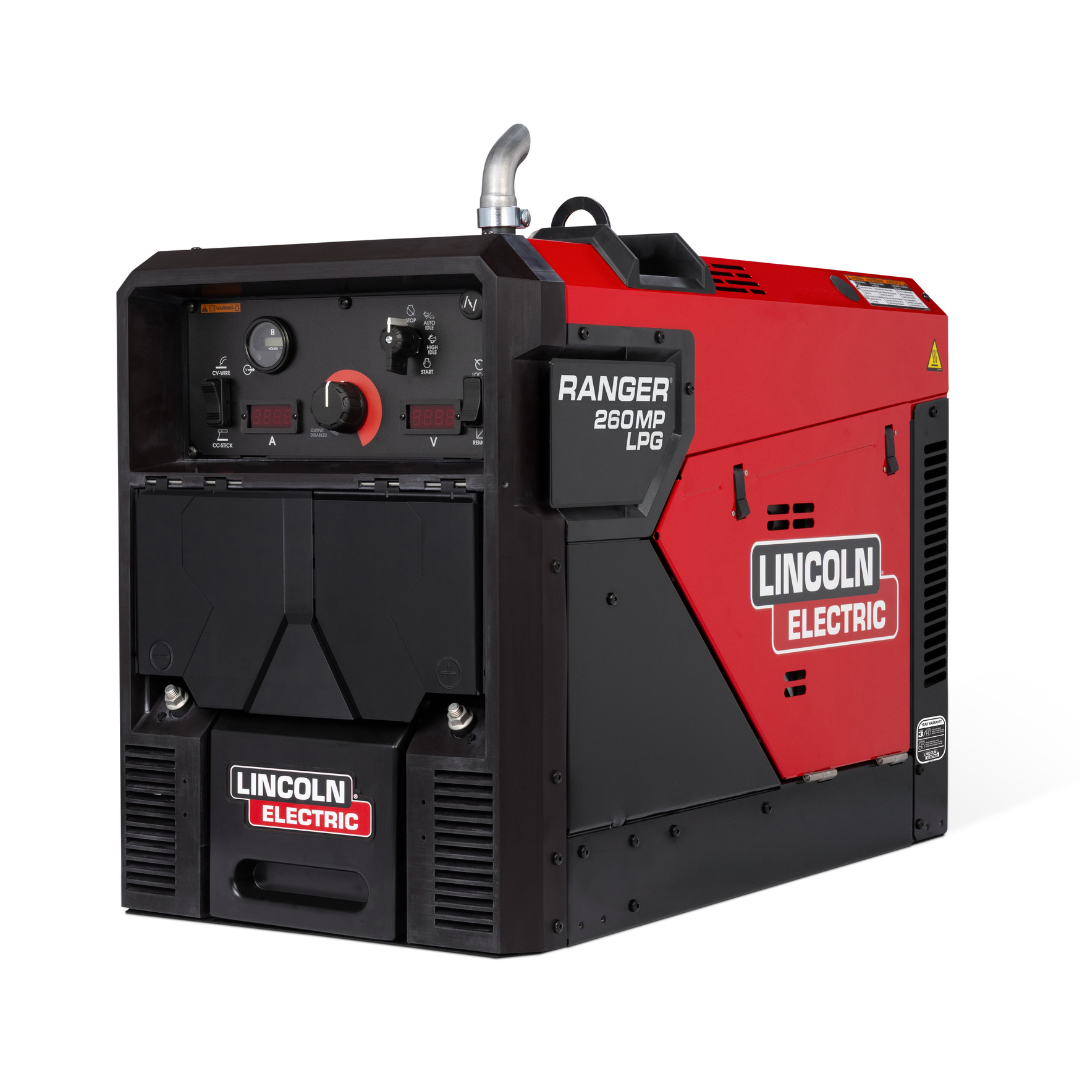

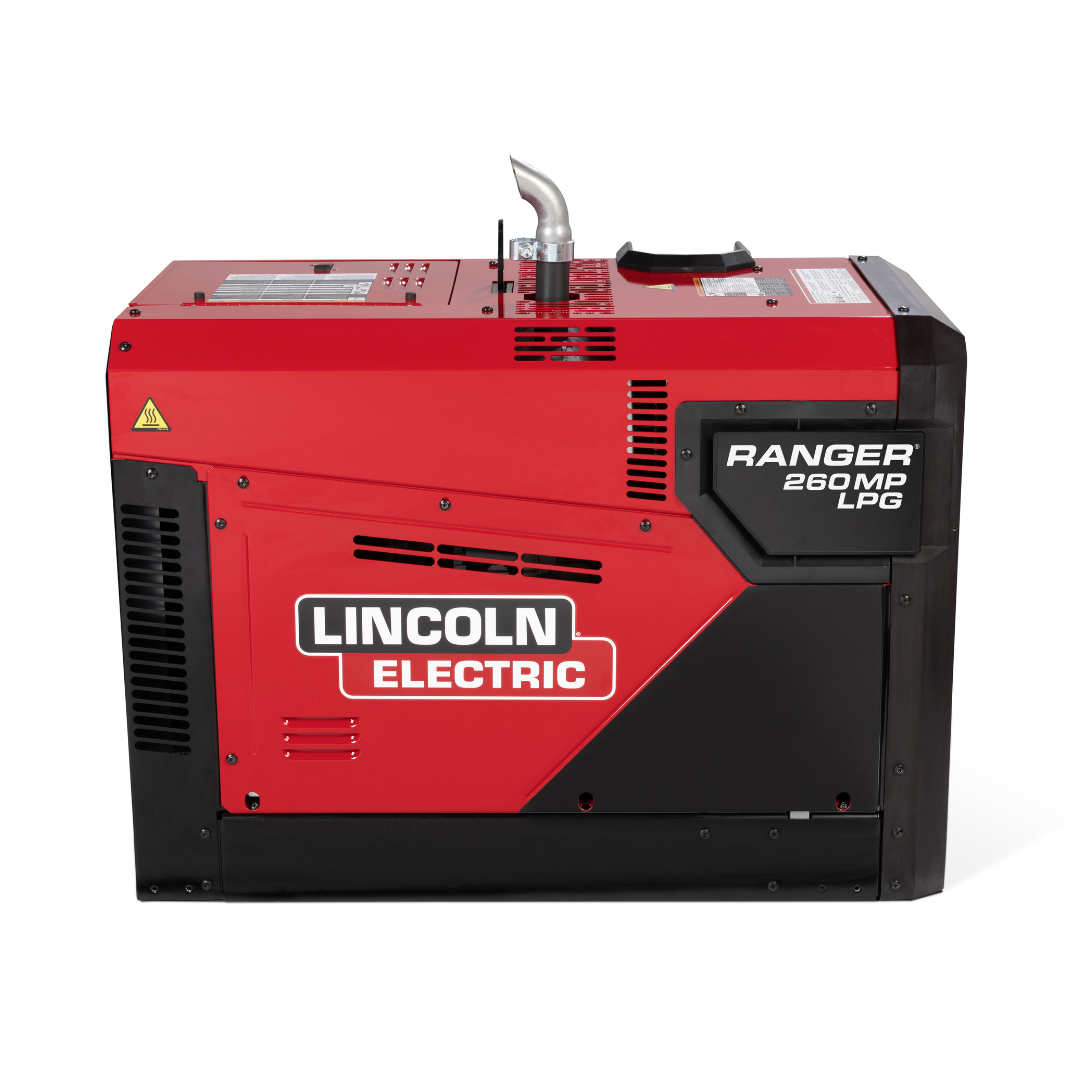

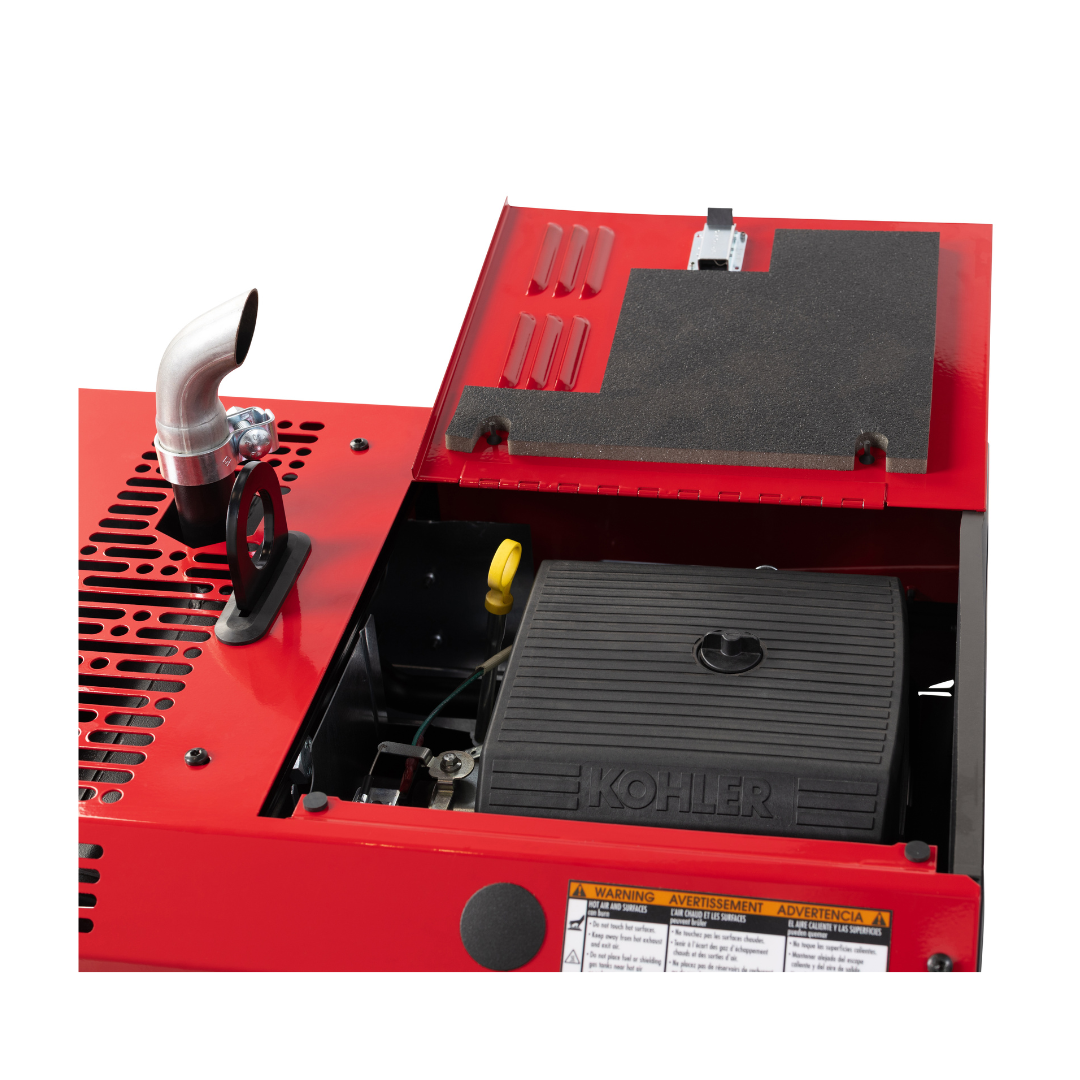

Lincoln Electric Ranger 260MP LPG Engine Driven Welder Generator (Rehlko)



LPG Model - Propane Powered for Safe Use Indoors

The Ranger® 260MP™ LPG engine-driven welder generator provides multi-process welding and generator power for environments where gasoline or diesel may not be acceptable.

The Ranger runs cooler, quieter, and longer than ever before. Straightforward controls, quick setup, and improved serviceability mean operators spend more time welding and less time adjusting settings.

Its reduced weight, balanced design and consistent, reliable performance keep crews moving. One knob with glove-friendly operation keeps the focus on the work, not the machine.

All Ranger MPs come factory filled with 300 hour premium oil to maximize up
time and are equipped for reliable fueling

Key Features

  • Liquefied Petroleum Gas (LPG) — Ideal for restricted or specialized jobsite
    environments
  • One-knob, glove-friendly control — Faster setup with less adjustment on the job
  • High-quality multi-process welding — 230 amps of consistent, reliable weld performance across applications
  • Clean generator power — 10kW safely powers jobsite tools and equipment
  • Auto-idle — Reduces noise and fuel use when welding demand drops
  • Low-noise operation — Better for jobsite comfort and communication
  • GFCI-protected receptacles — Added protection when powering jobsite tools

Industry Leading Design

  • Reduced-weight, jobsite-mobile design — Easier transport and handling on site
  • IP23S-rated enclosure — Built for durability in tough outdoor conditions
  • Rear-engine layout — Easier access to service points
  • Front battery access — Faster battery service or replacement

Product Specifications
Product Name Ranger® 260MP LPG
Product Number K5939-1
Processes MIG, Stick, Flux-Cored
Applications Construction, Farm, Maintenance & Repair, Service
Weld Power (IEC Rating @ 100%) • CC/Stick: 231A / 29.2V / 100%
• CV/Wire: 253A / 26.7V / 100%
Output Range 35–260A (CC) | 15–30V (CV)
Max OCV 85 VDC
Generator Output (Peak / Continuous) 10,000 W Peak
9,500 W Continuous
Generator AC Voltage 120/240V AC (Single Phase)
Full kVA Receptacle (14-50R) 40A @ 240VAC
40A @ 120V (each branch circuit)
120V Receptacles (5-20) 20A @ 120VAC total, GFCI protected
Engine Model Rehlko CH730 LP
Engine Horsepower & Displacement 21.5 hp @ 725 cc (44 in³)
Engine Controls & Fuel Type Manual choke, carburetor
Liquefied Petroleum Gas (LPG)
Engine Speeds 2,500 RPM (Idle) / 3,600 RPM (High Idle)
Battery 12V Group 26 (500 CCA)
Dimensions (H x W x D) 26.4 x 20.0 x 36.4 in (671 x 508 x 924 mm)
Height to Top of Exhaust Pipe 33.1 in (840 mm)
Weight 424 lbs (193 kg)

What's Included

  • (1) Ranger 260MP LPG Engine Driven Welder Generator

Ranger 260MP LPG Data Sheet
