Lincoln Power MIG 220 AC/DC Multi-Process Welding Machine

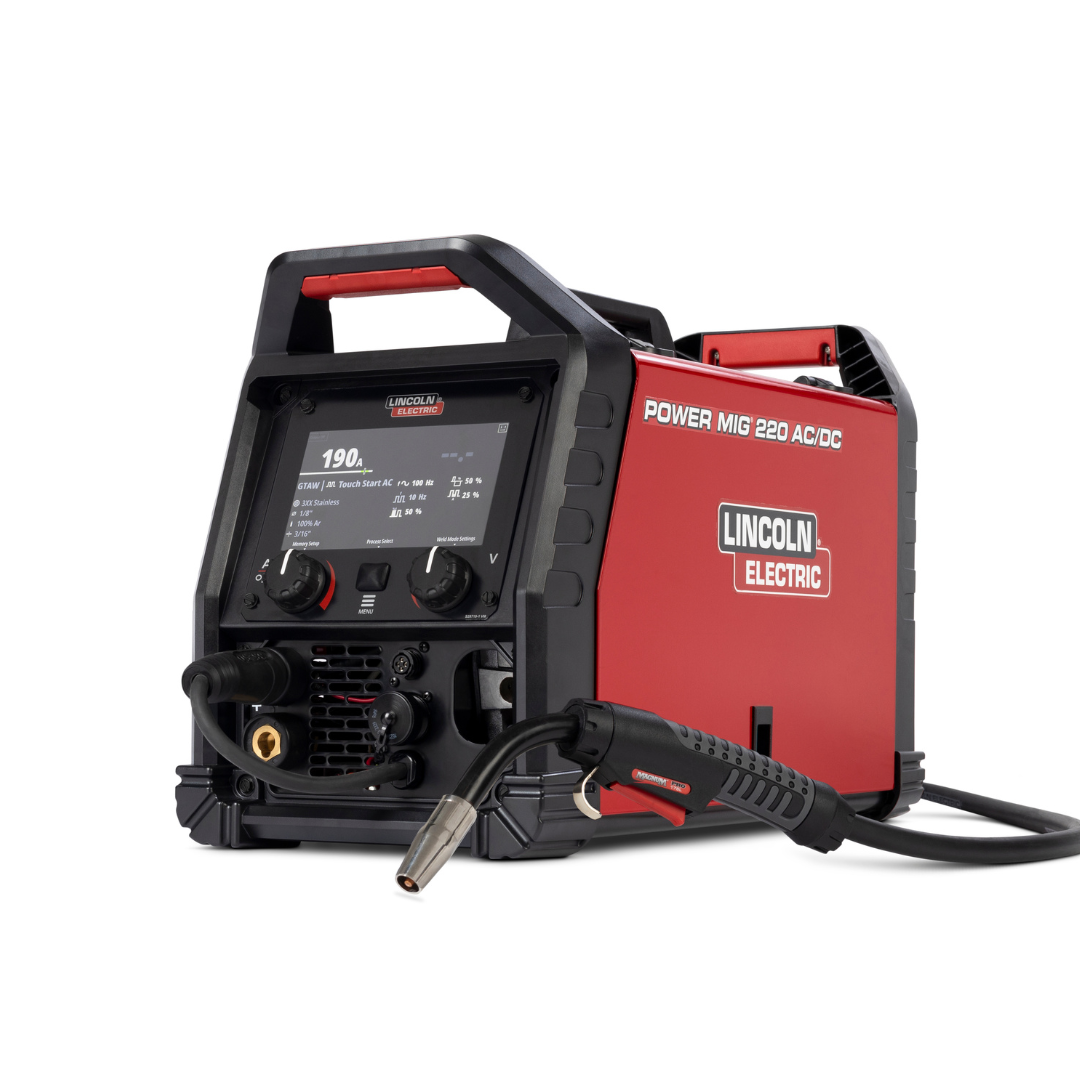

Lincoln Electric POWER MIG® 220  AC/DC Multi-Process Welder

POWER MIG® 220  AC/DC multi-process welder is portable for pulsed MIG, Stick, AC/DC TIG, and Flux-Cored welding.

The POWER MIG 220MPi AC/DC multi-process welder is a reliable, easy-to-use machine for the general fabricator, small contractor, or repair personnel. The sleek, rugged, and solid ergonomic design with multiple lift points maximizes mobility around the shop, and user-friendly technology makes the setup process & selection of weld settings incredibly simple. Take on any job with pulsed MIG, AC/DC TIG, Stick, or Flux-Cored; with the versatile POWER MIG 220 MPi AC/DC welder.

Top Features

• Multi-Process Capable - Welds pulsed MIG, Flux-Cored, Stick, and AC/DC TIG.
• Dual Input Voltage - 120V and 230V inputs so you can plug into any common power supply.
• Ergonomic Case - Sleek and robust case design with multiple lift points for ease of mobility around the shop.
• Built-in TIG Solenoid and Foot Pedal Adapter - The POWER MIG 220 AC/DC welder is designed to accept a TIG torch, so no installation is required.
• Robust and Reliable Wire Drive - Ensures proper and consistent feeding for optimal welding experience.
• Ready.Set.Weld® Technology - Simplifies setup by recommending optimal welding parameters for each welding procedure.
• ArcFX® Technology - Provides instant visual feedback on how settings affect the weld outcome.
• Memory Capability - Easily recall saved settings to get welding faster.    Lightweight and Portable - Only 51 lbs.

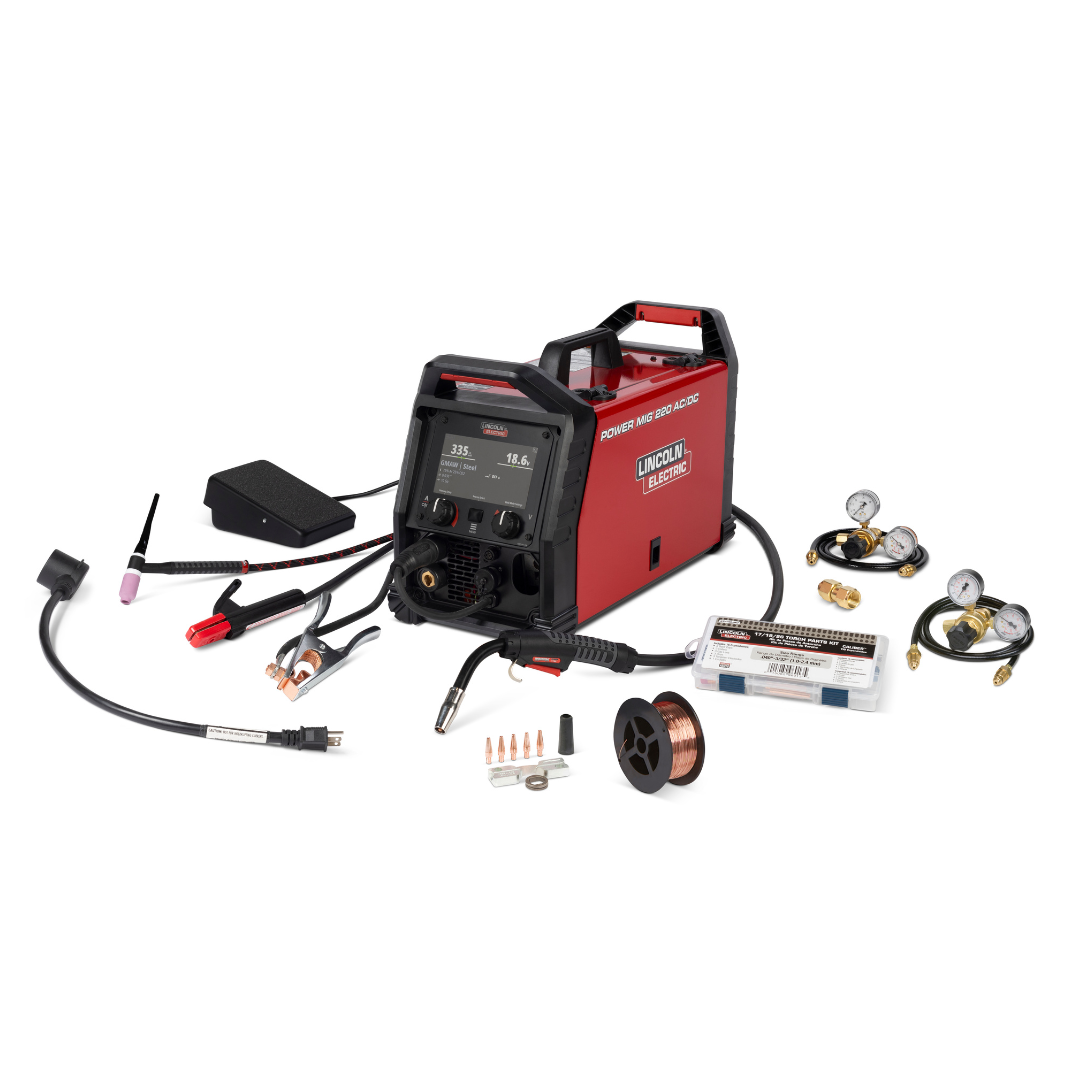

What's Included:

• (1) POWER MIG® 220 AC/DC Multi-Process Welder
• (1) K4529-1 Magnum® PRO 175L Gun 10 ft. (3.0 m)
• (1) K5339-17F-1 Caliber 17 Series 150 Amp Air-cooled TIG Torch with Flexible Head and Ultra-Flex™ Cable Assembly
• (1) KP4760-MD 17/18/26 Series Medium Duty TIG Torch Parts Kit
• (1) 230V to 120V Power Cord Adapter
• (1) Work Cable and Clamp
• (1) Electrode Holder and Lead Assembly
• (1) Adjustable Gas Regulators and Hose
• (1) Gasless Nozzle
• (1) Gun Cable Liner (pre-installed in gun)
• (1) Spindle Adapter
• (1) ED030631 Sample 2 lb. (0.91 kg) Spool of SuperArc® L-56® MIG Wire
• (2) Contact Tips 0.025 in. (0.6 mm)
• (2) Contact Tips 0.030 in. (0.8 mm)
• (2) Contact Tips 0.035 in. (0.9 mm)
• (1) Drive Rolls 0.025 - 0.030 in. (0.6 - 0.8 mm) and 0.035 in. (0.9 mm) (Installed)
• (1) Knurled Drive Roll 0.030 - 0.045 in. (0.8 - 1.1 mm)
• (1) Wire Guide 0.045 in. (1.1 mm) and 0.025 - 0.035 in. (0.6 - 0.9 mm) (Installed)


Manufacturer Part Number: K5379-1

Product Data Sheet | Consumables, Parts, and Accessories
