Miller Dynasty® 800 Wireless Foot Control Complete



The Dynasty 800 model is an industrial-grade TIG/Stick welding power source designed for heavy-duty applications. It provides an impressive amperage range of 5–800 A, making it suitable for high-precision welding across various materials, including thick metals. Its robust design supports 3-phase or 1-phase power input, providing flexibility in diverse job environments.

Key Features of the Dynasty 800:

  • Processes Supported: TIG (GTAW), Pulsed TIG (GTAW-P), Stick (SMAW), Air Carbon Arc Gouging (CAC-A, up to 3/8 in.)
  • Input Power Compatibility: 208–600 V, 3-phase or 1-phase
  • Amperage Range: 5–800 A
  • Advanced Waveforms: Includes AC square, soft square, sine, and triangular waveforms for custom welding
  • Program Memory: Saves and recalls welding settings for productivity and consistency
  • Pro-Set™ Feature: Simplifies setup by eliminating guesswork in parameter configuration
  • Blue Lightning™: Ensures reliable high-frequency arc starts
  • Cooler-On-Demand™: Reduces energy consumption by operating only when cooling is required
  • QuietPulse™: Minimizes audible noise when activated

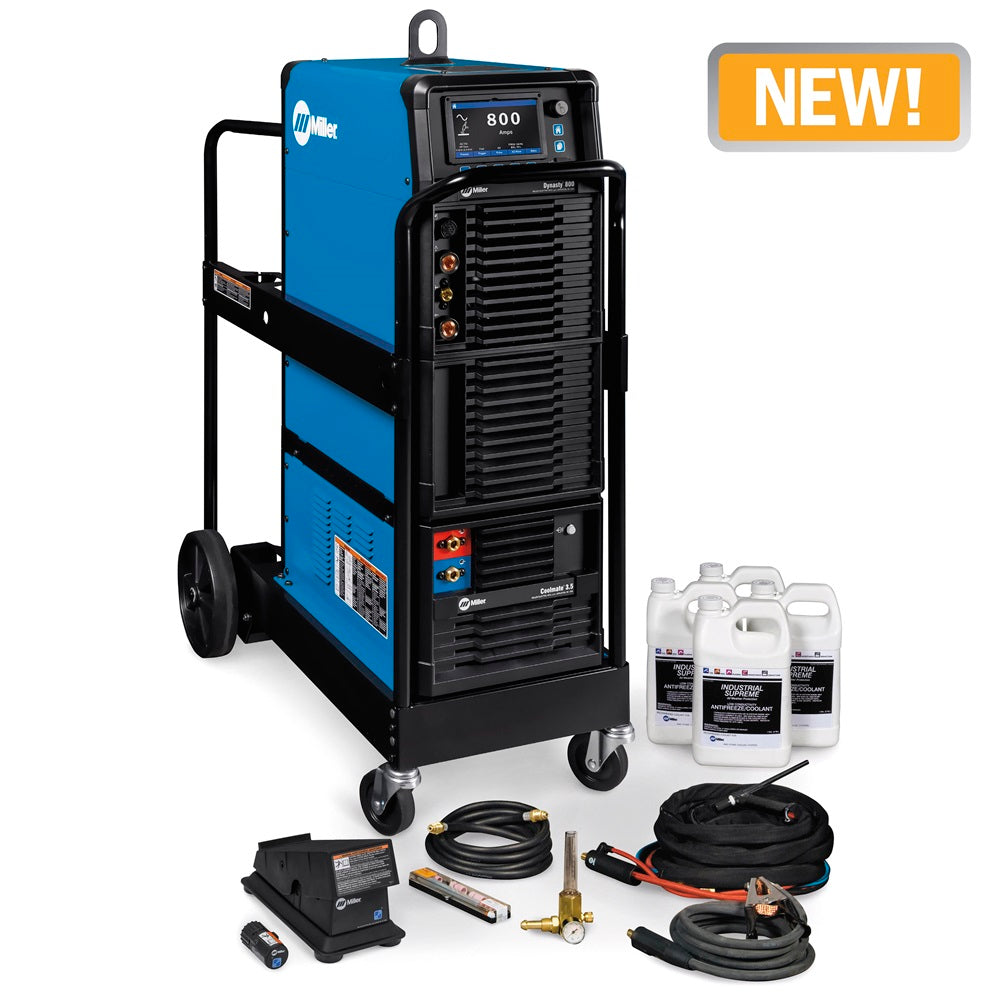

Package Includes

  • Dynasty® 800
  • Coolmate™ 3.5
  • Runner Cart
  • Weldcraft™ W-400 torch kit and accessories (300186)
  • Coolant (4 one-gallon bottles of 043810)
  • Wireless Foot Control System (301580)

Specifications:

Product Name // Part Number Dynasty 800 Wireless Foot Control Complete // 951000008
Input Power 208–600 V, 3-phase or 1-phase
Amperage Range 5–800 A
Rated Output 600 A at 44 V, 60% duty cycle
Max Open-Circuit Voltage 75 VDC (10–15 VDC for low OCV)
Dimensions (H × W × D) 34.25 in. × 13.875 in. × 24.313 in.
Net Weight 201 lb. (91 kg)
TIG Duty Cycle (3-phase) 800 A at 20%, 600 A at 60%, 500 A at 100%
Stick Duty Cycle (3-phase) 800 A at 20%, 600 A at 60%, 500 A at 100%
Material Thickness (AC/DC) 0.020–1 in.
Max Stick Electrode Diameter 1/4 in. (6.4 mm)
Max Carbon Arc Gouging 3/8 in. (9.5 mm)
Generator Requirement 50 kVA
Cooling System Cooler-On-Demand™, integrated cooler support

Full Product Data Sheet
