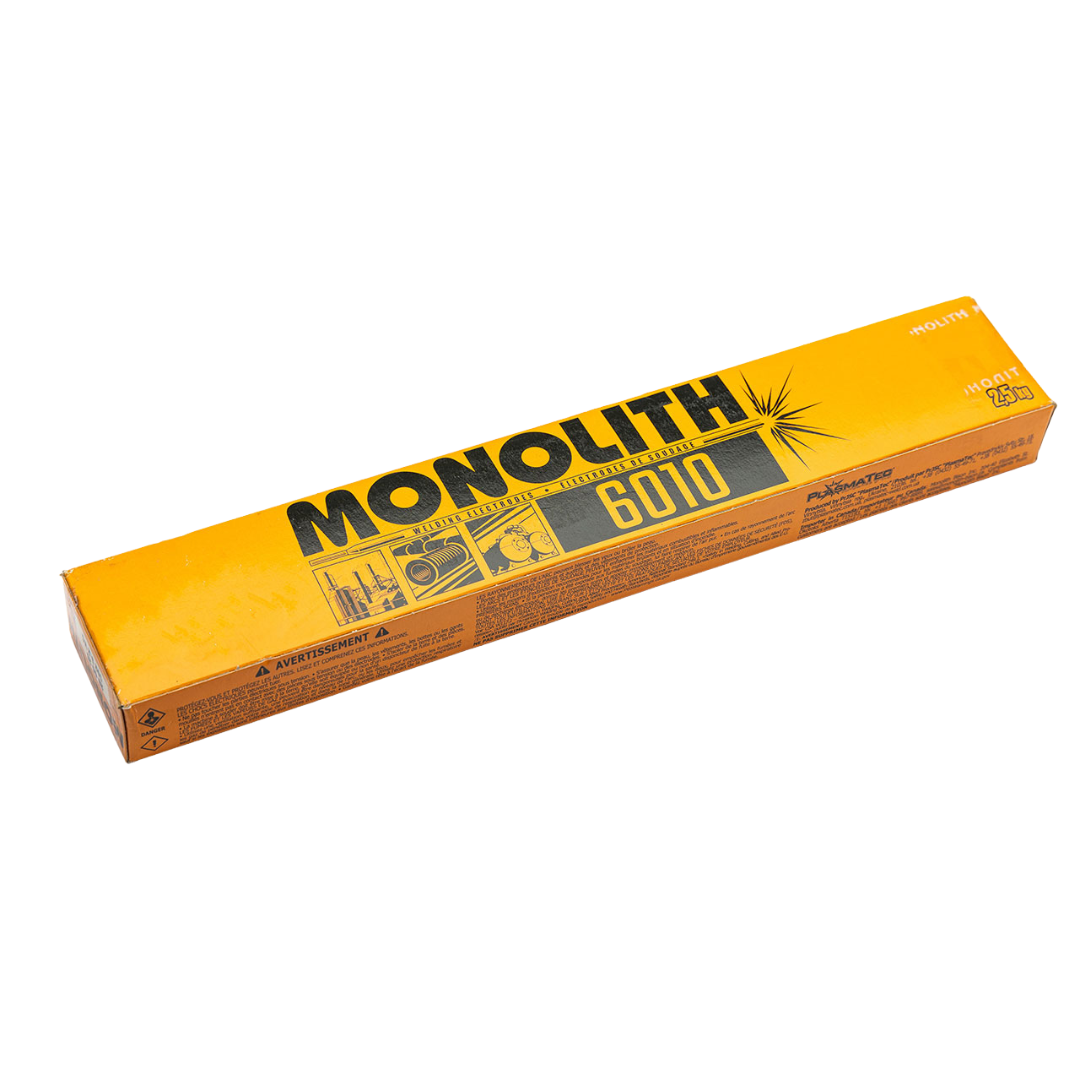

Monolith Е6010 Electrodes

Monolith Е6010 Electrodes

Meets specifications: AWS А5.1 / SFA-5.1: Е6010 | CSA W48: E4310 - CWB Approved

Specially designed for in-plant and cross-country pipe welding as well as welding in the sphere of shipbuilding construction, welding of general structures, bridges. Suitable for root run welding of pipelines of strength grades up to API 5LX80, as well as for filler and cover layers application for pipelines of strength grades up to API 5LX56

Special Properties

• Suitable for welding operation control in all special positions, provide deep arc penetration

• Effective for welding of moderately dirty, rust-covered or painted parts welding, which are difficult to be thoroughly cleaned before welding

• Characterized by high stability of arc burning, easy slag separation and excellent seam metal formation

• Recommended for welding of galvanized and coated steels

Packaging and Sizing

2.5 kg (5.5 lb) box & 5 kg (11 lb) box

• 3/32 (2.4) x 12" - MON-6010-332-2

• 1/8 (3.2) x 14" - MON-6010-18-25

• 5/32 (4.0) x 14" - MON-6010-532-5
