Miller Maxstar® 161STL 120-240 V Stick/TIG



Best of class - Provides maximum portability and performance in the most compact TIG/Stick packages in the industry. Dependability and performance all in one machine.

Top Features

  • Auto-Line Power Management Technology Allows for any input voltage hookup (120–240 V) with no manual linking, providing convenience in any job setting. Ideal solution for dirty or unreliable power.

  • Portable in the shop or at the jobsite — at 13 pounds, the handle/shoulder strap allows the end user to easily move from location to location.

  • No More "Sticky" Electrodes
    With Miller's Adaptive Hot Start™ technology, you no longer have to worry about those difficult-to-strike electrodes

  • Lift-Arc™ provides TIG arc initiation without the use of high frequency

Technical Specs

Product Name // Part Number Maxstar® 161 STL 120-240 V // 907710
Input Voltage 110/115/120 V
220/230/240 V
Input Current (120V)

60 A at 22.4 VDC, 100% duty cycle - 14.68A (Stick)
90 A at 23.6 VDC, 30% duty cycle - 23.16A (Stick)

90 A at 13.6 VDC, 100% duty cycle -14.61 (TIG)
130 A at 15.2 VDC, 30% duty cycle - 22.6
Input Current (240V) 110 A at 24.4 VDC,100% duty cycle -14.31A (Stick)
160 A at 26.4 VDC, 20% duty cycle - 22.55A (Stick)

110 A at 14.4 VDC, 100% duty cycle - 9.35A (TIG)
160 A at 16.4 VDC, 20% duty cycle - 15.05 (TIG)
Dimensions
 H: 10.3 in. (262 mm)
W: 5.6 in. (142 mm)
D: 13.5 in. (343 mm)
Weight 13 lb

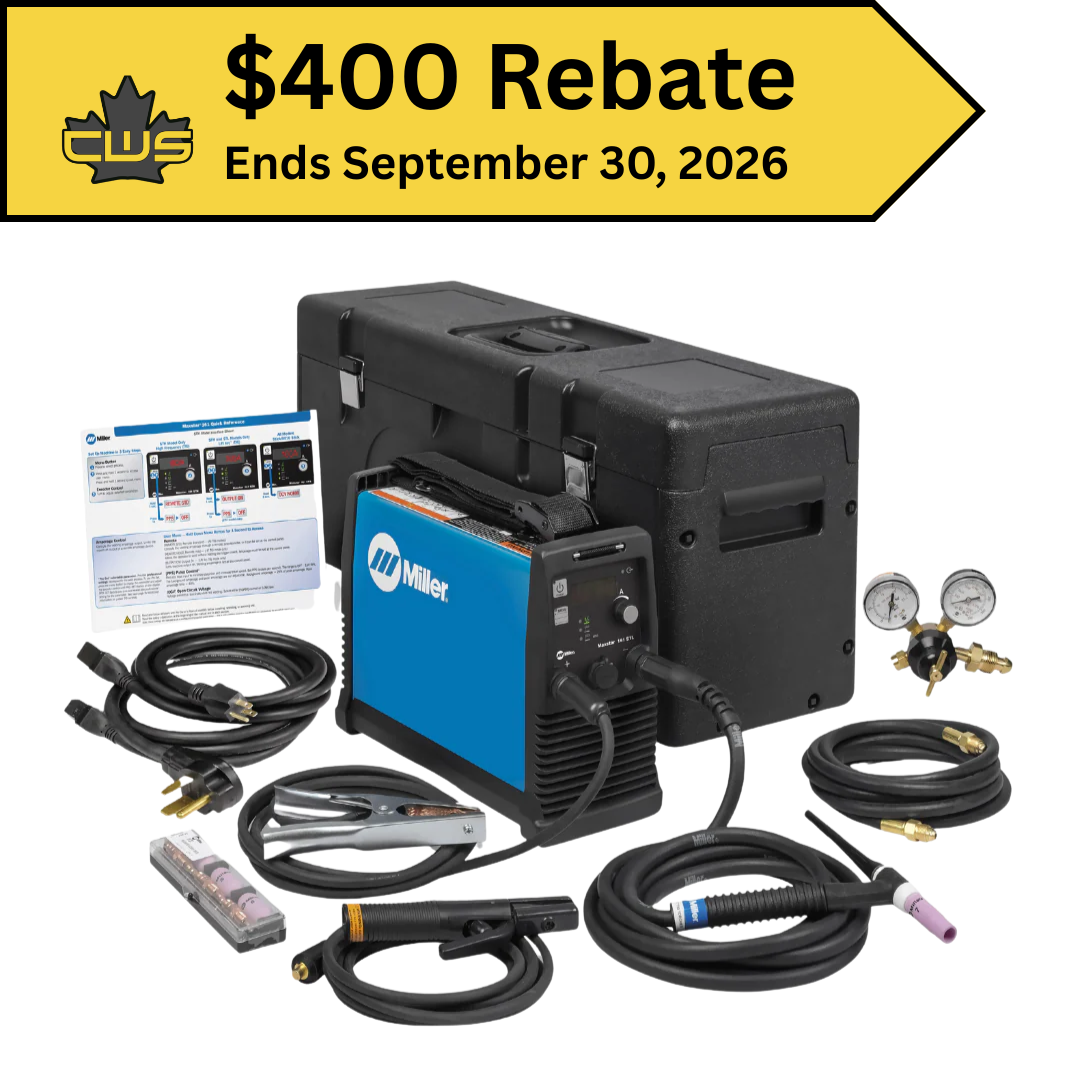

What's Included

  • Maxstar® 161 STL
  • 6.5 ft. (2 m.) primary cords for 120 V and 240 V
  • 13 ft. (4 m.) stick electrode holder with 25 mm. Dinse-style connector
  • 10 ft. (3 m.) work clamp with 25 mm. Dinse-stlye connector
  • Adjustable handle/shoulder strap
  • X-CASE™
  • A-150 TIG torch
  • Gas regulator with hose
  • AK2C torch accessory kit
